Onkyo HT-S3910 User Manual

26
Front Panel≫ Rear Panel≫ Remote≫
Contents
≫
Connections
≫
Playback
≫
Setup
≫
 5.1 Channel System
12
34
5
6

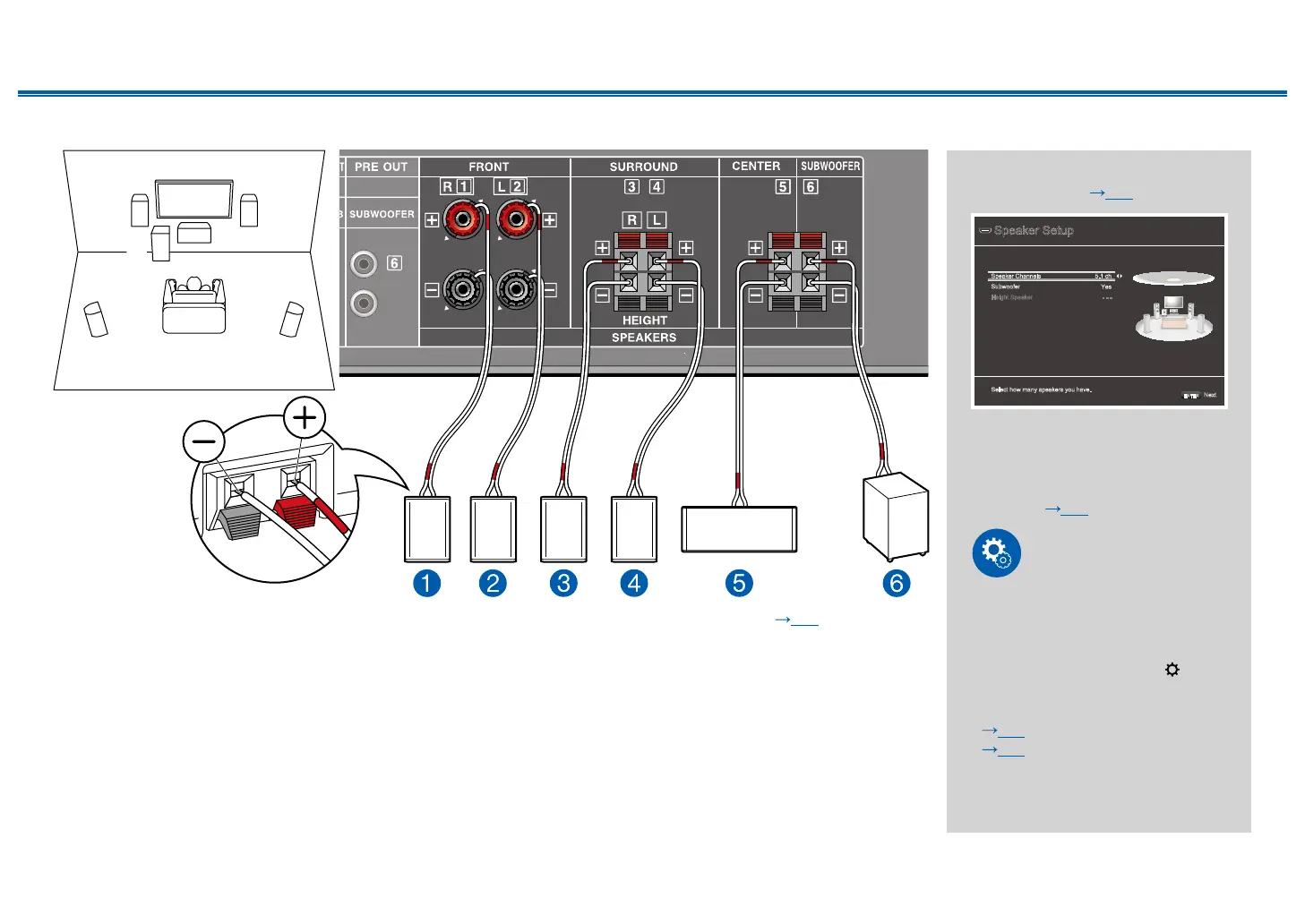

This is a basic 5.1 Channel System. For details of the speaker layout, refer to "Speaker Installation" ( p20).
 "Speaker Setup" settings during
Initial Setup ( p84)
Speaker Setup
Select how many speakers you have.
Next
ENTER
Speaker Channels 5.1 ch
Yes
Subwoofer
- - -Height Speaker
• Speaker Channels: 5.1 ch
• Subwoofer: Yes
• Height Speaker: ---
• Speaker Impedance: Set any
value ( p25)
Setup
In order to optimize the sound eld
effect, some settings must be made
in the Setup menu after the Initial
Setup is completed. Press on
the remote controller, then set
"2. Speaker" - "Distance"
( p72) and "Level Calibration"
( p73).
