 3.1.2 Channel System
12
6
34
5

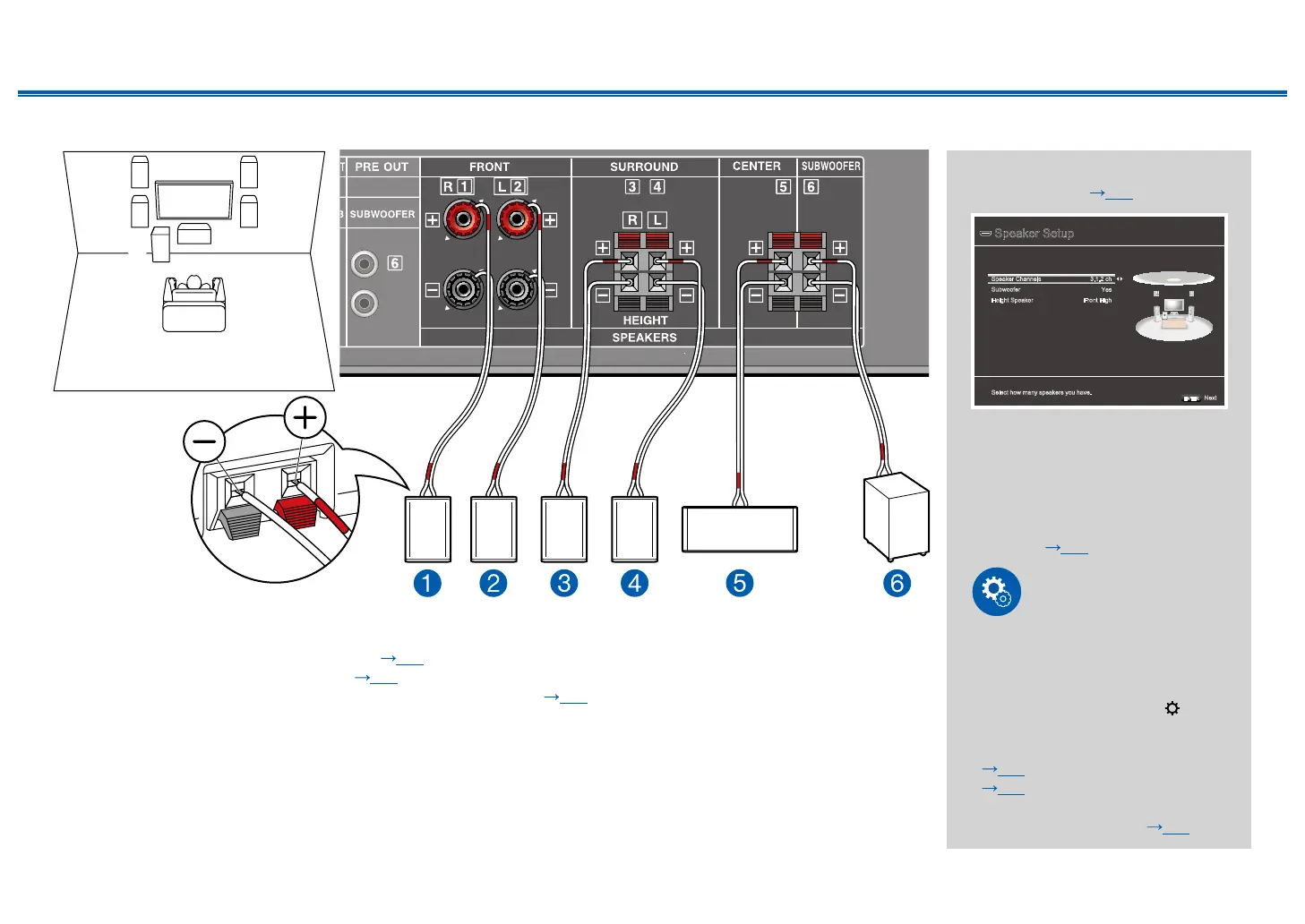

This is a combination of the 3.1 Channel System and front high speakers. A front high speaker is a type of height speaker.
You can select only one set of height speakers from the following three types for connection.
❏ Front High Speakers Installation Example ( p22)
❏ Ceiling Speakers Installation Example ( p23)
❏ Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p24)
 "Speaker Setup" settings during
Initial Setup ( p84)
Speaker Setup
Select how many speakers you have.
Next
ENTER
Speaker Channels 3.1.2 ch
Yes
Subwoofer
Front HighHeight Speaker
• Speaker Channels: 3.1.2 ch
• Subwoofer: Yes
• Height Speaker: Select the
type of height speaker actually
installed.
• Speaker Impedance: Set any
value ( p25)
Setup
In order to optimize the sound eld
effect, some settings must be made
in the Setup menu after the Initial
Setup is completed. Press on
the remote controller, then set
"2. Speaker" - "Distance"
( p72) and "Level Calibration"
( p73).When using separately
sold speakers, also set "2.
Speaker" - "Crossover"( p71).

Onkyo HT-S3910 Specifications

General

Disc types supported	No
Optical disc player type	Not included
3D	Yes
Video formats supported	-
Audio decoders	DTS:X, Dolby Atmos
RMS rated power	155 W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	109 dB
Total Harmonic Distortion (THD)	10 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Front speaker type	2-way
Front speaker impedance	6 Ω
Front speakers RMS power	150 W
Front speaker frequency range	80 - 20000 Hz
Front speaker woofer diameter (imperial)	3 \
Satellite speaker frequency range	80 - 2000 Hz
Subwoofer frequency range	28 - 5000 Hz
Subwoofer driver diameter (imperial)	6.3 \
Product color	Black
HDMI in	4
SCART ports quantity	0
Number of HDMI outputs	1
Package depth	435 mm
Package width	535 mm
Package height	675 mm
Package weight	19000 g
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	445 W

Weight and Dimensions

Subwoofer weight	4600 g
Center speaker weight	600 g
Subwoofer dimensions (WxDxH)	230 x 331 x 389 mm
Front speaker dimensions (WxDxH)	98.5 x 106 x 140.5 mm
Center speaker dimensions (WxDxH)	244 x 102 x 96 mm
