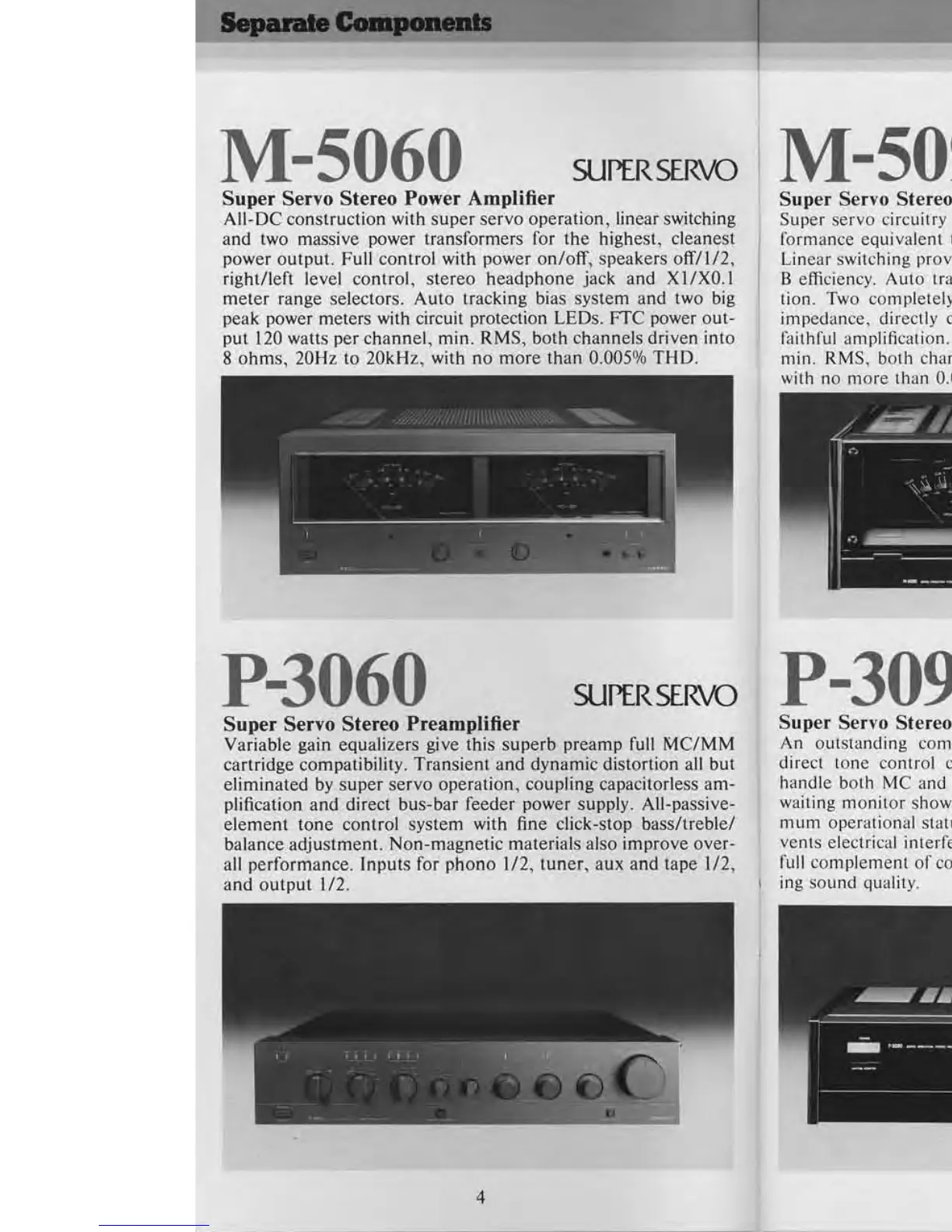

Onkyo M-5060 Instruction Manual

n/X*506{}
SI.IPERSERVO
Super
Servo
Stereo Power Amplifier
All-DC construction
with
super servo
operation,
linear
switching
and two massive
power
transformers
for the
highest,
cleanest
power
output.
Full
control
with
power
on/off, speakers
off/l/2,
right/left
level control, stereo headphone
jack
and Xl/X0.1
meter range
selectors.
Auto tracking bias system
and two big
peak power
meters
with
circuit
protection
LEDs.
FTC
power
out-
put
120
watts
per
channel, min. RMS, both
channels
driven
into
8
ohms, 20Hz to 20kHz,
with no more than
0.0050/o
THD.
P*{}6ü
SI.II'T,RSERVO
Super Servo
Stereo Preamplifier
Variable
gain
equalizers
give
this superb
preamp
full MC/MM
cartridge
compatibility.
Transient and dynamic distortion all
but
eliminated by super servo operation,
coupling capacitorless am-
plification
and direct bus-bar
feeder
power
supply. All-passive-
element
tone
control
system with fine
click-stop
bass/treble/
balance
adjustment.
Non-magnetic
materials also improve over-
all
performance.
Inputs for
phono
l/2,
tuner,
aux
and tape l/2,
and
output
1/2.
wx-5{}9{}
STIPERSERVO
Super
Servo Stereo
Power Amplifier
Super
servo
circuitry
assures excellent sonic definition and
per-
formance equivalent
to
having
a 100
times larger
power
supply.
Linear
switching
provides
the low distortion of class A
with
class
B
efficiency.
Auto tracking bias
guarantees
highly
stable opera-
tion. Two completely
independent
power
supplies and a
low-
impedance, directly coupled circuit configuration
assure highly
faithful amplification.
FTC
power
output 200
watts
per
channel,
min. RMS, both
channels driven into 8 ohms, 20Hz
to 20kHz,
with no more than 0.010/o
THD.
p*3w9{}
SI.IPERSERVO
Super
Servo Stereo Preamplifier
An
outstanding component featuring
super servo
operation,
direct tone
control circuitry and a variable
gain
equalizer to
handle
both MC
and MM
type
cartridges. A unique front
panel
waiting monitor
shows
when the
amp has warmed up to its
opti-
mum operational
status. The directly coupled
power
supply
pre-
vents
electrical interlerence
between each section
of
the
amp. A
full complement
ol controls
permits
complete freedom
in adjust-
ing sound
quality.
