Onkyo T-405X User Manual

11
Before Using
Connections
Other Information
Operation

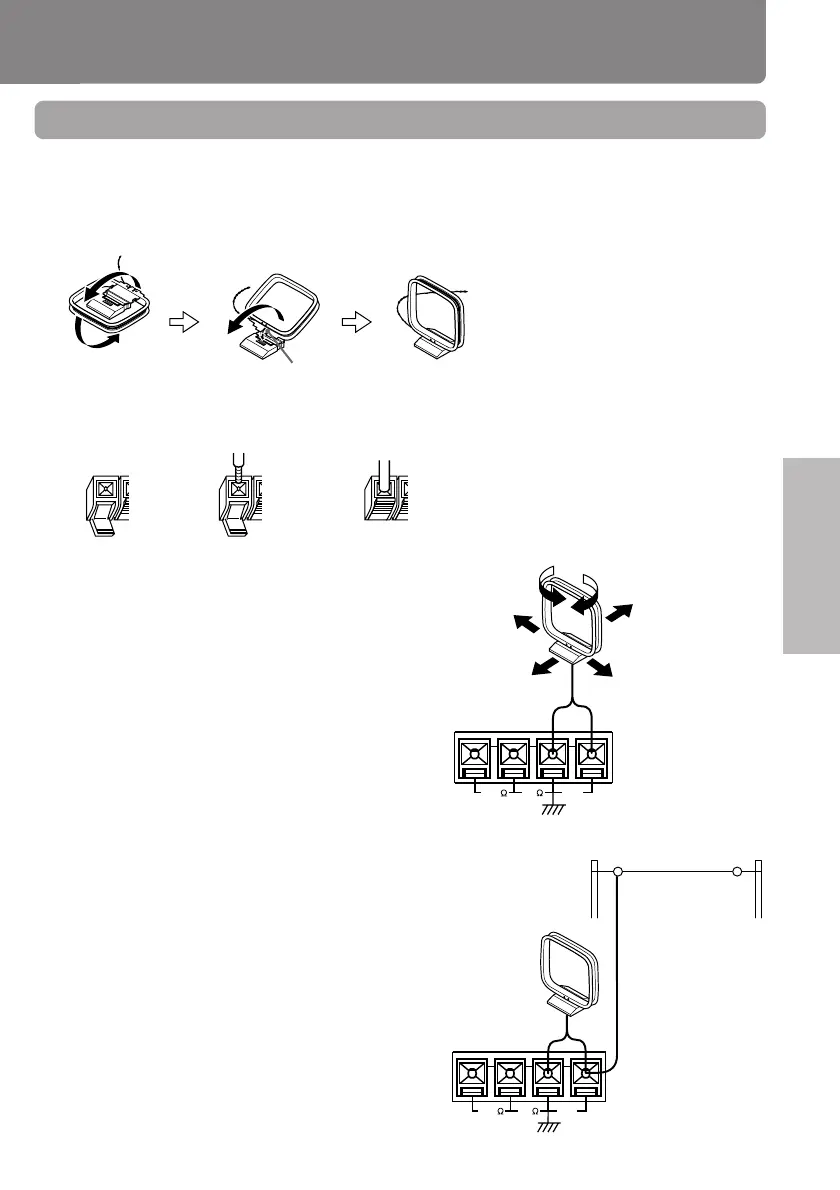

Connecting the AM antenna (U.S. and Canadian models only)
• AM reception is available only on the U.S. and Canadian models.
Assembling the AM loop antenna
Assemble the loop antenna as shown in the illustration.
Insert into the hole.
Connecting the antenna cable
1. Open the lever. 2. Insert the wire.
3. Close the lever.
Connecting the AM loop antenna
The AM loop antenna is for indoor use only. Set it
in the direction and position where you receive
the clearest sound. Put it as far as possible away
from this unit, TV, speaker cables, and power
cords.
ANTENNA
FM
AM
75
300
Connecting an AM outdoor antenna
When reception is not satisfactory with the
supplied AM loop antenna alone, connection of
an outdoor antenna is recommended.
The outdoor antenna will be more effective if it is
stretched horizontally above a window or outside.
• Do not remove the AM loop antenna.
• To avoid the risk of lightning and electrical
shock, grounding is necessary. Follow item 19
of the “Important Safeguards” on page 3 when
you install the outdoor antenna.
Outdoor
antenna
ANTENNA
FM
AM
75
300

Onkyo T-405X Specifications

FM Specifications

FM tuning range (U.S. & Canadian models)	87.90 – 107.90 MHz, 200 kHz steps
FM tuning range (Other area models)	87.50 – 108.00 MHz, 50 kHz steps
FM usable sensitivity (Mono)	12.8 dBf 1.2 µV, 75 Ohms IHF
FM usable sensitivity (Stereo)	19.2 dBf 2.5 µV, 75 Ohms IHF
FM 50dB quieting sensitivity (Mono)	18.0 dBf 2.2 µV, 75 Ohms
FM 50dB quieting sensitivity (Stereo)	38.0 dBf 22 µV, 75 Ohms
FM capture ratio	1.5 dB
FM image rejection ratio	85 dB
FM IF rejection ratio	90 dB
FM signal-to-noise ratio (Mono)	73 dB IHF
FM signal-to-noise ratio (Stereo)	66 dB IHF
FM selectivity	50 dB DIN (±300 kHz, 40 kHz dev.)
FM AM suppression ratio	50 dB
FM total harmonic distortion (Mono)	0.5%
FM total harmonic distortion (Stereo)	0.8%
FM frequency response	30 – 15, 000 Hz (±1.5 dB)
FM stereo separation	40 dB at 1 kHz, 30 dB at 70 – 10, 000 Hz
FM output level (U.S. & Canadian models)	0.5 V
FM output level (Other area models)	0.75 V
FM muting level	17.2 dBf 2.0 µV, 75 Ohms

AM Specifications

AM tuning range	530 – 1, 710 kHz, 10 kHz steps
AM usable sensitivity	30 µV
AM image rejection ratio	30 dB
AM IF rejection ratio	40 dB
AM signal-to-noise ratio	40 dB
AM total harmonic distortion	0.8%
AM output level	0.15 V

General Specifications

Power supply (AC 120 V)	60 Hz
Power supply (AC 230 V)	50 Hz
Power consumption	9 W
Dimensions	205 × 76 × 279 mm
Dimensions (inches)	8-1/16" × 3" × 11"
Weight	1.7 kg
Weight (lbs)	3.7 lbs.
