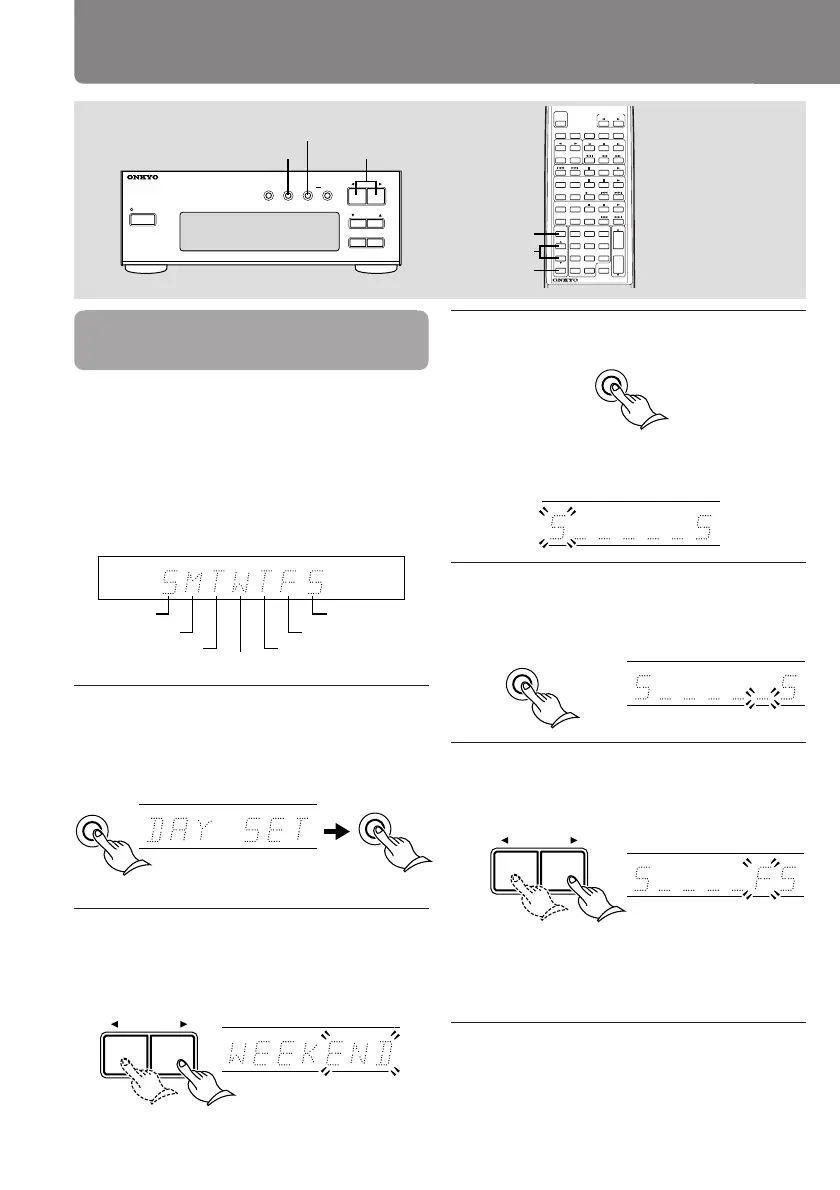

Changing the WEEKDAY and
WEEKEND settings
You can define or change which day is WEEKDAY
or WEEKEND. You can also define the day as both
WEEKDAY and WEEKEND in order to program two
timer settings on the same day.
The initial factory settings are:
WEEKDAY : Monday – Friday
WEEKEND : Saturday and Sunday
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
1 Press the TIMER button repeatedly
until “DAY SET” appears on the dis-
play, then press the MEMORY but-
ton.
MEMORY
TIMER
2 Press the PRESET √ or ® button to
select “WEEKEND” or “WEEKDAY”.
“END” or “DAY” flashes.
PRESET
3 Press the MEMORY button.
MEMORY
The current WEEKDAY or WEEKEND setting
will be displayed.
4 Press the MEMORY button repeat-
edly until the desired day of the
week flashes.
MEMORY
5 Press the PRESET √ or ® button to
display the desired day of the
week.
PRESET
Pressing the PRESET √ or ® button
repeatedly toggles between the day indication
and the bar cursor (
..... ).
6 Press the MEMORY button to con-
firm the selection.
When you press the MEMORY button while
the character or bar cursor at the right end is
flashing, the unit completes the setting.
The remote con-
troller comes with
the Onkyo A-905X
amplifier.
Using the timer

Onkyo T-405X Specifications

FM Specifications

FM tuning range (U.S. & Canadian models)	87.90 – 107.90 MHz, 200 kHz steps
FM tuning range (Other area models)	87.50 – 108.00 MHz, 50 kHz steps
FM usable sensitivity (Mono)	12.8 dBf 1.2 µV, 75 Ohms IHF
FM usable sensitivity (Stereo)	19.2 dBf 2.5 µV, 75 Ohms IHF
FM 50dB quieting sensitivity (Mono)	18.0 dBf 2.2 µV, 75 Ohms
FM 50dB quieting sensitivity (Stereo)	38.0 dBf 22 µV, 75 Ohms
FM capture ratio	1.5 dB
FM image rejection ratio	85 dB
FM IF rejection ratio	90 dB
FM signal-to-noise ratio (Mono)	73 dB IHF
FM signal-to-noise ratio (Stereo)	66 dB IHF
FM selectivity	50 dB DIN (±300 kHz, 40 kHz dev.)
FM AM suppression ratio	50 dB
FM total harmonic distortion (Mono)	0.5%
FM total harmonic distortion (Stereo)	0.8%
FM frequency response	30 – 15, 000 Hz (±1.5 dB)
FM stereo separation	40 dB at 1 kHz, 30 dB at 70 – 10, 000 Hz
FM output level (U.S. & Canadian models)	0.5 V
FM output level (Other area models)	0.75 V
FM muting level	17.2 dBf 2.0 µV, 75 Ohms

AM Specifications

AM tuning range	530 – 1, 710 kHz, 10 kHz steps
AM usable sensitivity	30 µV
AM image rejection ratio	30 dB
AM IF rejection ratio	40 dB
AM signal-to-noise ratio	40 dB
AM total harmonic distortion	0.8%
AM output level	0.15 V

General Specifications

Power supply (AC 120 V)	60 Hz
Power supply (AC 230 V)	50 Hz
Power consumption	9 W
Dimensions	205 × 76 × 279 mm
Dimensions (inches)	8-1/16" × 3" × 11"
Weight	1.7 kg
Weight (lbs)	3.7 lbs.
