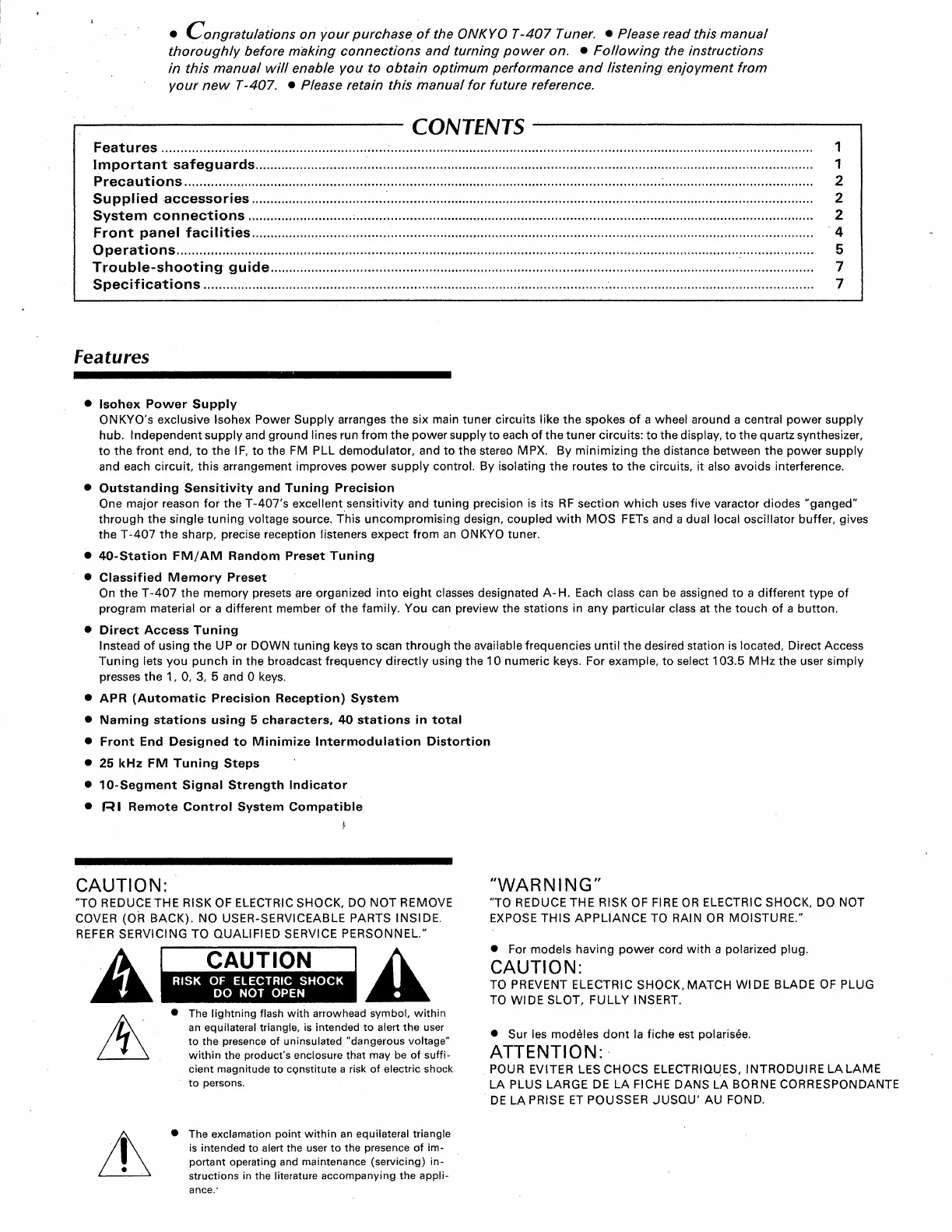

Onkyo T-407 User Manual

o
Congratulations
on
your purchase
of the
ONKYO T-407
Tuner.
.
Please read this manual
thoroughly before making connections
and turning
power
on.
.
Following the instructions
in this manual will enable
you
to obtain optimum
performance
and
listening
enjoyment from
your
new T-407,
o
Please retain this manual for future
reference.
CONTENTS
lmportant
safeguards
Features..
Supplied
accessories
System
connect¡ons
.................
Front
panel
facilities
Operations
Trouble-shooting
9uide...........
Specif
ications
Features
a
lsohex
Power
Supply
ONKYO's
exclusive lsohex
Power Supply arranges
the six ma¡n
tuner circuits
like
the
spokes
of
a wheel
around a central
power
supply
hub.
lndependentsupplyandgroundlinesrunfromthepowersupplytoeachofthetunercircuits:tothedisplay,tothequartzsynthesizer,
to
the front end,
to
the lF, to the FM PLL demodulator. and to the stereo
MPX.
By minimizing the distance between the
power
supply
and each circuit, this arrangement
improves
power
supply control. By isolating
the
routes
to
the
circuits, it also avoids interference.
.
Outstanding Sensitivity
and Tuning
Precision
One
ma.jor reason for the T-407's excellent sensitivity and tuning
precision
is
its RF
section
which uses five varactor diodes
"ganged"
through
the
single tun¡ng
voltage
sorrc".
ihis
uncompromising
design, coupled with MOS FETs
and a dual local oscillator buffer,
gives
the
T-407
the sharp,
precise
reception
listeners
expect from an
ONKYO tuner.
.
O-Station
FM/AM Random
Preset
Tuning
.
Classified Memory Preset
On
the
T-407
the
memory
presets
are organized
into eight classes designated A-H. Each class can be assigned to a different
type of
program
material or a different member of the
family. You
can
preview
the stat¡ons
in any
particular
class at the touch of a button.
o
Direct
Access
Tuning
lnstead of
using
the UP
or DOWN
tuning
keys to scan through the available frequencies
until the
desired station is located, Direct Access
Tuning
lets
you punch
in
the broadcast
frequency
directly
using the 10 numeric
keys. For example, to select
103.5 MHz the user
simply
presses
the 1,
0, 3,
5
and 0
keys.
.
APR
(Automatic
Precision Reception) System
a
Naming stat¡ons using 5 characters, 40 stations in total
o
Front End Designed to Minimize lntermodulation
Distortion
o
25 kHz FM
Tuning
Steps
o
10-Segment
Sígnal Strength
lndicator
.
l:ll
Remote
Control
System Compatible
I
1
1
2
2
2
4
5
7
7
CAUTIO N:
"TO
REDUCE
THE RISK
OF
ELECTRIC
SHOCK,
DO NOT
REMOVE
COVER
(OR
BACK).
NO
USER.SERVICEABLE PARTS
INSIDE.
REFER
SERVICING
TO OUALIFIED
SERVICE
PERSONNEL."
o
The líghtning
flash
with
arrowhead symbol, w¡thin
an
equilateral
triangle,
¡s
intended to
alert the user
to the
presence
of un¡nsulated
"dangerous
voltage"
within
the
product's
enclosure thât may be of suffi-
c¡ent magnitude
to
cçnstitute a risk of electric shock
to
persons.
o
The exclamation
point
within an
equilateral triangle
is intended to alert the user to the
presence
of
im-
portant
operal¡ng and
maintenance
(servicing)
in-
structions
in the
literature accompany¡ng
the appli-
ance.'
"WARN
¡NG"
"TO
REDUCE
THE RISK
OF FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO BAIN
OR
MOISTURE."
a
For models having
power
cord wlth a
polarized plug.
CAUTIO
N:
TO PREVENT ELECTRIC
SHOCK,MATCH
WIDE
BLADE OF
PLUG
TO
WIDE
SLOT, FULLY INSERT.
o
Sur
les modèles dont la
fiche
est
polarisée.
ATTENTI O N:
POUR
EVITER
LESCHOCS ELECTRIOUES, INTRODUIRE
LALAME
LA PLUS LA.BGE DÊ
LA FICHE
DANS LA
BORNE CORRESPONDANTE
DE LA
PRISE ET POUSSER
JUSOU'
AU FOND.
CAUTION
w
