6

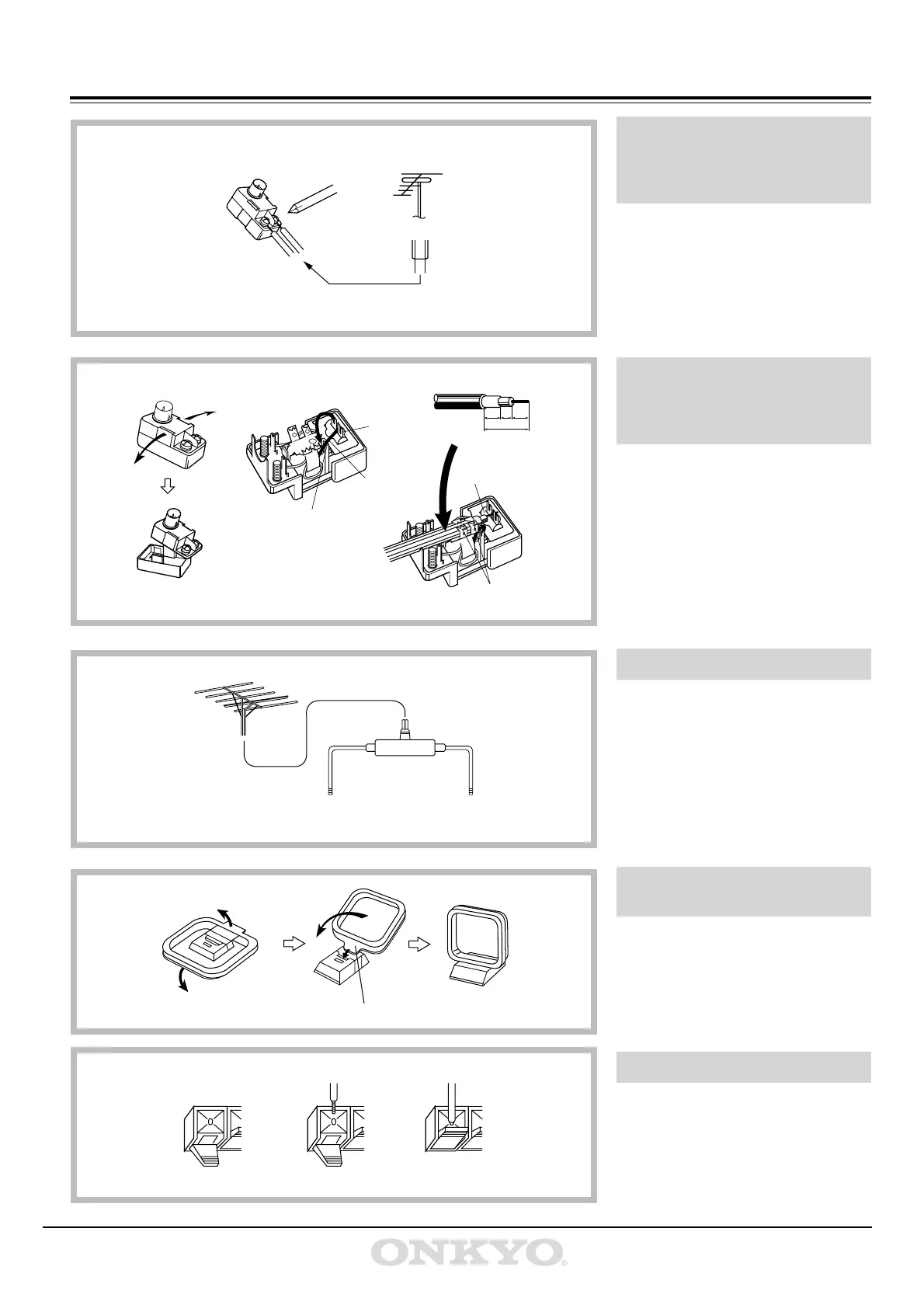

Antenna connections
Loosen the serews and wrap the wire around
these screws, Then tighten the screw with a
screwdriver.
1. With your fingernail or a small screw-
driver, press the stoppers outwardts and
remove the cover.
2. Remove the transformer wire A from slit
B and insert it into slit C.
3. Prepare the coaxial cable as shown in the
diagram. Connect the 75/300 ohm antenna
adaptor to the coaxial cable.
1 Insert the end of the cable.
2 Clamp it in place with pliers.
Do not use the same antenna for both FM and
TV (or VCR) reception since the FM and TV
(or VCR) signals can interfere with each
other. If you must use a common FM/TV (or
VCR) antenna, use a directional linkage type
splitter.
Assemble the loop antenna as shown in the
illustration.
1. Press down the lever.
2. Insert wire.
3. Return the lever.
Connecting the 300 ohm
ribbon wire to the 75/300 ohm
adaptor (for models other than
European models)
Connecting the coaxial cable
to the 75/300 ohm adaptor
(for models other than
European models)
Directional linkage
Assembling the AM loop
antenna
Connecting the antenna cable
FM/TV
Outdoor
Antenna
300 ohm
ribbon wire
✦
✦
✦
✦
✦
✦
✦
✦
✦
✦
✦
6
mm
3
mm
6
mm
15mm
2
1
Slit C
Slit B
Wire A
123
To Tuner
Directional linkage
type slitter
To TV (or VCR)
Insert into the hole.
123
To Next Page
