Onkyo TA-2130 - IC Block Diagram

TA-2130

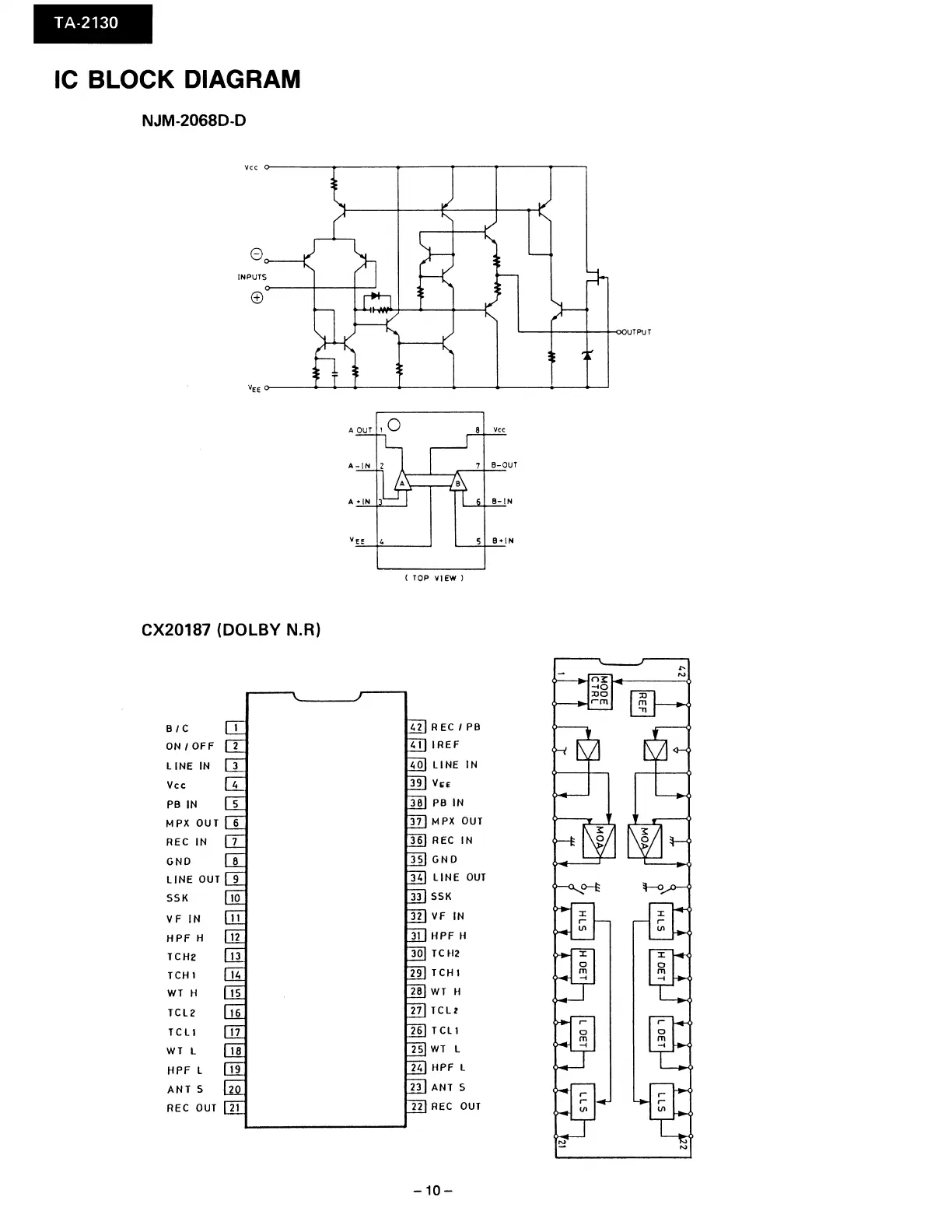

IC BLOCK DIAGRAM
NJM-2068D-D
S)
INPUTS
®
UTPUT
( TOP VIEW )
CX20187 (DOLBY N.R)
BIC 1 42|REC/ PB
ON/OFF [2 | IREF
LINE IN [3 | LINE IN
Vcc 4 139] Vee
PB IN | 5 | 138) PB IN
MPX OUT [ 6 | MPX OUT
REC IN 136] REC IN
GND | 8 | '35] GNO
LINE OUT[ 9 | LINE OUT
SSK 10 | 133] SSK
VF IN [11 32) VF IN
HPF H [12] 31) HPF H
TCH2
13
|
30}
TCH2
TCH} 29] TCH1
WT H L145 WT H
TCL2 16 | TCL2
TCU 26] TCL
WIL 18) WT L
HPF
Lt
[19]
HPF
L
ANT S /23|] ANT S
REC OUT | 21) 122] REC OUT
—~10—
