Onkyo TA-2130 Service Manual

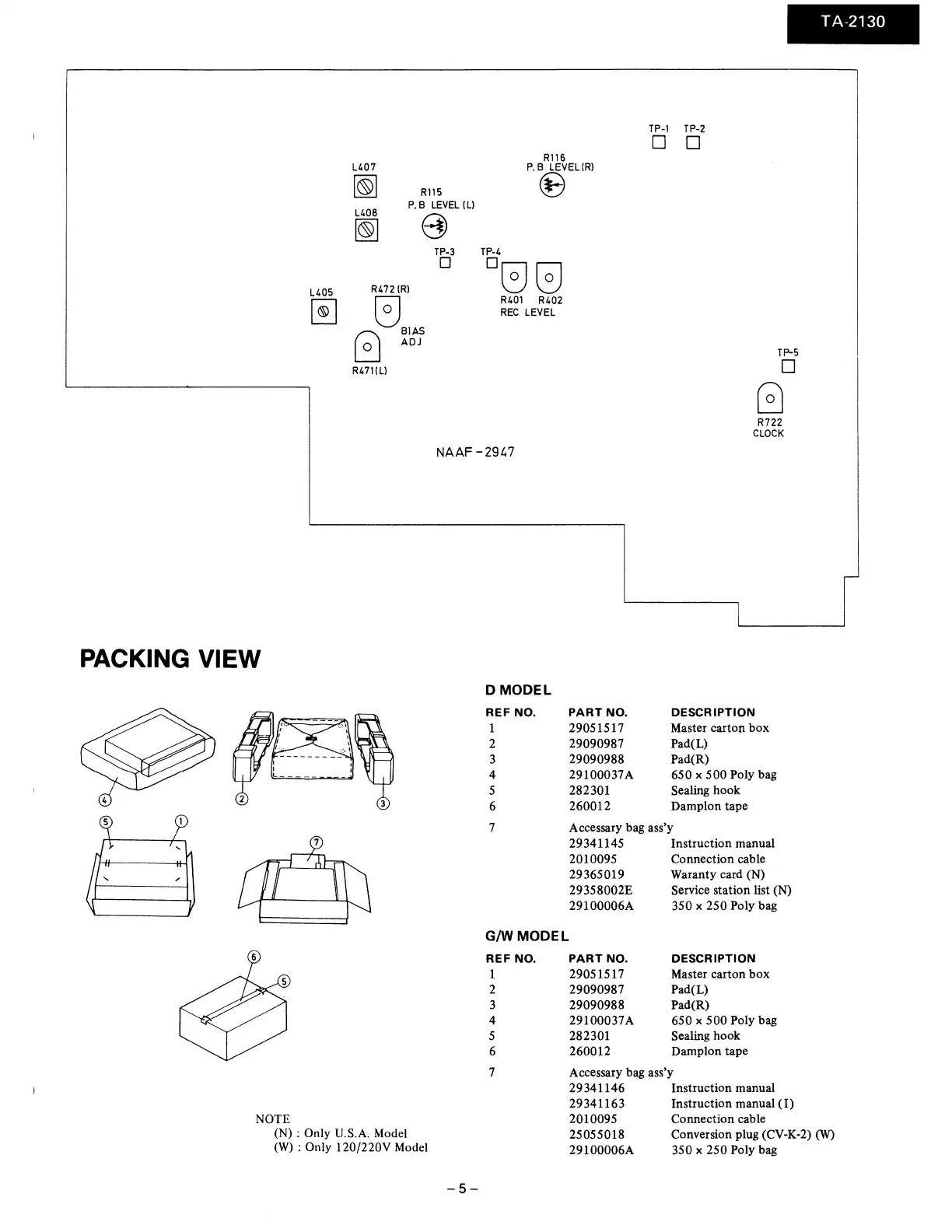

PACKING VIEW
TA-2130
TP-1 TP-2
O oO
R116
L407 P.B LEVEL(R)
Riis
L408 P.B LEVEL (L)
TP-3 TP-4
R472 (R)
L40s R401 R402
REC LEVEL
BIAS
AOJ
(0) TP-5
R47HL) L]
R722
CLOCK
NAAF -2947
D MODEL
REF NO. PART NO. DESCRIPTION
7 1 29051517 Master carton box
. 2 29090987 Pad(L)
aS 3 29090988 Pad(R)
} 4 29100037A 650 x 500 Poly bag
5 282301 Sealing hook
6 260012 Damplon tape
7 Accessary bag ass’y
29341145 Instruction manual
2010095 Connection cable
29365019 Waranty card (N)
29358002E Service station list (N)
29100006A 350 x 250 Poly bag
G/W MODEL
REF NO. PART NO. DESCRIPTION
1 29051517 Master carton box
2 29090987 Pad(L)
3 29090988 Pad(R)
4 29100037A 650 x 500 Poly bag
5 282301 Sealing hook
6 260012 Damplon tape
7 Accessary bag ass’y
29341146 Instruction manual
29341163 Instruction manual (1)
NOTE 2010095 Connection cable
(N) : Only U.S.A. Model 25055018 Conversion plug (CV-K-2) (W)
(W) : Only 120/220V Model 29100006A 350 x 250 Poly bag
