HA12167FB/HA12169FB
5

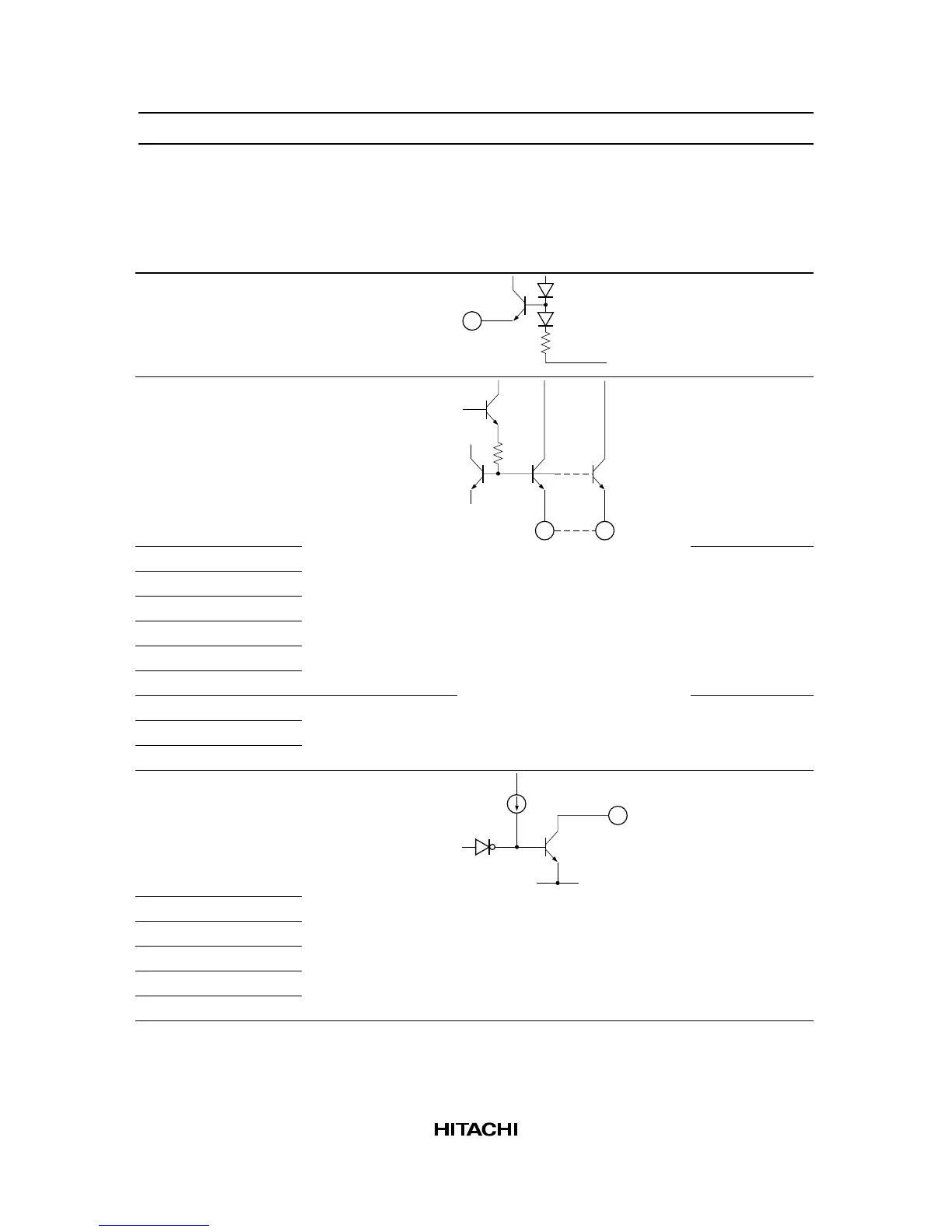

Pin Description (V
CC
= 14 V, Ta = 25°C, No signal, The value in the show typical
value.) (Cont)
Pin No.
(QFP-80)
Terminal
Name Zin DC Voltage Equivalent Circuit Description
64 BIAS — 0.28 V
GND
Dolby NR
reference current
input
14 IREF — 1.2 V EQ reference
current input
27 MF EQ parameter
26 fQ current input
25 f/Q
24 GH
23 GL
22 GP
35 BIAS ADJ (N) — 1.2 V Bias DAC
36 BIAS ADJ (M) parameter current
37 BIAS ADJ (C) input
21 HM — —
GND
EQ parameter
selector
20 HC
19 HN
18 NM
17 NC
16 NN
