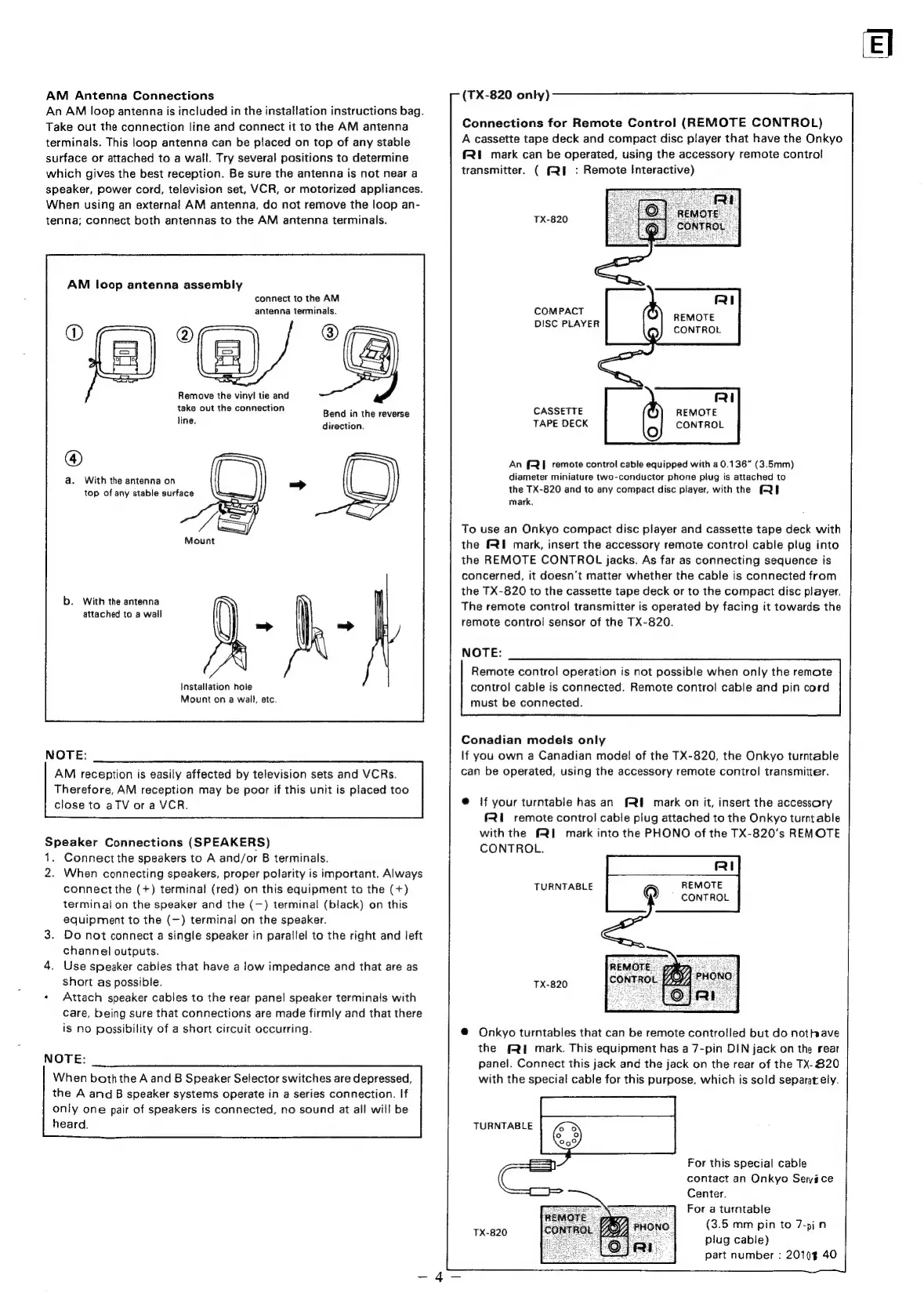

AM Antenna Connections
An AM loop antenna is included in the installation instructions bag.
Take out the connection line and connect it to the AM antenna
terminals. This {oop antenna can be placed on top of any stable
surface or attached to a wall. Try several positions to determine
which gives the best reception. Be sure the antenna is not near a
speaker, power cord, television set, VCR, or motorized appliances.
When using an externa! AM antenna, do not remove the loop an-
tenna; connect both antennas to the AM antenna terminals.
AM loop antenna assembly
connect to the AM
antenna terminals.
Remove the vinyl tie and
take out the connection
ni Bend in the reverse
line.
direction.
a. With the antenna on
top of any stable surface
b. With the antenna
attached to a wall
Installation hole
Mount on a wall, etc.
NOTE:
AM reception is easily affected by television sets and VCRs.
Therefore, AM reception may be poor if this unit is placed too
close to aTV or a VCR.
Speaker Connections (SPEAKERS)
1. Connect the speakers to A and/or B terminals.
2. When connecting speakers, proper polarity is important. Always
connect the (+) terminal (red) on this equipment to the (+)
terminal on the speaker and the (—) terminal (black) on this
equipment to the (—) terminal on the speaker.
3. Do not connect a single speaker in parallel to the right and left
channel outputs.
4. Use speaker cables that have a low impedance and that are as
short as possible.
« Attach speaker cables to the rear panel speaker terminals with
care, being sure that connections are made firmly and that there
is no possibility of a short circuit occurring.
NOTE:
When both the A and B Speaker Selector switches are depressed,
the A and B speaker systems operate in a series connection. If
only one pair of speakers is connected, no sound at all will be
heard.
(TX-820 only)
Connections for Remote Control (REMOTE CONTROL)
A cassette tape deck and compact disc player that have the Onkyo
fRI mark can be operated, using the accessory remote control
transmitter. ( f2] : Remote Interactive)
TX-820
Ri
Disc PLAYER nEMOTE
CONTROL
Ri
CASSETTE REMOTE
TAPE DECK CONTROL
An fQ | remote control cable equipped with a 0.136” (3.5mm)
diameter miniature two-conductor phone plug is attached to
the TX-820 and to any compact disc player, with the «Q}
mark.
To use an Onkyo compact disc player and cassette tape deck with
the FRI mark, insert the accessory remote control cable plug into
the REMOTE CONTROL jacks. As far as connecting sequence is
concerned, it doesn't matter whether the cable is connected from
the TX-820 to the cassette tape deck or to the compact disc player.
The remote control transmitter is operated by facing it towards the
remote control sensor of the TX-820.
NOTE:
Remote control operation is not possible when only the remote
control cable is connected. Remote control cable and pin cord
must be connected.
Conadian models only
If you own a Canadian model of the TX-820, the Onkyo turntable
can be operated, using the accessory remote control transmitter.
@ if your turntable has an fRI mark on it, insert the accessory
fR1_ remote contro! cable plug attached to the Onkyo turntable
with the fRI mark into the PHONO of the TX-820’s REMOTE
CONTROL.
REMOTE
CONTROL
TURNTABLE
TX-820
@ Onkyo turntables that can be remote controlled but do nothave
the (QI mark. This equipment has a 7-pin DIN jack on the rear
panel. Connect this jack and the jack on the rear of the Tx-820
with the special cable for this purpose, which is sold separat ely.
TURNTABLE as
For this special cable
contact an Onkyo Sewsce
Center.
For a turntable
(3.5 mm pin to 7-pi n
plug cable)
part number : 20104 40
