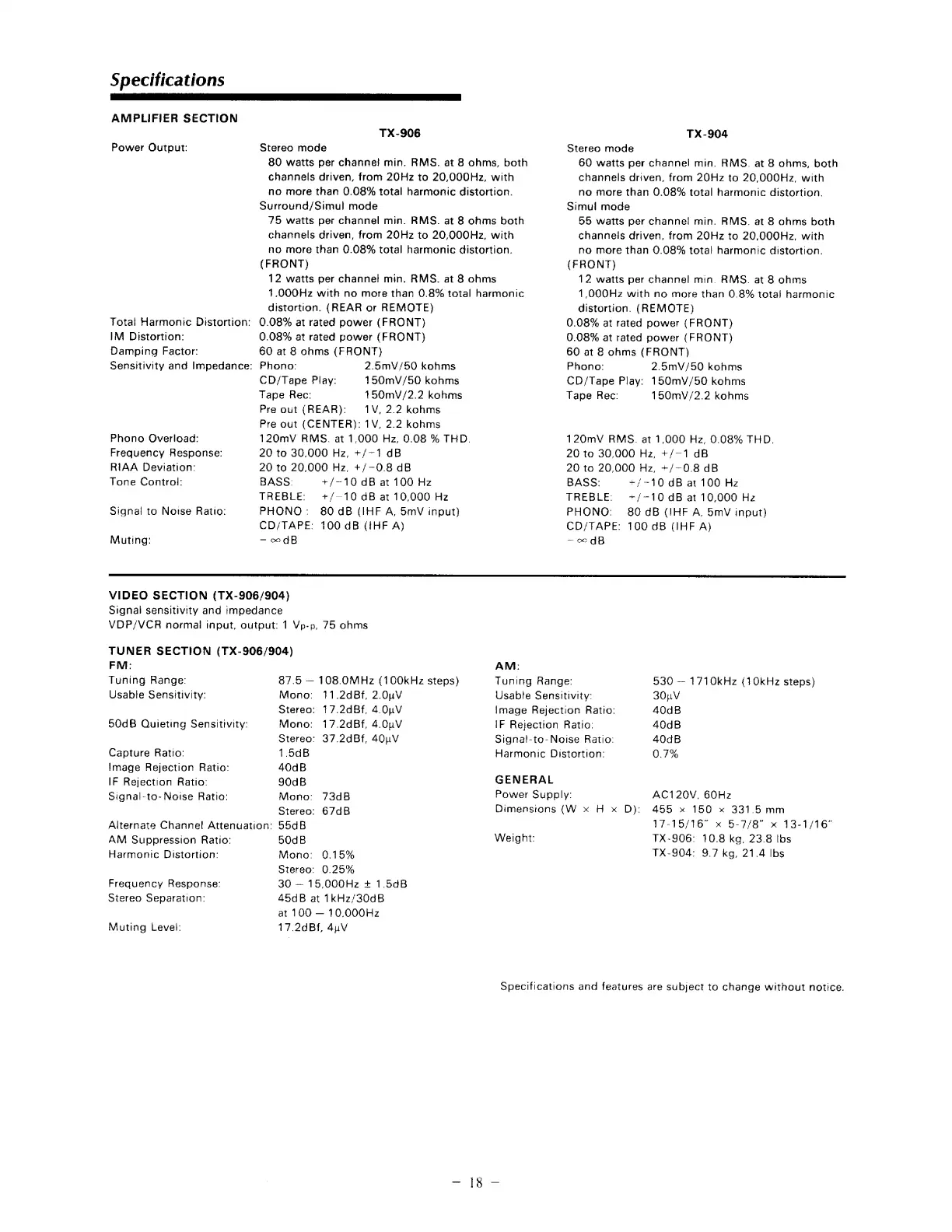

Specifications
AMPLIFIER SECTION
Power Output:
Total Harmonic Distortion:
IM Distortion:
Damping Factor:
Sensitivity and Impedance:
Phono Overload:
Frequency Response:
RIAA Deviation:
Fone Contro!}:
Signal to Notse Ratio:
Muting:
TX-906
Stereo mode
80 watts per channe! min. RMS. at 8 ohms, both
channels driven, from 20Hz to 20,000Hz, with
no more than 0.08% total harmonic distortion.
Surround/Simul mode
75 watts per channel min. RMS. at 8 ohms both
channels driven, from 20Hz to 20,000Hz, with
no more than 0.08% total harmonic distortion.
(FRONT)
12 watts per channel min. RMS. at 8 ohms
1,000Hz with no more than 0.8% total harmonic
distortion. (REAR or REMOTE)
0.08% at rated power (FRONT)
0.08% at rated power (FRONT)
60 at 8 ohms (FRONT)
Phono: 2.5mV/50 kohms
CD/Tape Play: 150mV/50 kohms
Tape Rec: 150mV/2.2 kohms
Pre out (REAR): 1V, 2.2 kohms
Pre out (CENTER): 1V, 2.2 kohms
120mV RMS. at 1,000 Hz, 0.08 % THD.
20 to 30,000 Hz, +/-1 dB
20 to 20,000 Hz, +/-0.8 dB
BASS: +/-10 dB at 100 Hz
TREBLE: +/-10 dB at 10,000 Hz
PHONO: 80 dB (IHF A, 5mV input)
CD/TAPE: 100 dB (tHF A)
-— co dB
TX-904
Stereo mode
60 watts per channel min. RMS. at 8 ohms, both
channels driven, from 20Hz to 20,000Hz, with
no more than 0.08% total harmonic distortion.
Simul mode
55 watts per channel min. RMS. at 8 ohms both
channeis driven, fram 20Hz to 20,000Hz, with
no more than 0.08% total harmonic distortion.
(FRONT)
12 watts per channel min. RMS. at 8 ohms
1,000Hz with no more than 0.8% total harmonic
distortion. (REMOTE)
0.08% at rated power (FRONT)
0.08% at rated power (FRONT)
60 at 8 ohms (FRONT)
Phono: 2.5mV/50 kohms
CD/Tape Play: 150mV/50 kohms
Tape Rec: 150mV/2.2 kohms
120mV RMS. at 1,000 Hz, 0.08% THD.
20 to 30,000 Hz, +/-1 dB
20 to 20,000 Hz, +/-0.8dB
BASS: +/-10 dB at 100 Hz
TREBLE: +/-10 dB at 10,000 Hz
PHONO: 80dB (IHF A, 5mV input)
CD/TAPE: 100 dB (IHF A)
—~ °° dB
VIDEO SECTION (TX-906/904)
Signal sensitivity and impedance
VDP/VCR normal input, output: 1 Vp-p, 75 ohms
TUNER SECTION (TX-906/904)
FM:
Tuning Range:
Usable Sensitivity:
50dB Quieting Sensitivity:
Capture Ratio:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to- Noise Ratia:
AM.
87.5 — 108.0MHz (100kHz steps)
Mono:
Stereo:
Mono:
Stereo:
1.5dB
40dB
90dB
Mono:
Stereo:
Alternate Channel Attenuation: 55dB
AM Suppression Ratio:
Harmontc Distortion:
Frequency Response:
Stereo Separation:
Muting Level:
50dB
Mono:
Stereo:
11.2dBf, 2.0nV
17.2dBf, 4.0pV
17.2dBf, 4.0nV
37.2dBf, 40uV
73dB
67dB
0.15%
0.25%
30 — 15,000Hz + 1.5dB
45dB at 1kHz/30dB
at 100 — 10,000Hz
17.2dBE, 4uV
Tuning Range:
Usable Sensitivity:
Image Rejection Ratio:
iF Rejection Ratio:
Signal-to-Noise Ratio:
Harmonic Distortion:
GENERAL
Power Supply:
Dimensions (W x H x D):
Weight:
530 — 1710kKHz (10kHz steps)
30uvV
40dB
40dB
40dB
0.7%
AC120V, 60Hz
455 x 150 « 331.5 mm
17-19/16" x 5-7/8" x 13-1/16"
TX-906: 10.8 kg, 23.8 lbs
TX-904: 3.7 kg, 21.4 Ibs
Specifications and features are subject to change without notice.
