125
Multi Zone—Continued

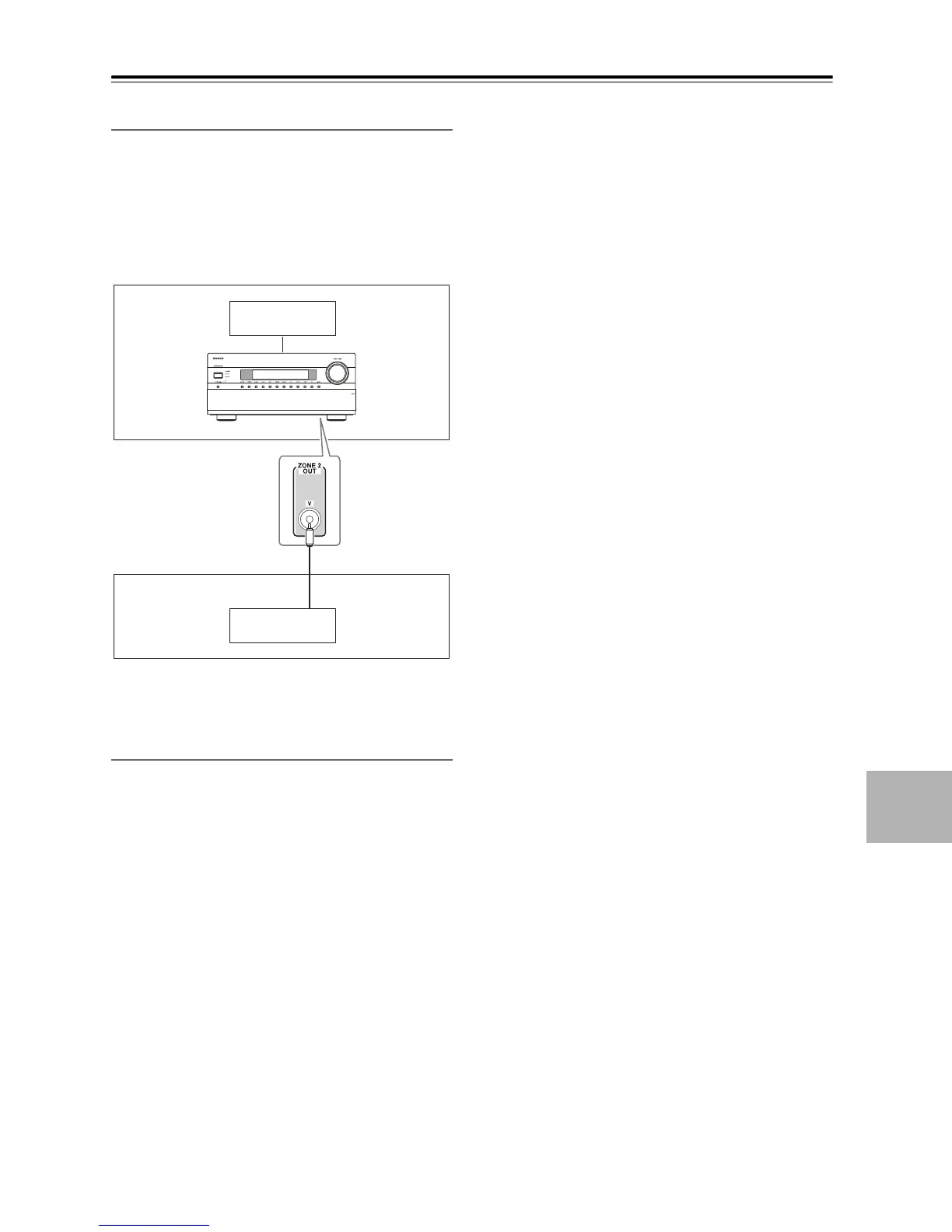

Zone 2 Video Output
The AV receiver features a composite video output for
connection to a TV in Zone 2, so you can enjoy both
audio and video in that zone.
Hookup
• Use a composite video cable to connect the AV
receiver’s ZONE 2 OUT V jack to a composite video
input on your Zone 2 TV.
Note:
The ZONE 2 OUT V jack outputs video from compo-
nents connected to composite video only.
Zone 2 12V Trigger
When Zone 2 is turned on, the output from the 12V
TRIGGER OUT ZONE 2 goes high (+12 volts, 150 mil-
liamperes max). Connecting this jack to a 12-volt trigger
input on a component in Zone 2 will make that compo-
nent turn on or off as and when Zone 2 is turned on or off
on the AV receiver.
Main room
TV
Zone 2
AV receiver
TV
