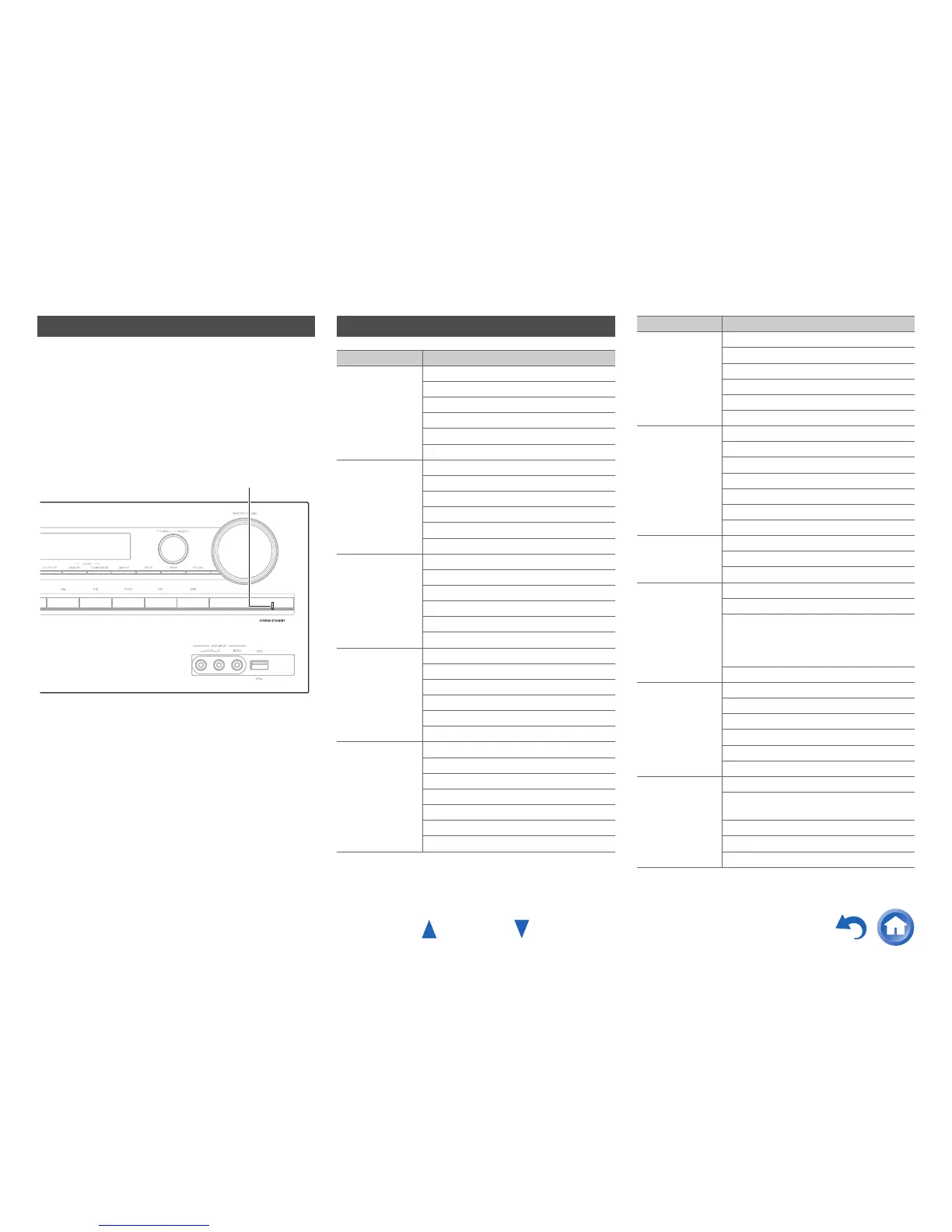

Onkyo TX-NR414 User Manual

Advanced Operations
En-42
By way of optimized circuitry, this function reduces power
consumption when the AV receiver is in standby mode.
The HYBRID STANDBY indicator will light in either of
the following conditions:
–“HDMI Through” is enabled and Zones are turned off
(the HDMI indicator is off).
–“Network Standby” is enabled and Zones are turned off
(the NET indicator is off).
About the HYBRID STANDBY indicator
HYBRID STANDBY
Setup menu items
Menu item Setting target
HDMI Input
(➔ page 43)
BD/DVD
CBL/SAT
GAME
PC
AUX
TV/CD
Component
(➔ page 43)
BD/DVD
CBL/SAT
GAME
PC
AUX
TV/CD
Digital Audio
(➔ page 44)
BD/DVD
CBL/SAT
GAME
PC
AUX
TV/CD
Sp Config
(➔ page 44)
Subwoofer
Front
Center
Surround
Crossover
Double Bass
Sp Distance
(➔ page 45)
Unit
Left
Center
Right
Surround Right
Surround Left
Subwoofer
Level Cal
(➔ page 45)
Left
Center
Right
Surround Right
Surround Left
Subwoofer
Audio Adjust
(➔ page 46)
Input Ch (Mux)
Input Ch (Mono)
Panorama
Dimension
Center Width
Center Image
Listening Angle
Source Setup
(➔ page 47)
A/V Sync
Name
Audio Selector [Fixed Mode]
Hardware
(➔ page 48)
Volume OSD
Remote ID
(North American and Taiwanese models)
AM/FM Freq Step
(European, Australian and Asian models)
AM Freq Step
Auto Standby
HDMI Setup
(➔ page 49)
HDMI Ctrl (RIHD)
HDMI Through
Audio TV Out
Audio Return Ch
LipSync
InstaPrevue [Sub Window, Position]
Network Setup
(➔ page 50)
MAC Address
DHCP [IP Address, Subnet Mask,
Gateway, DNS Server]
Proxy URL [Proxy Port]
Network Standby
Update Notice
Menu item Setting target

Onkyo TX-NR414 Specifications

General

Output impedance	2200 Ω
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	180 W
Dynamic power per channel (4 Ohm)	160 W
Dynamic power per channel (8 Ohm)	100 W
Power output per channel (1KHz@6 Ohm)	130 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	6
AC (power) in	Yes
Composite video in	5
USB ports quantity	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	RCA
Audio formats supported	AAC, FLAC, LPCM, MP3, OGG, WAV, WMA
Wi-Fi	No
RDS features	PS, PTY, RT, TP
AM band range	530 - 1.710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Supported video modes	1080i, 720p
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	400 W
Package weight	11500 g

Weight and Dimensions

Depth	328 mm
Width	435 mm
Height	173.5 mm
Weight	9000 g
