10
En
(North American, European, Australian and Asian models)
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c ETHERNET port
d FM ANTENNA jack and AM ANTENNA terminal
e PC IN jack
f HDMI IN and OUT jacks
g Power cord (North American, European,
Australian and Asian models)
h u REMOTE CONTROL jack
i Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, PC IN, TV/CD IN)
j MONITOR OUT V jack
k ZONE 2 LINE OUT jacks
l SUBWOOFER PRE OUT jacks
m UNIVERSAL PORT jack
n SPEAKERS terminals
(CENTER, FRONT, SURROUND, SURROUND
BACK or FRONT HIGH, ZONE 2)
o AC INLET (Taiwan models)

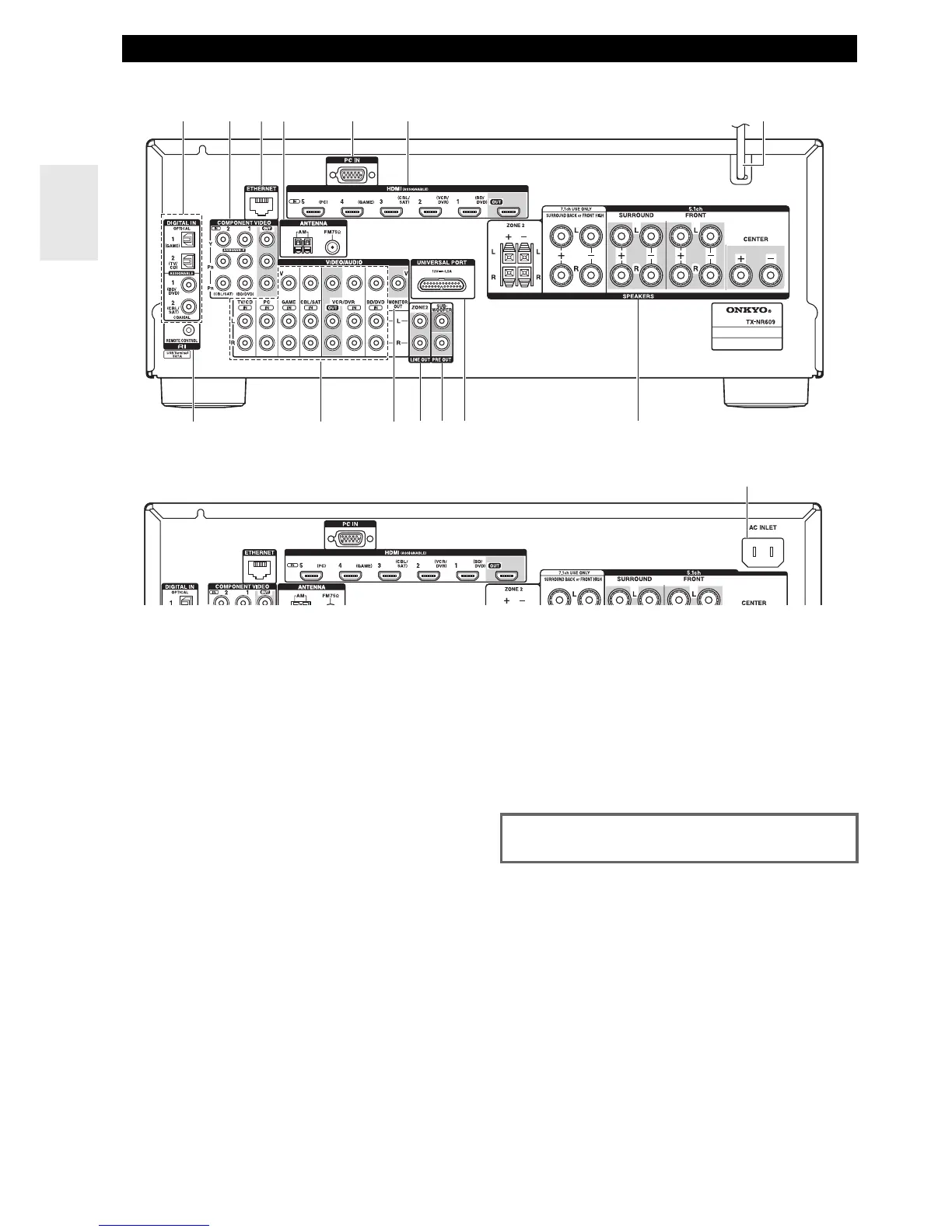

Rear Panel
ab
f
g
e
h
i
jklm
n
cd
o
(Taiwan models)
See “Connecting the AV Receiver” for connection
(➔ pages 12 to 21).
