Step5: Multi-zone Connection
TV
ZONE2
MAIN ROOM
1
1 HDMI cable
ZONE 2 TV

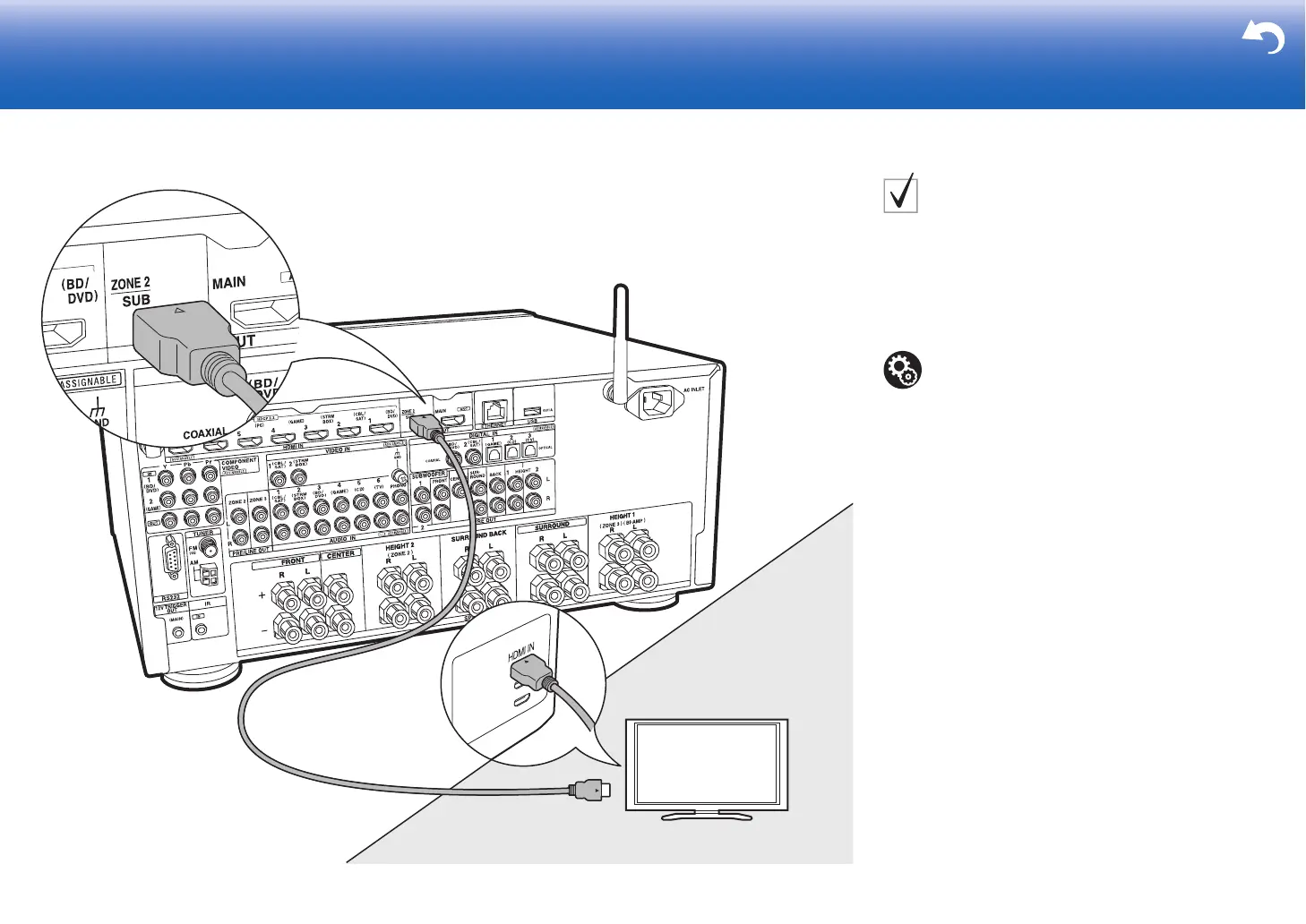

You can enjoy content from a Blu-ray Disc player on a TV
equipped with an HDMI input jack in the separate room
(ZONE 2) by playing a Blu-ray Disc player in the main
room (where this unit is located), or play the content from
another AV component. Only the video from devices
connected to the HDMI IN1 to IN5 jacks can be played on
the TV in the separate room.
Setup
0 Settings are required in Initial Setup, "4. Multi
Zone Setup" (
ÄP22) to enjoy this feature.
0
The audio from externally connected AV
components can only be played in ZONE 2 when the
audio is analog or 2ch PCM audio.
It may also be
necessary to convert the audio output of the AV
component to PCM output.

Onkyo TX-RZ1100 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	108 dB
Total Harmonic Distortion (THD)	0.04 %
Dynamic power per channel (3 Ohm)	320 W
Dynamic power per channel (4 Ohm)	270 W
Dynamic power per channel (8 Ohm)	160 W
AM band range	530 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Package weight	22500 g
Manual	Yes
Product color	Silver
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby TrueHD
HDMI in	8
Audio (L/R) in	7
USB ports quantity	1
Digital audio optical in	3
Component video (YPbPr/YCbCr) in	2

Weight and Dimensions

Depth	453 mm
Width	435 mm
Height	201 mm
Weight	19700 g
