Onkyo TX-RZ800

Schematic Diagram
5 4 3
2
1
6
D
C
A
B
D
C
A
B
5 4 3
2
1
6
DISPLAY(Power supply) SECTION
FLAC2
FLAC1
VH
+12V
+12V
-12V
-12V
GNDA
GNDA
GNDDG
GNDDG
GNDDG
C9306
47u
50V
C9304
47u
100V
C9305
47u
50V
P9302B
NPLG-5P133
12345
P9301
NPLG-5P119
12345
P9303B
NPLG-9P137
123456789
D9305
RL1N4003
D9304
RL1N4003
D9306
RL1N4003
D9303
RL1N4003
D9307
DZ2J220M0L
D9308
DZ2J220M0L
R9304
0
R9302
2.7k
R9303
33k
R9301
1
Q9302
2SC2881-Y
R9305
2.7k
R9306
8.2
J9308
BAPS-1794

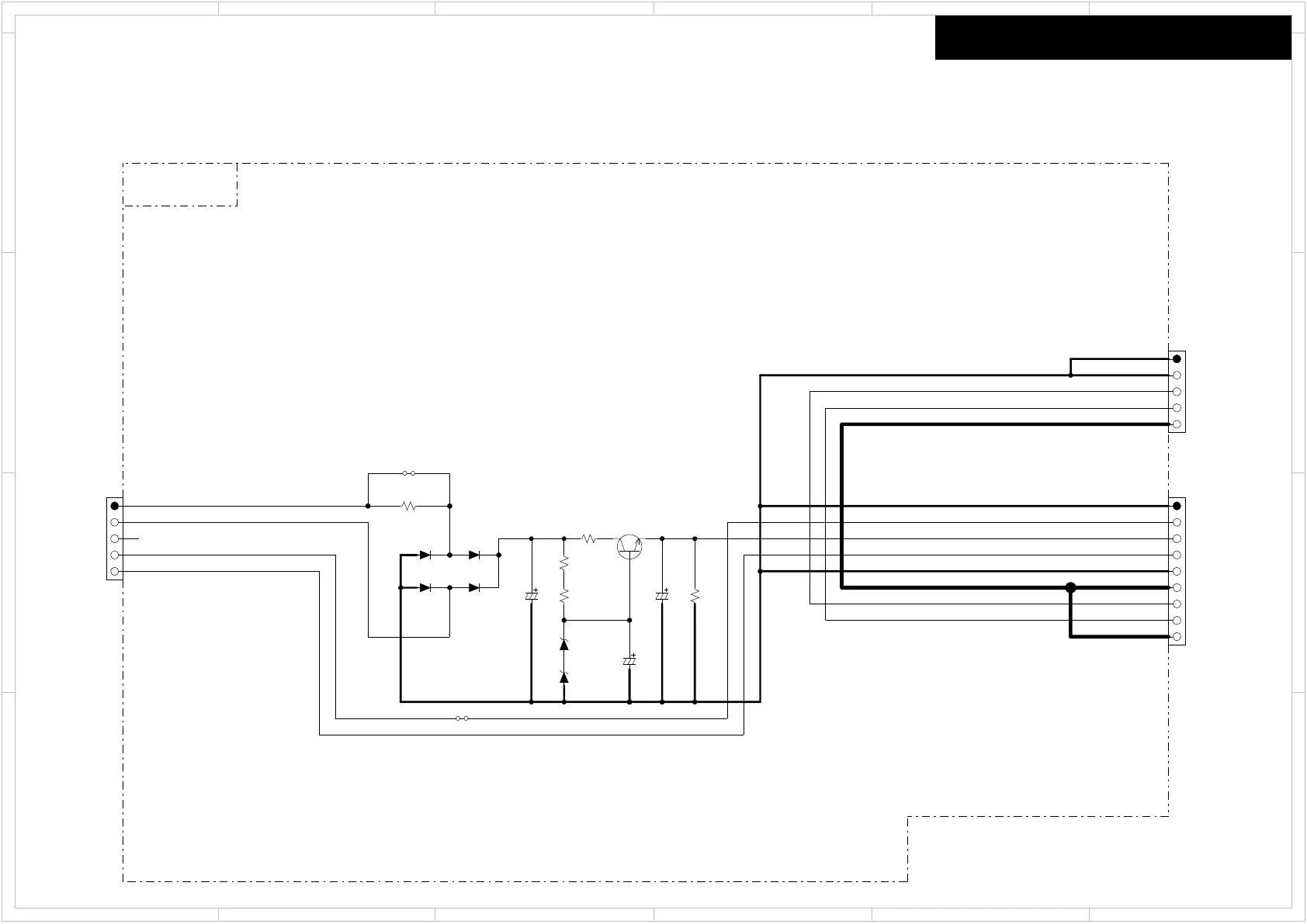

Model No. TX-RZ800/900,DTR-50.7/60.7 SCHEMATIC DIAGRAM (PART-31)
DISPLAY(Power supply) SECTION
TO BAAF-1785 (PART-4)
TO BADIS-1810 (PART-18)
