REGULATOR
This appliance must be fitted with a regulator complying with
the local/national standards and/or norms with a nominal
outlet pressure of:
CATEGORY I
3+(28-30/37
) Propane 37 mbar.
Butane 28-30 mbar.
CATEGORY I
3B/P(30)
Propane/Butane 30 mbar.
NEVER use an unregulated gas supply.
LP GAS HOSE
This appliance must be fitted with an LP Gas hose complying
with local/national standards and/or norms.
The LP Gas hose connecting the appliance to the gas
container should be 600mm long.
Position the LP Gas hose away from any hot surface,
including the bottom of the barbecue.
Be sure the LP Gas hose is not subjected to twisting.
Inspect the LP Gas hose when replacing the gas cylinder or
once per year whichever is more frequent. If the LP Gas
hose is cracked, cut, abraded or damaged in any way, the
appliance must not be operated.
The LP Gas hose must be replaced if damaged and when
national conditions require it. Contact your dealer for
replacement.
SPECIFICATIONS
FOR
USE IN
CATEGORY
SUPPLY
PRESSURE
BUTANE
SUPPLY
PRESSURE
PROPANE
REGULATOR MUST
COMPLY WITH
LP GAS HOSE
MUST COMPLY
WITH
BE
I
3+(28-30/37)
28-30 mbar 37 mbar
CH
I
3+(28-30/37)
28-30 mbar 37 mbar
ES
I
3+(28-30/37)
28-30 mbar 37 mbar
FR
I
3+(28-30/37)
28-30 mbar 37 mbar
NF M 88765 OR
NF M 88776
NF D 36107
GB
I
3+(28-30/37)
28-30 mbar 37 mbar BS3016 BS3212/2/8
IE
I
3+(28-30/37)
28-30 mbar 37 mbar
IS
I
3+(28-30/37)
28-30 mbar 37 mbar
IT
I
3+(28-30/37)
28-30 mbar 37 mbar
PT
I
3+(28-30/37)
28-30 mbar 37 mbar
RU
I
3+(28-30/37)
28-30 mbar
37 mbar
CZ
I3B/P(30)
30 mbar
30 mbar
DK
I3B/P(30)
30 mbar
30 mbar
FI
I3B/P(30)
30 mbar
30 mbar
GR
I3B/P(30)
30 mbar
30 mbar
HU
I3B/P(30)
30 mbar
30 mbar
LT
I3B/P(30)
30 mbar
30 mbar
LU
I3B/P(30)
30 mbar
30 mbar
LV
I3B/P(30)
30 mbar
30 mbar
NL
I3B/P(30)
30 mbar
30 mbar
NEN 5654
NO
I3B/P(30)
30 mbar
30 mbar
RO
I3B/P(30)
30 mbar
30 mbar
SE
I3B/P(30)
30 mbar
30 mbar
PL
I
3B/P(37)
37 mbar 37 mbar

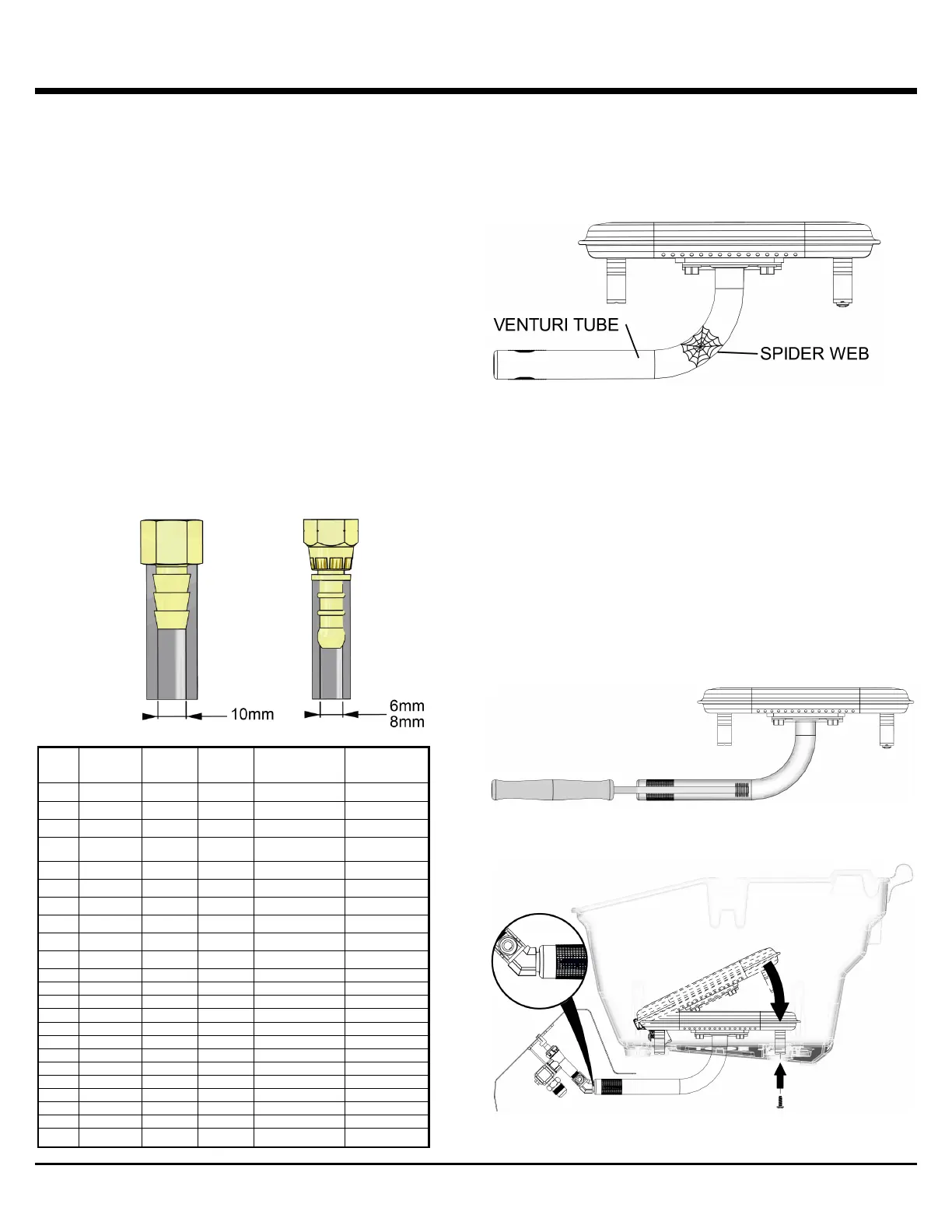

• always keep venturi tubes clean
• blockages in the venturi tubes caused by spiders,
insects and nests can cause a flashback fire
• although the gas grill may still light, the backed up gas
can ignite and cause a fire around the venturi tubes at
the control panel or the side burner
If a flashback fire occurs, turn off gas at the source
immediately.
Inspect and clean the venturi tubes (main burner, side
burner, rear burner) if any of the following symptoms
occur:
1. You smell gas.
2. Your gas grill does not reach temperature.
3. Your gas grill heats unevenly.
4. The burners make popping noises.
INSPECTING & CLEANING VENTURI TUBES
1. Turn off gas at the source. i.e. the gas cylinder or supply
line for natural gas.
2. When barbecue is cool, remove burner fasteners from
bottom, lift the burner from the barbecue housing.
3. Clean the venturi tubes with a pipe cleaner or venturi
cleaning tool (Accessory #18270).
4. Lower the burner into position in the barbecue housing,
making sure that the venturi tubes are correctly aligned
and fitted on the orifices.
5. Secure burner with fasteners.
