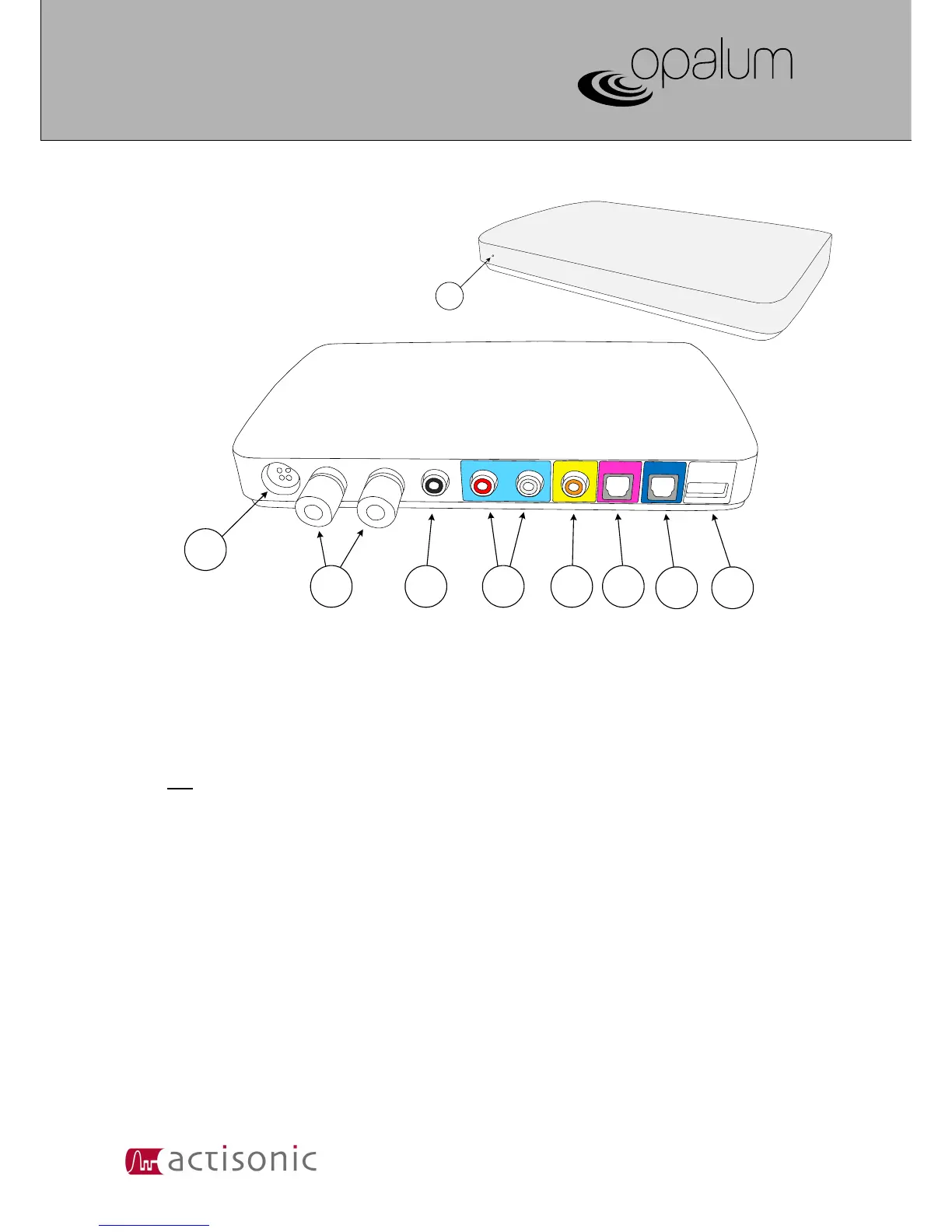

3. The Control Hub
1. Status indicator
Indicates the current status using different colors and
flash modes. For details see section “The status
indicator”.
2. Power inlet
Connects to included 24V DC power supply. Make
sure connector is firmly attached.
3. Speaker output, Actiline® Digital Link
Do only connect Actiline® enabled speakers to this
output. (E.g. Opalum FLOW or STREAM series).
4. Analog subwoofer output
Optionally connect this line level output to the analog
input of an active subwoofer. At normal listening
levels adding a subwoofer is not needed thanks to the
Actisonic technology. This output will sense if a
subwoofer is attached and automatically match the
sub-woofer and Opalum speakers using a high
precision digital crossover at 80 Hz and 24 dB/octave.
If the subwoofer has it's own adjustable low-pass
filter it should be set to the highest possible
frequency in order not to interfere with the digital
crossover of the Opalum Control Hub.
5. Analog stereo line input
Connects to analog line level equipment (e.g. mp3-
player, notebook, phones etc.) using RCA connectors.
Red connector = right, white connector = left.
6. Digital input, coaxial*
Connects to digital S/PDIF equipment (e.g. computer,
DVD
TM
, Blu-ray
TM
, flat screen TV, etc) using coaxial
cabling. (These are trademarks of their respective
owners).
7. Digital input, optical*
Connects to digital S/PDIF equipment (e.g. computer,
DVD
TM
, Blu-ray
TM
, flat screen TV, etc) using optical
fibre (TOSLINK
TM
). (These are trademarks of their
respective owners).
8. Digital input, optical*
Connects to digital S/PDIF equipment (e.g. computer,
DVD
TM
, Blu-ray
TM
, flat screen TV, etc) using optical
fibre (TOSLINK
TM
). (These are trademarks of their
respective owners).
9. Wireless network configuration port
Use this port to configure the Control Hub for
wireless media streaming. For details see section
“Setting up wireless media streaming”.
* NOTE: Use uncompressed stereo PCM audio data
only. 44.1 to 48 kHz data rate. If connecting a
multi-channel source (such as a DVD player,
computer, etc.) setup this source to
output uncompressed two channel (stereo)
PCM data.
