CARBURETOR AND THROTTLE LINKAGE
6E- 57
ACCELERATOR PUMP
PRESSURE RELIEF
VALVE SEAT
ALVE
VENT DISCHARGE
(AIR BUBBLES FROM THIS
HOLE
IS NORMAL)
PUMP INLET
VALVE EXHAUST
PORT
--
6E-33

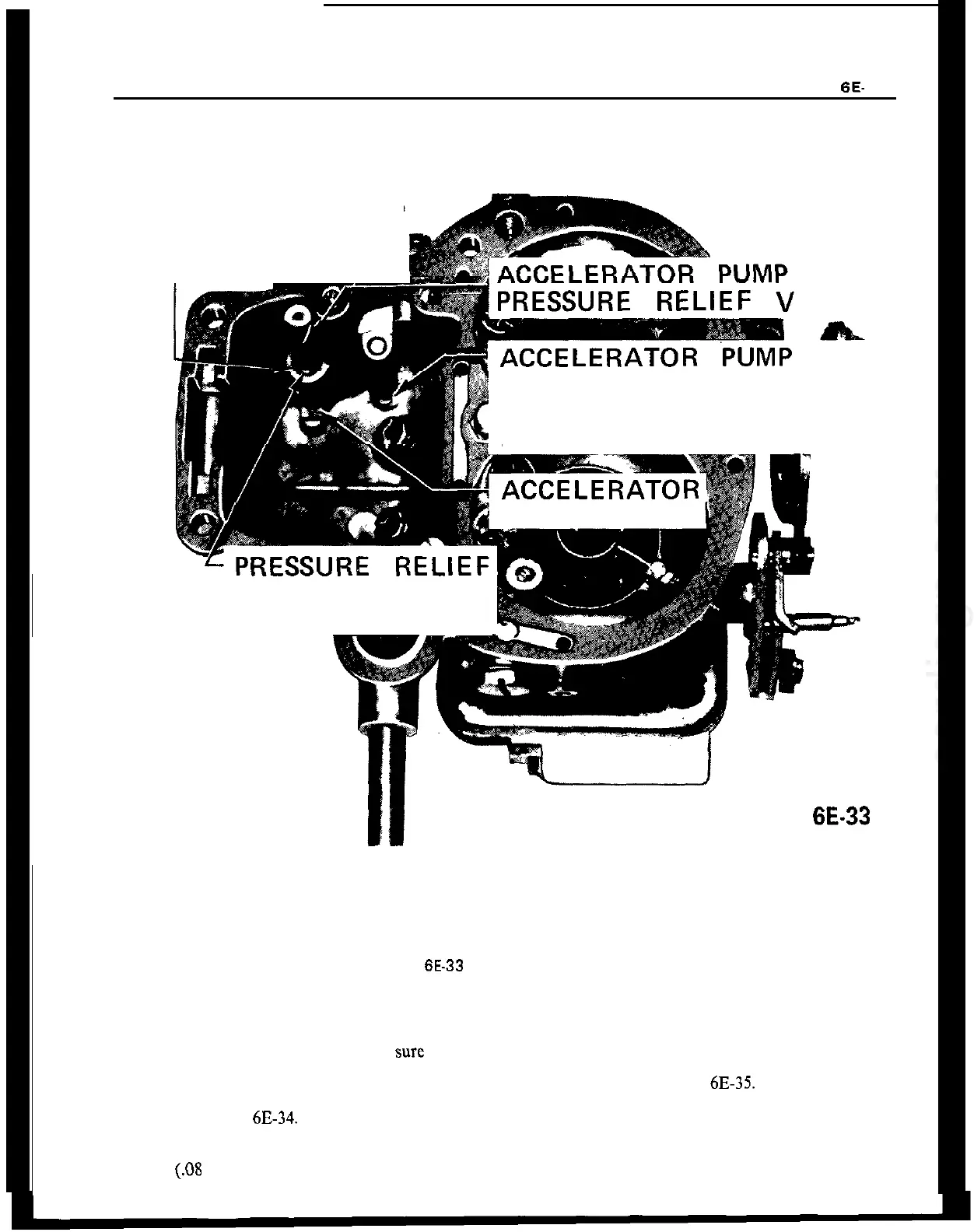

Figure 6E-33 Carburetor Fuel Bowl
33. Install float and pivot rod making
sure
rod is
seated in casting.
36. Install new air horn gasket so that the holes in
the gasket coincide with the screw holes in carbu-
retor housing. See Figure
6E-35.
34. Install leaf spring so that spring ends rest on float
spindle. See Figure
6E-34.
37. On vent valve, pay attention to cotter pin position
and arrangement of washers.
3.5. Screw in float needle valve together with copper 38. Basic adjustment of idle mixture adjusting screw
seal ring
(.08
in. thick). is 5 turns open.
