38 Keys, doors and windows

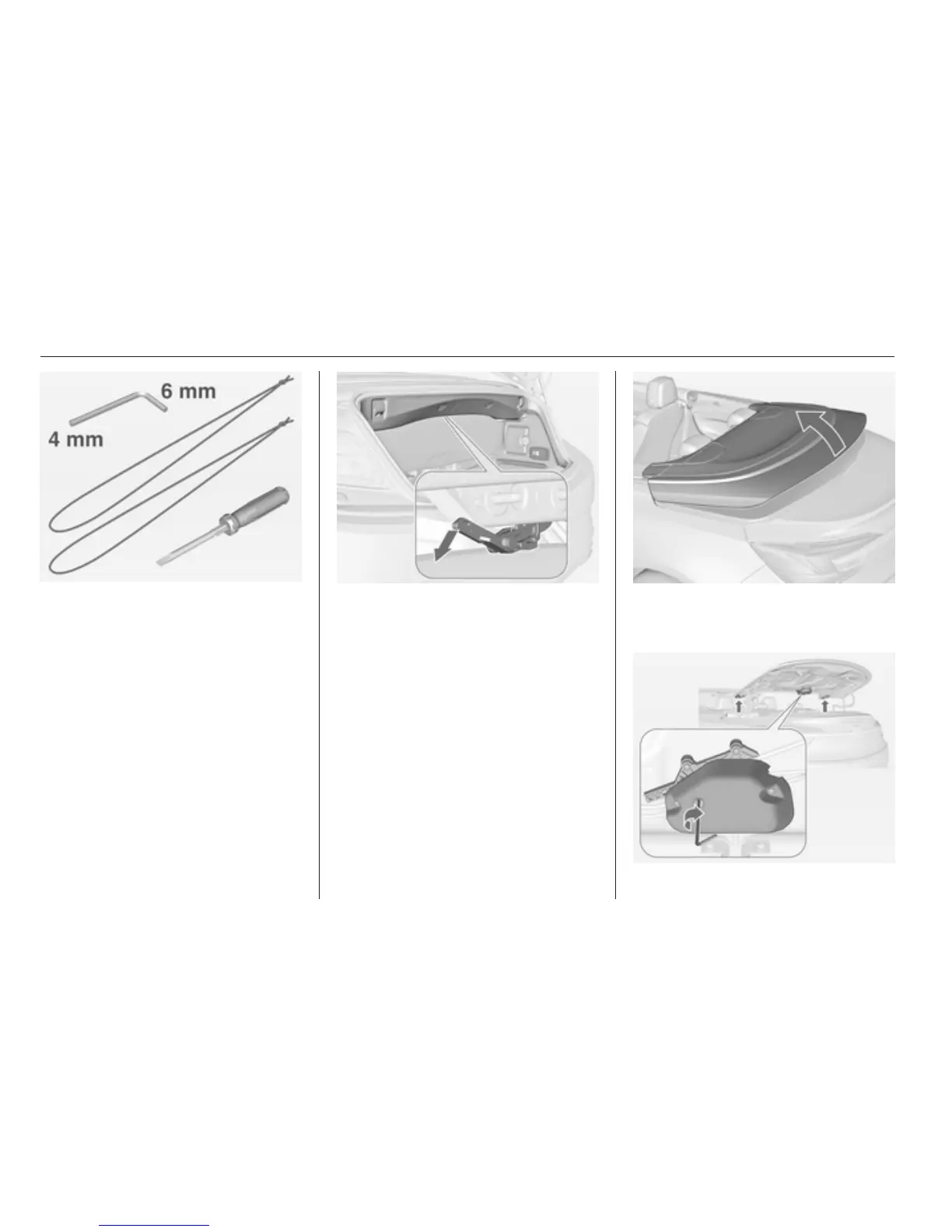

■ Allen key with 4 mm hexagon on the
long side and 6 mm hexagon on the
short side, located in the glovebox,
■ two strings, located in the glovebox,
■ screwdriver, located in the tool box
in the load compartment 3 200.
1. Switch off ignition.
2. Open the boot lid and remove the
screwdriver from the tool box.
3. On the inside of the upper load
compartment edge is a lever for
releasing the soft top lid. Locate
the lever and unlatch by swivelling
the lever downwards.
Note
The boot lid cannot be opened from
next step on.
Remove the screwdriver from the
toolbox for further operation. It is
possible that the load compartment
cannot be opened until the vehicle is
at a workshop. Therefore remove
any required objects from the load
compartment.
4. Close boot lid.
5. Lift up soft top lid from both sides
simultaneously up to approx. the
half raised position.
