STANDARD CONFIGURATIONS
WIRING THE CORE SERIES 24V 4-DOOR SMART HUB
The Core Series 24V 4-Door Smart Hub (4ENT-SYS-24V) uses an FPV4 to power the
Core and 4-Port Board.



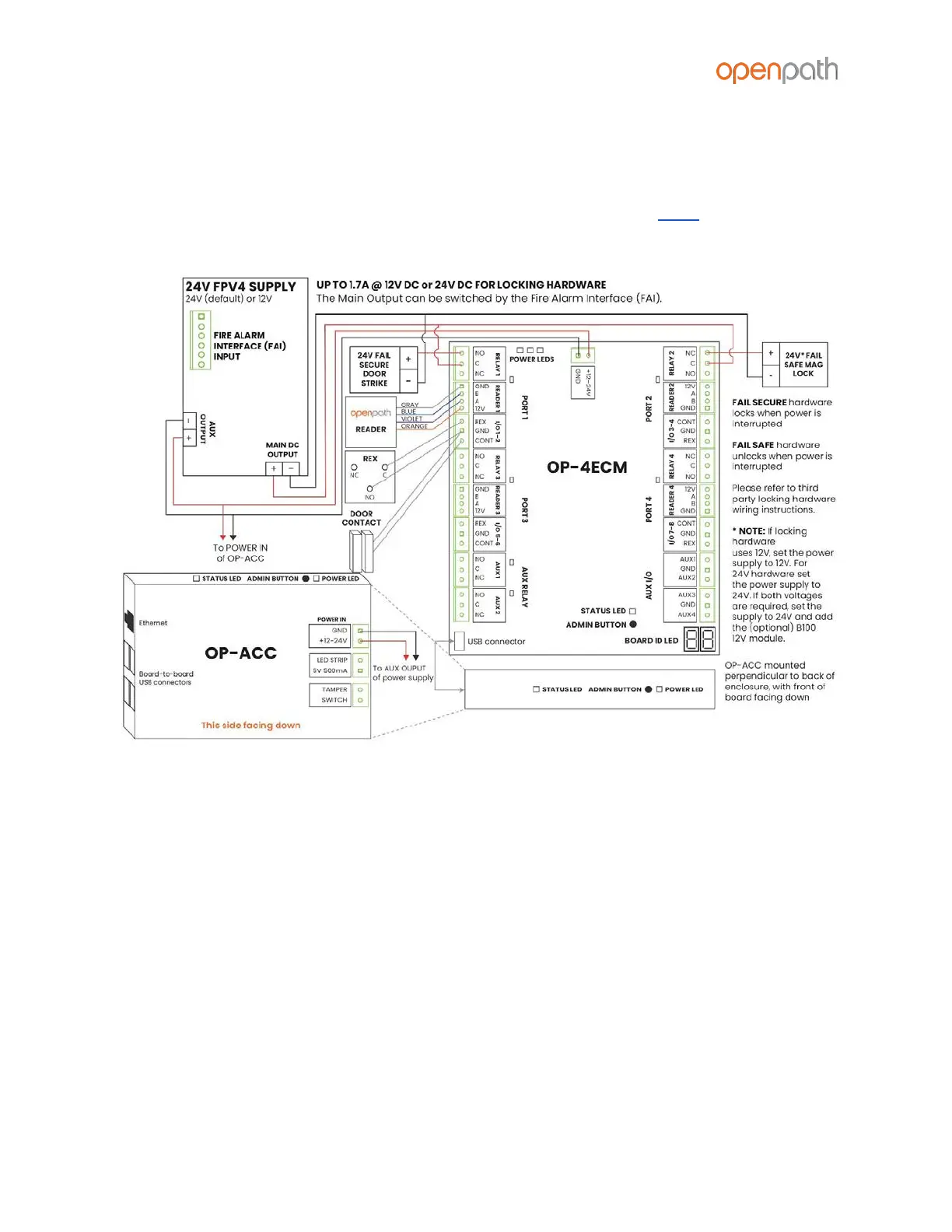

Figure 5: 4ENT-SYS-24V Wiring Diagram
 

Version 1.8
© Openpath 2020
Page 11

