WIRING THE CORE SERIES 24V ELEVATOR SMART HUB
The Core Series 24V Elevator Smart Hub (20ENT-SYS-24V) uses an FPV4 to power the
Core, 4-Port Board, and Elevator Board.


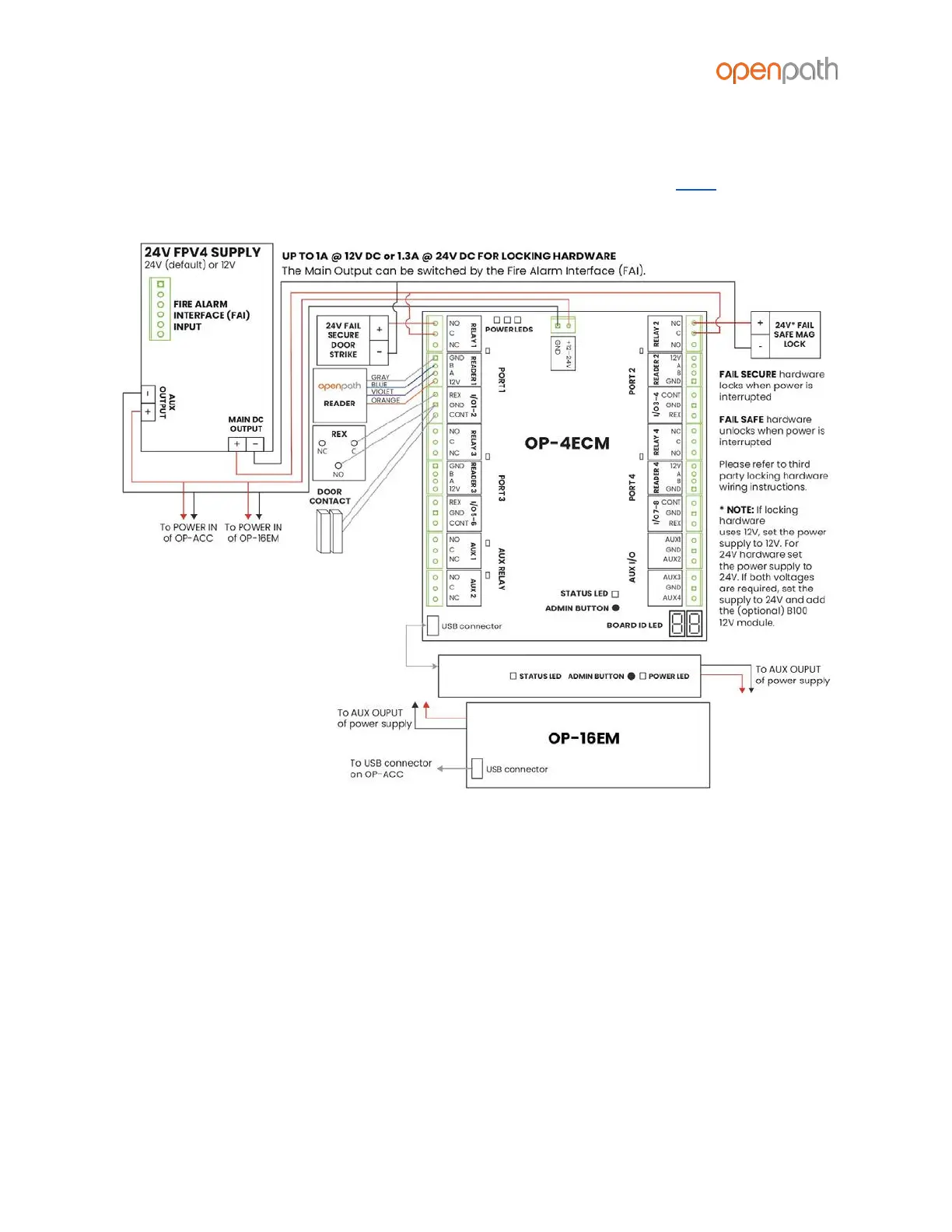

Figure 7: 20ENT-SYS-24V Wiring Diagram
 

