Case 2 - Thick Line Engraving
XT-50 laser heads’ adjustable square beam spot allows you to laser engrave with
different laser dot thicknesses. This introduces the possibility of rapidly engraving with a
single thick curve or line by using an offset.
In this case, the High-Pressure Air Assist Nozzle should also be placed in the same
fashion as in Case 1, ie. so that the bottom tip of the HP nozzle is 58 mm (2.28 inches)
from the bottom face of the laser head.

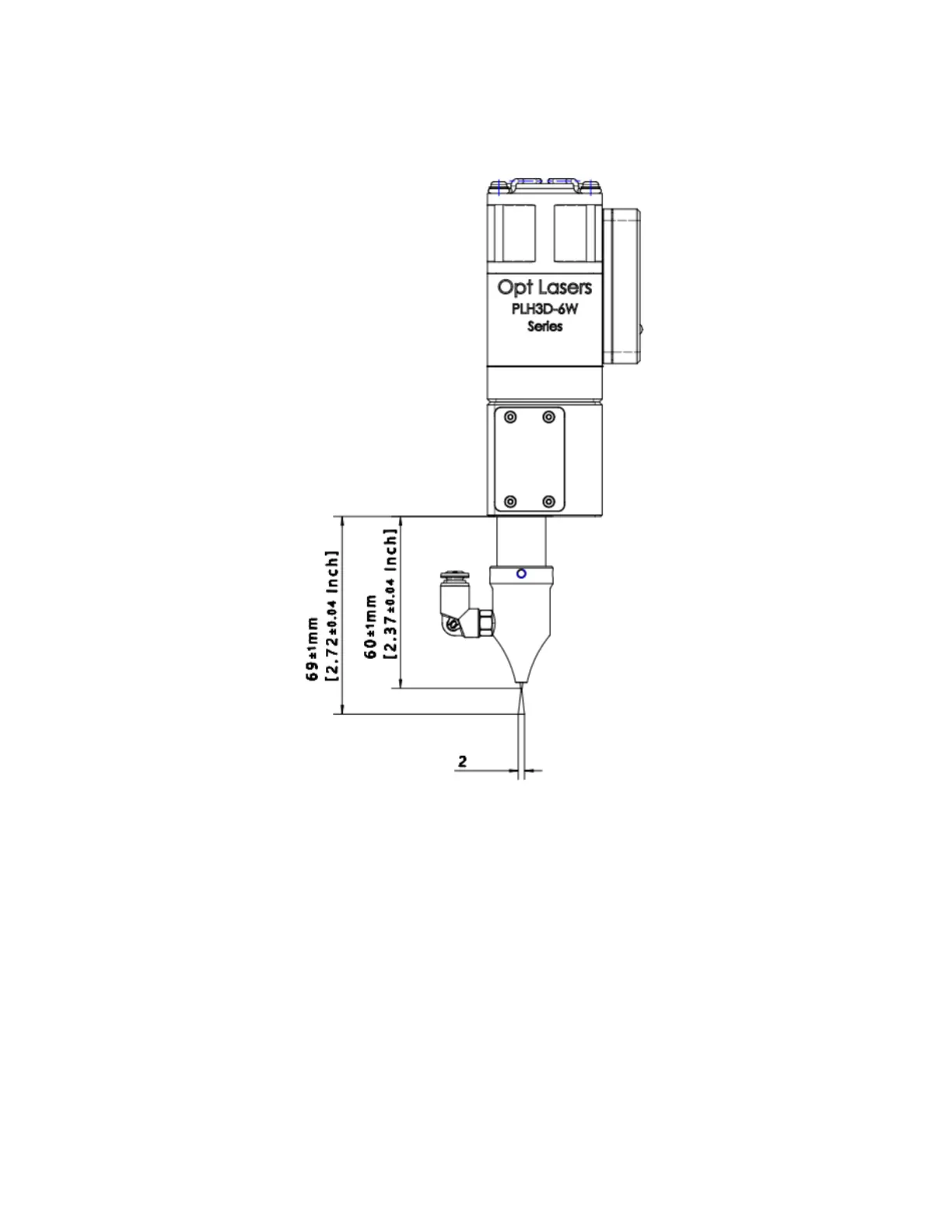

However, you move the laser head higher up than usual. This can be for example 9 mm
(0.354 inch) above the working distance established during the WD calibration. And the
distance between the material being processed and the bottom face of the laser head is
e.g. 69 mm (2.72 inches).
