PRINCIPLES OF OPERATION (CONTINUED)
At the end of the pressure dwell cycle, the top port is connected to the

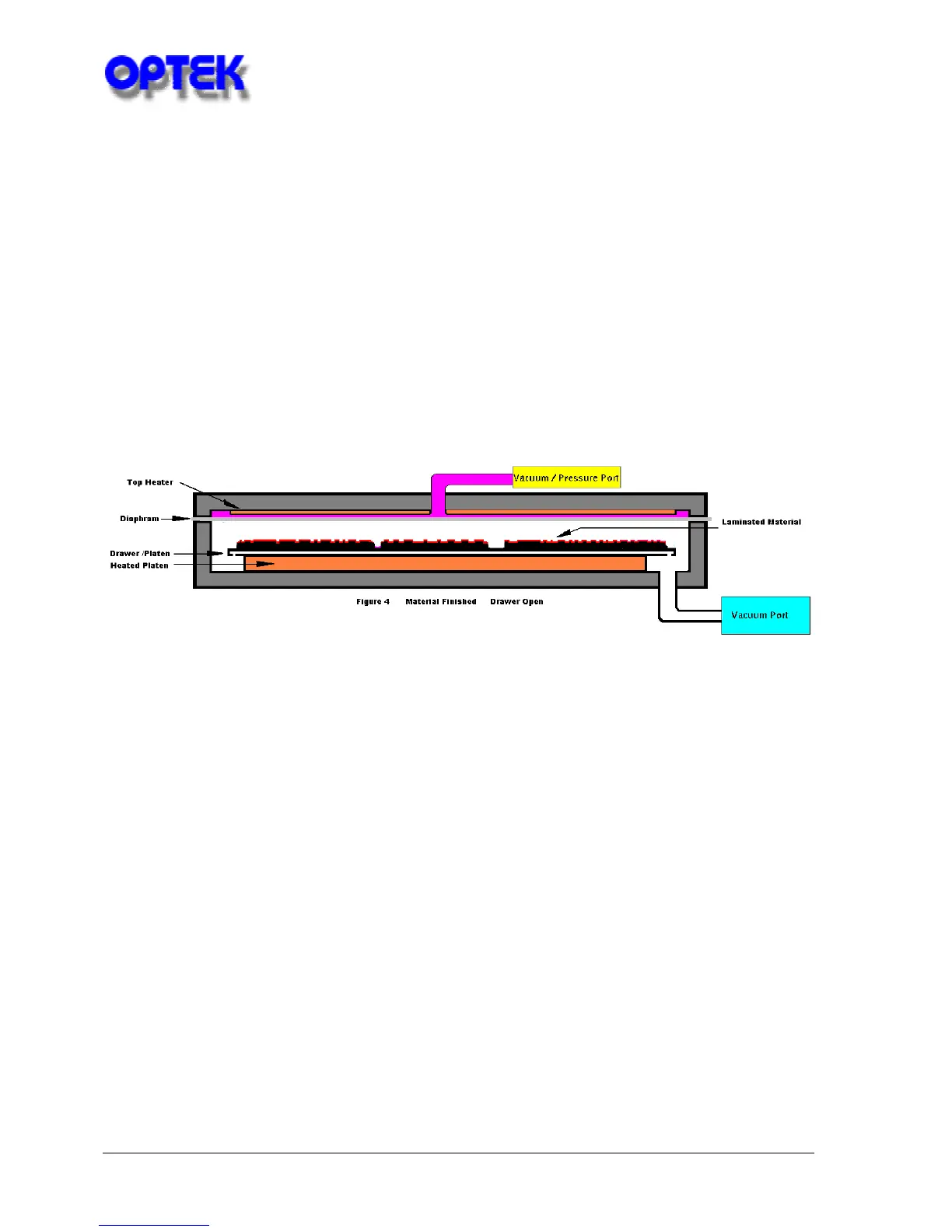

vacuum pump again, and the bottom port is vented to atmospheric pressure. As shown
in figure 4, this returns the diaphragm and drawer platen to their original positions and
allows the drawer to be opened for unloading.
SITE REQUIREMENTS
Dimensions: 44" Wide X 44" Deep X 60" High, exclusive of leveling feet (1" to 2")
Weight: 2,200 LBS (shipping)
Electrical Requirements: 208/220 VAC, 3 Phase, 40 Ampere/Phase
Compressed Air: Dry, Filtered, 70 PSI, 3 CFM
