OPTEK DPL-24
10
INSTALLATION
Due to the weight of the unit a forklift is mandatory for removal of the
DPL-24 from the pallet and, for final positioning.
1. Upon receipt of equipment inspect for obvious external damage.
2. Remove Tri-Wall cardboard box or wooden crating and inspect for damage to
the machine itself. Do not attempt to slide the chamber drawer.
3. Using a forklift roughly place the DPL-24 utilizing the attached pallet,
4. Remove lower back panel
5. Remove the four bolts securing unit to pallet.

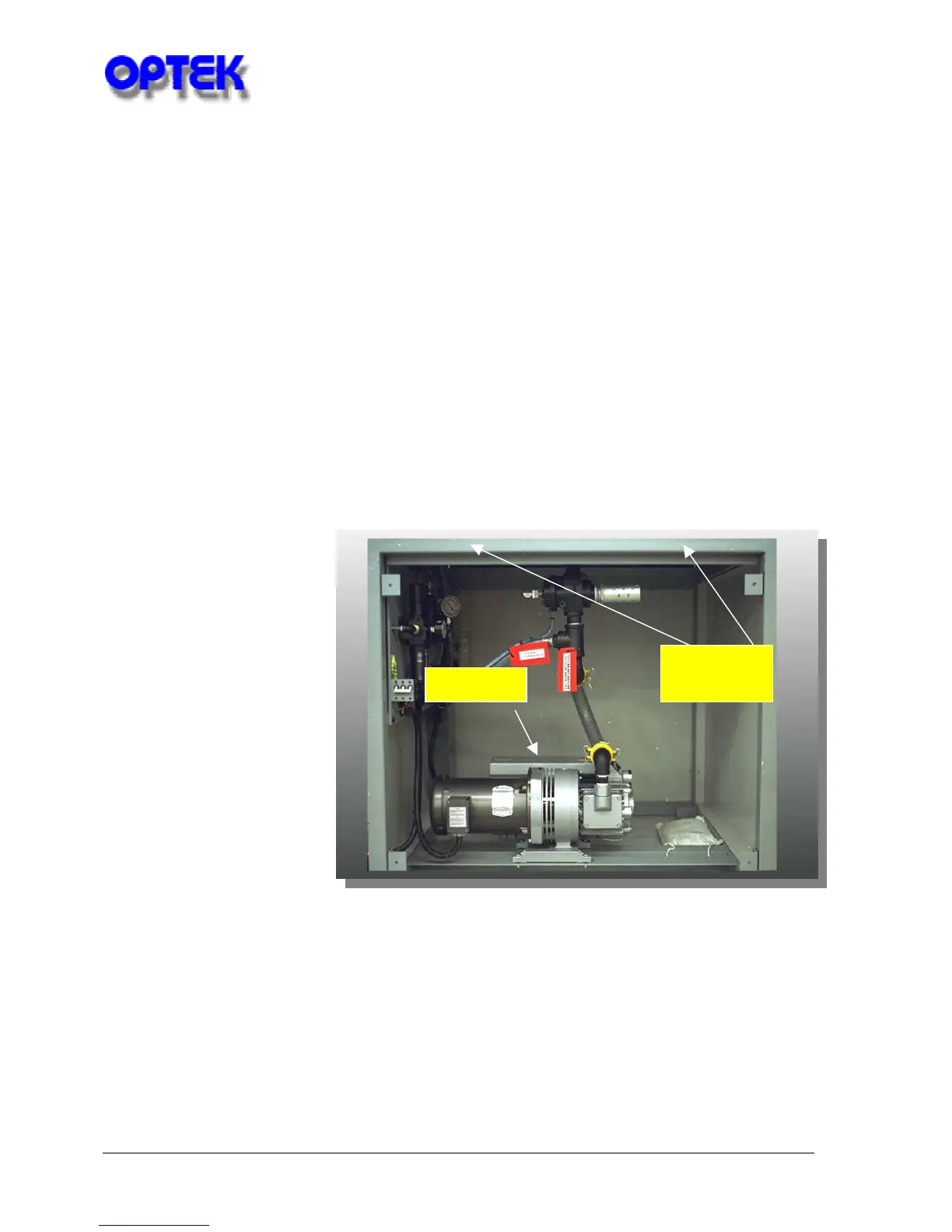

6. Raise unit with forklift blades positioned under main vessel, being careful not to
damage main valve. (see illustration below)
7. Install leveling feet
(included) into
threaded holes
formerly occupied by
shipping bolts.
8. Position, lower, and
level the unit.
9. WARNING: IT IS
IMPERATIVE
THAT OIL BE
ADDED TO PUMP
BEFORE
OPERATION!
LIFT HERE
ROTATION
