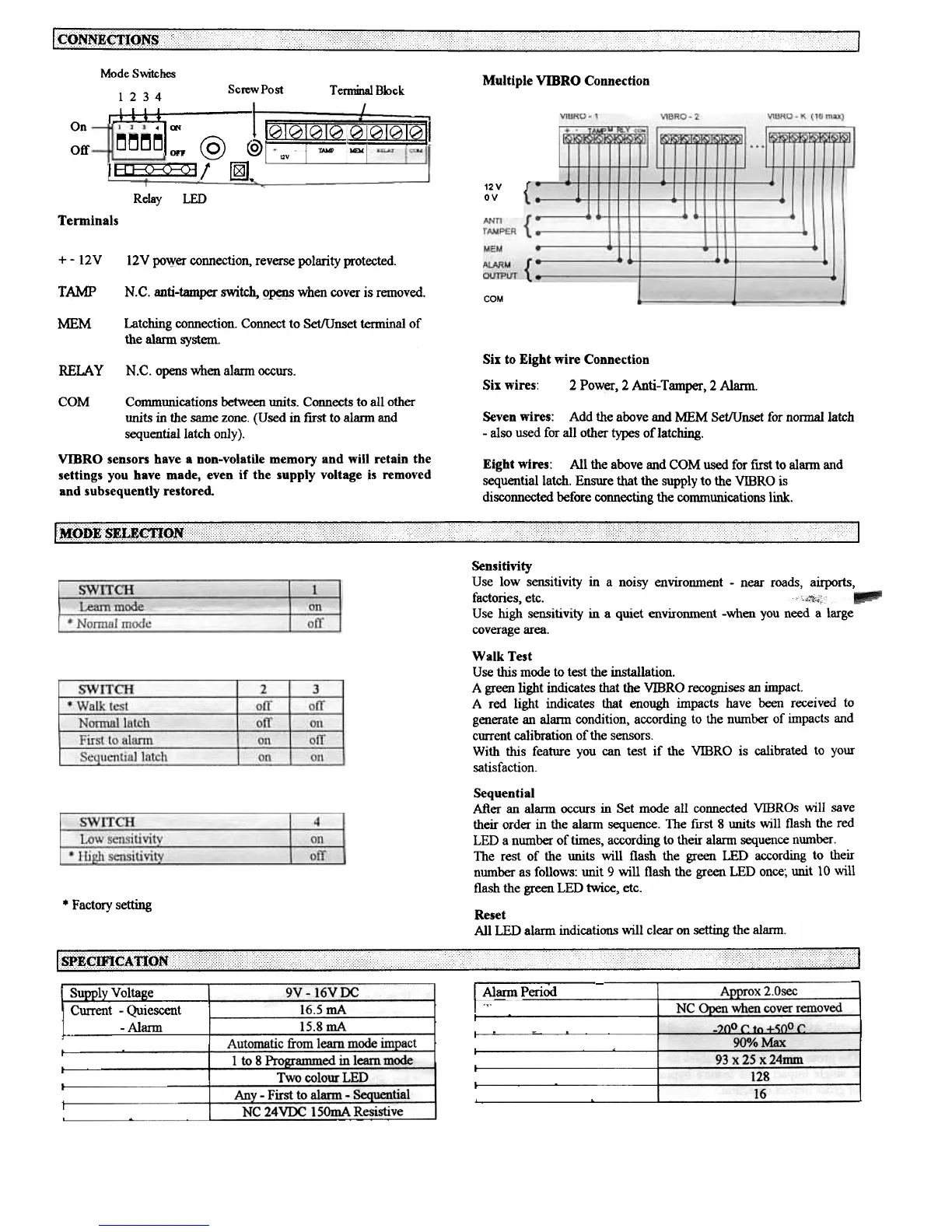

Multiple VIBRO Connection
Mode Switches
I 2 3 4 Screw Post
~
J~/I
TemlÍnal Bk>ck
~g~!
On
Off
12V
OV
Relay
LED
@
~,-
Terminals
+-l2V 12V po'Yer connection, reverse po1arity protected.
TAMP
N.C. anti-tamper switc~ Q~ when cover is removed.
COM
MEM Latching connection. Connect to Set/Unset temrinal of
fue alarm system.
S ix to Eight wire Connection
RELA y N.C. opens when alarm occurs.
S ix wires:
2 Power, 2 Anti-Tamper, 2 Alann.
COM Commwrications between writs. Connects to all other
writs in the same zone. (Used in f1fst to alann and
sequentiallatch only).
VIBRO sensors have a non-volatile memory and will retain the
5ettings you have made. even if the 5upply voltage is removed
and sub5equently restored.
Seven wires: Add the above and MEM Set/Unset for normal latch
-also used for all other types of latching.
Eigbt wires: All fue above and COM used for fust to alann and
sequentiallatch. Ensure that fue supply to fue VIBRO is
disconnected before connecting fue communications link.
~
Sensitivity
Use low sensitivity in a noisy environment -near roads, airports,
factories, etc.
Use high sensitivity in a quiet environment -when you need a large
coverage area.
Walk Test
Use this mode to test the installation.
A green light indicates that the VIBRO recognises an impact.
A red light indicates that enough impacts have been received to
generate an alarm condition, according to the nwnber of impacts and
current calibration of the sensors.
With this feature you can test if the VIBRO is calibrated to your
satisfaction.
Sequential
After an alann occurs in Set mode all coIUlected VIBROs wilI save
their order in the alann sequence. The flfSt 8 w1its will f1ash the red
LED a number of times, according to their alann sequence number .
The rest of the w1its will t1ash the green LED according to their
number as follows: w1it 9 will f1ash the green LED once; w1it lO will
f1ash the green LED twice, etc.
.Factory setting
Reset
All LED alarnl indications will clear 011 setting fue alarnl.
Approx 2.0sec
NC ~ ~en cover removed .
,~~ Peric)d
-?00 r tn +~00 r
9QO/0 Max
I Supply Voltage
CUITent -Quiescent
I-Alarm
93 x 25 x 24mm
128
16
9V -16V DC
16.5 mA
15.8 mA
Automatic from learn mode impact
1 to 8 ProRl'am1ned in learn mode
Two colour LED
Any -First to a1arm -Sequenti81
NC 24VDC 150mA Resistive
