16
Final Assembly

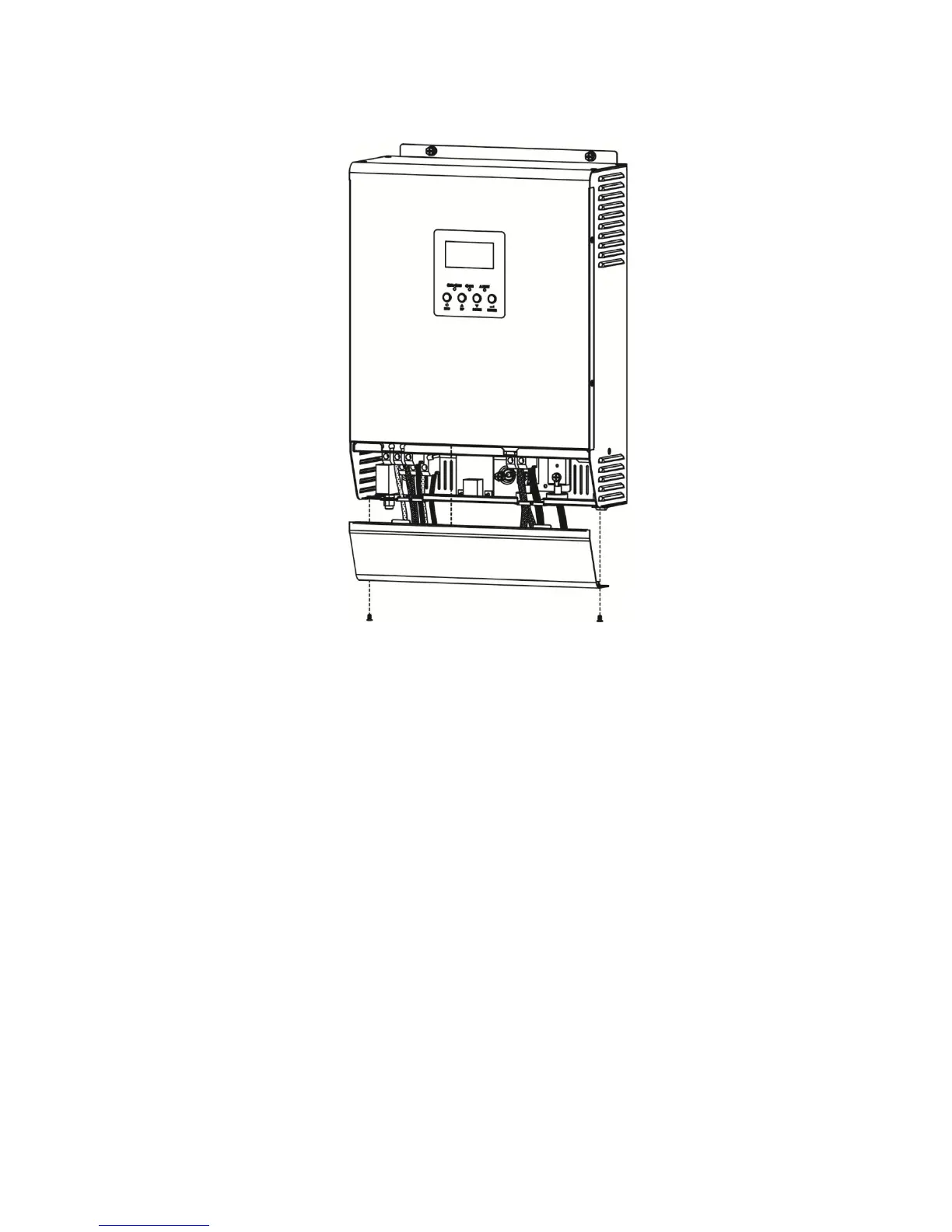

After connecting all wirings, please put bottom cover by screwing two screws as shown below.
Communication Connection
This inverter/charger is equipped with a communication port to communicate with a PC with corresponding
software. Please use supplied communication cable to connect to communication port of this inverter and
RS-232 port of the PC. For the detailed software operation, please check user manual of bundled software.
