Optika B-350 - Using Additional Filters

Page 11
Insert the 10x objective rotating the nosepiece.
Rotate the turret of the condenser (6) until you reach the inscription “10”.
Looseningthelockscrewofthecenteringtelescope,focusonthelightringthatyouobserve.
Loosenthelockingscrewsofthephaseringscenteringlevers(7)andslidethemforwardorbackward
untilthebrightlightringisperfectlyalignedwiththedarkring.
Repeatfortheotherobjectives(onlyasavericationofthecorrectcentering).
Oncecenteredwith100xobjective,thecondenserwillbeautomaticallycenteredalsowiththeother
objectives.

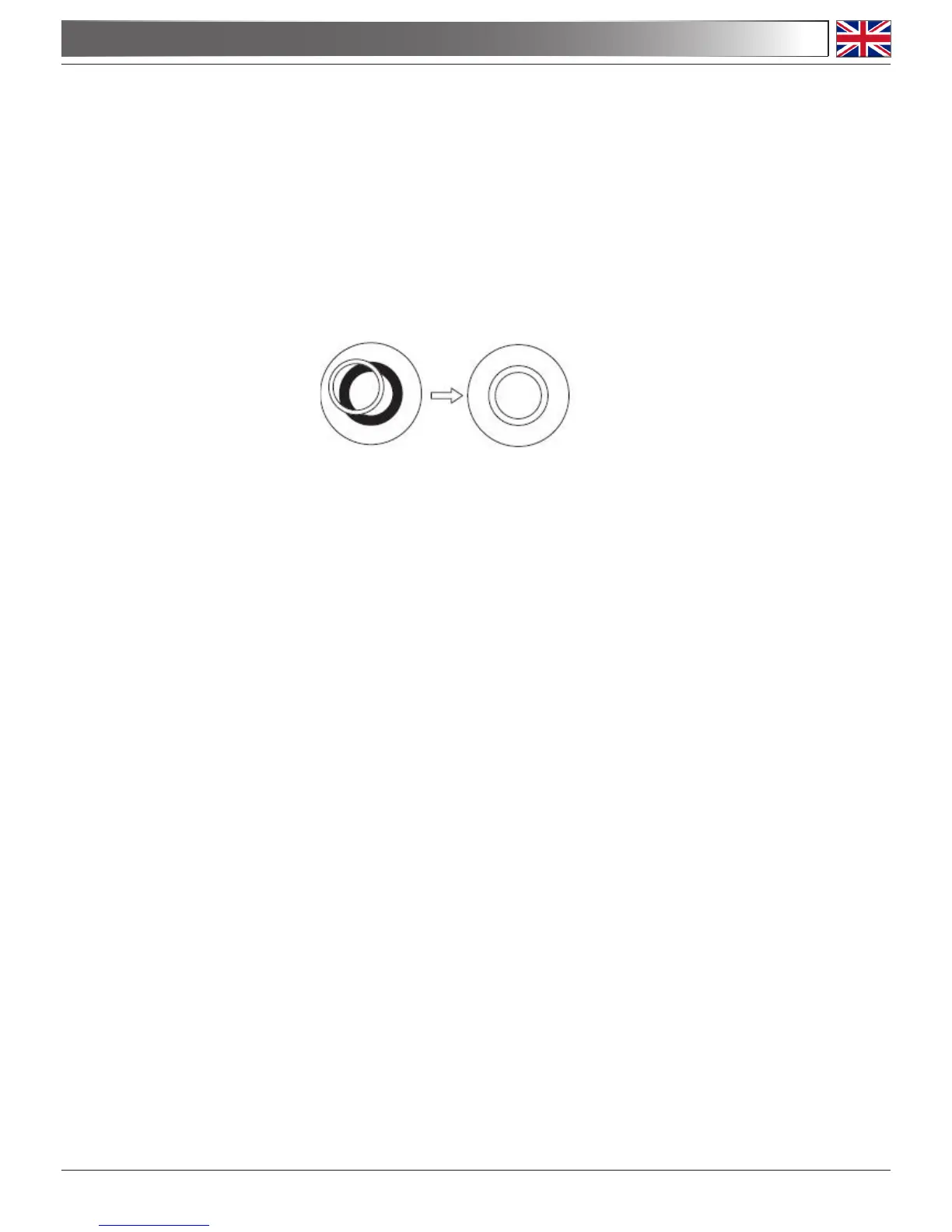

Phaseringswillbecenteredwhenyouseeanimagelikethis:
4.10 Additional lters
 Theblue,yellowandfrostedglasslterscanbeinsertedintheip-outlterholderunderneaththe
condenser.
4.0 USING THE MICROSCOPE
