Optimate 3 TM431 - LED Indicator Guide; LED #1 AC POWER; LED #2 REVERSE POLARITY; LED #3 SAVE; SOC: 0 -49%

Multi bank / station models OptiMate 3 x2 OptiMate 3 x4:
each bank /station / output operates as an independent OptiMate 3.
12V
24-724-7

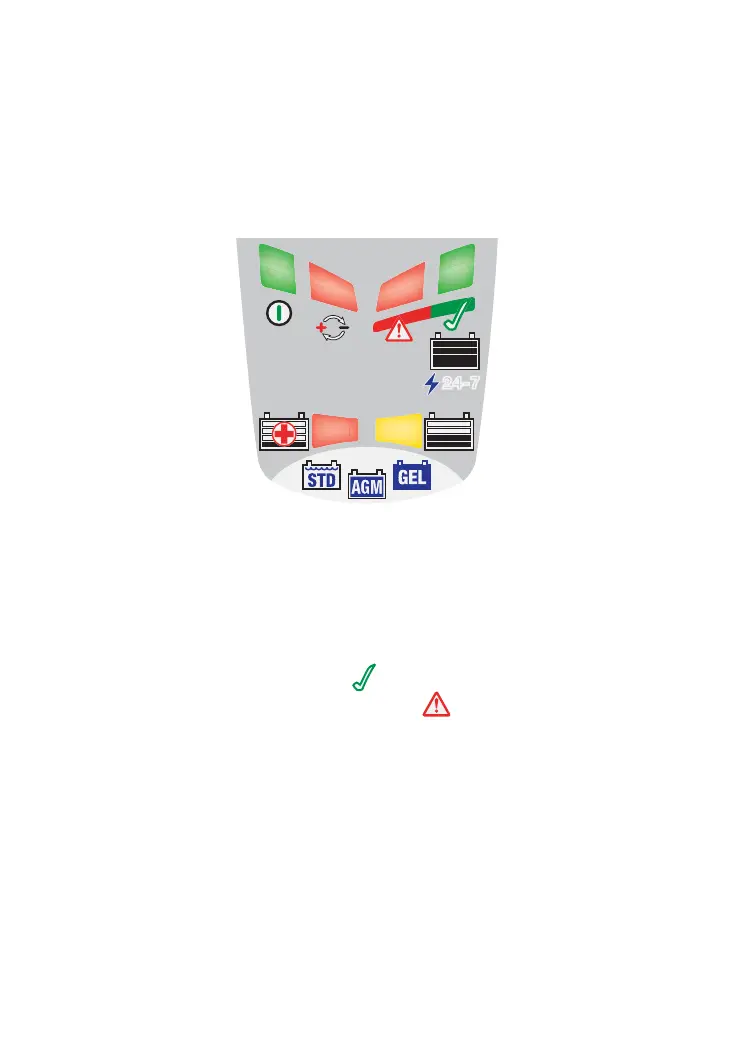

LED #1 AC POWER (100-240V)
LED #2 REVERSE POLARITY
LED #3 SAVE / SOC: 0 - 49%
LED #4 CHARGE / SOC: 50%+
LED #5 MAINTAIN / SOC: 100% /
SOH:
LED #6 BATTERY SOH:
15
2
34
6
SOC - State Of Charge
SOH - State Of Health
