Malfunctions CNC Controller III and VI ; Version 2.0.1
© 2006
GB

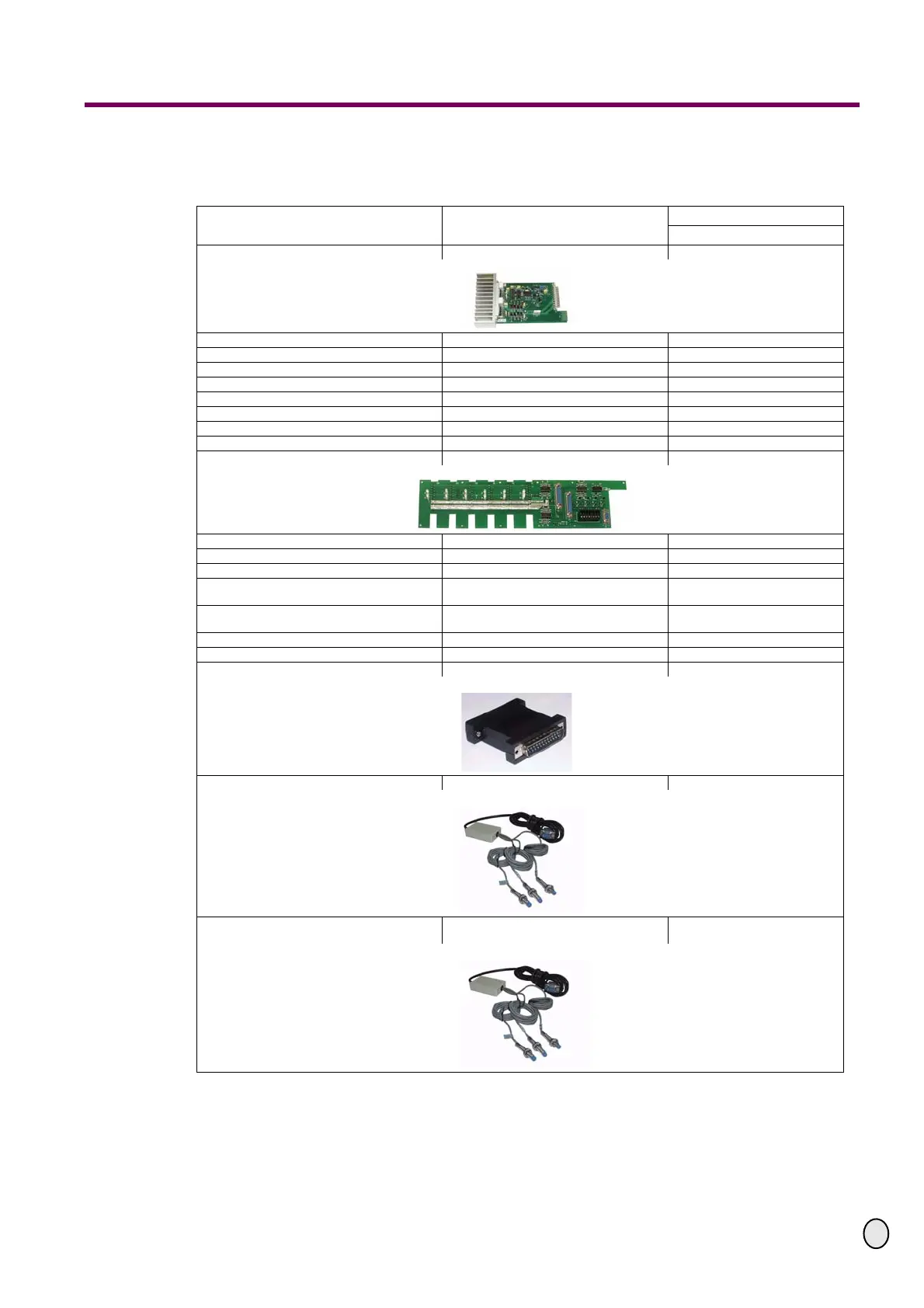

10 Spare parts
Bezeichnung Designation
Artikelnummer
Item no.
Steuerkarte Control board 3571960
CNC Controller III komplett 3 Steckplätze complete CNC Controller III 3 slots 3571951
CNC Controller VI komplett 6 Steckplätze complete CNC Controller VI 6 slots 3571950
Netzteil Power supply unit 035719501
Lüfter Fan 035719502
Kaltgerätestecker Inlet connector for non-heating apparatus 035719503
Ein-Aus Schalter On - Off switch 035719504
Anschlussstecker Steuerkarte Plug control board 035719505
Feinsicherung 1,6 A Träge Fine-wire fuse 1.6 A slow-blow 035719506
Hauptplatine CNC Controller VI, Version 2 Mainboard CNC Controller VI , version 2 0357195027
Hauptplatine CNC Controller III , Version 2 Mainboard CNC Controller III , version 2 0357195028
Frontblende CNC Controller VI Front screen (Front cover) CNC Controller VI 035719509V2
Frontblende CNC Controller III Front screen (Front cover) CNC Controller III 0357195010V2
Gehäuse CNC Controller VI; komplett ohne
Elektrik
Housing CNC Controller VI; completely
without electric
0357195011
Gehäuse CNC Controller III; komplett ohne
Elektrik
Housing CNC Controller III; completely
without electric
0357195012
Slot - Abdeckung CNC Controller VI Slot - cover CNC Controller VI 0357195013
Slot - Abdeckung CNC Controller III Slot - cover CNC Controller III 0357195014
Adapterstecker Parallel Anschluss SUB D 25 polig Adapter plug parallel port SUB D 25 pins 0357195015
Set Referenzschalter D210 - D280, 3 Achsen Set reference switches D210 - D280, 3 axis 3571966
Satz Referenzschalter BF20, 3 Achsen zum
Anschluss an SUB D 9 polig
Set reference switches BF20, 3 axis for
connection on SUB D 9 pins
3571967
