Optoma DS316L User Manual

ES526/EX536/EX531/CB2800/ES526L/EX536L/DS316L
Condential
2-2

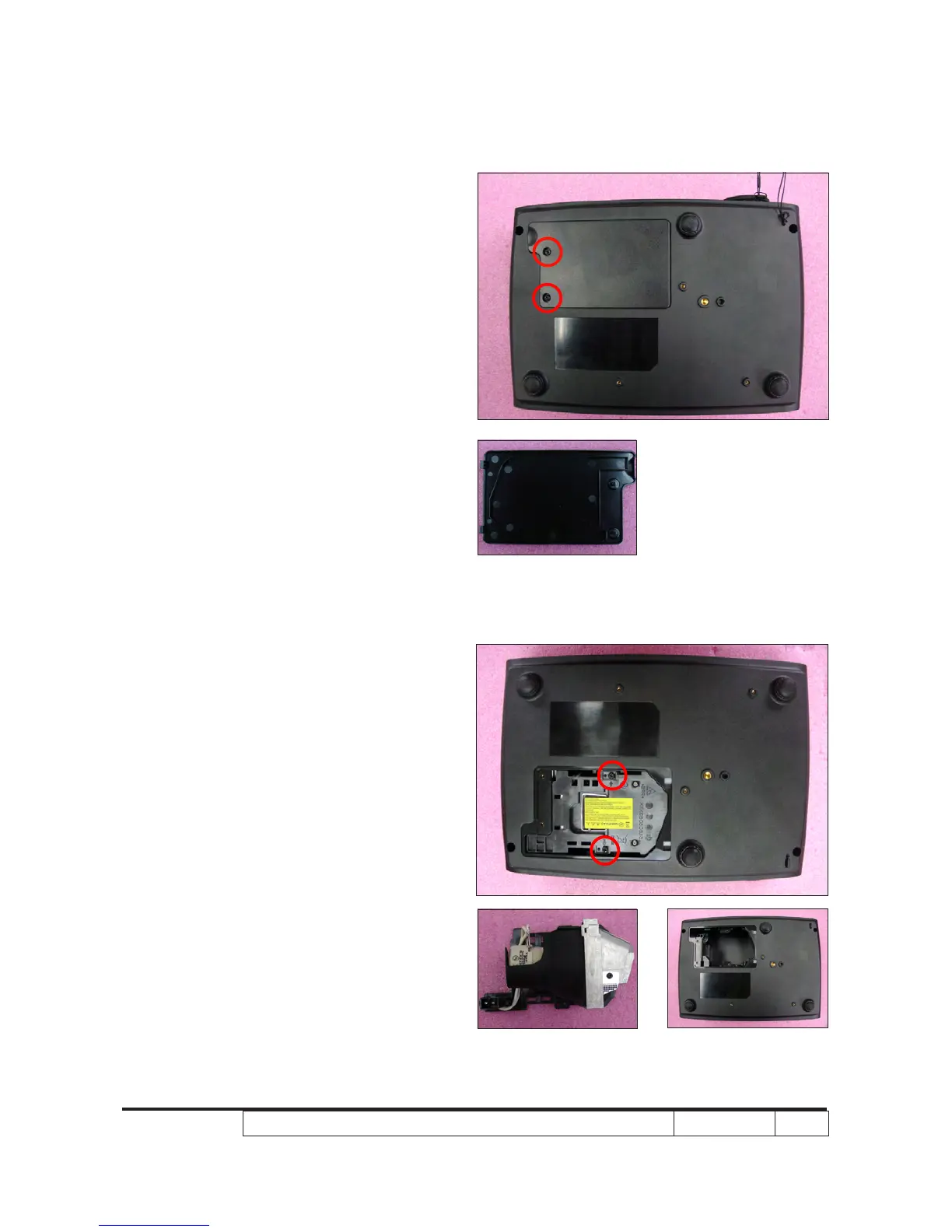

2-3 Disassemble Lamp
Module
1. Unfasten 2 screws (as red circle) on the
Lamp Module.
2. Take off the Lamp Module.
2-2 Disassemble Lamp
Cover Module
1. Unfasten 2 screws (as red circle) on the
Lamp Cover.
2. Disassemble the Lamp Cover Module.

Optoma DS316L Specifications

General

Matrix size	0.55 \
Projection distance	1.2 - 12 m
Vertical scan range	24 - 85 Hz
Horizontal scan range	15.3 - 91.1 kHz
Projection technology	DLP
Contrast ratio (typical)	4000:1
Screen size compatibility	27.49/303.12 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-40/40 °
Throw ratio	1.95 - 2.15:1
Digital zoom	1.1 x
Focal length range	21.8 - 24 mm
Aspect ratio	4:3, 16:9
Dimensions (WxDxH)	286 x 192 x 84 mm
Power requirements	100-240V, 50-60Hz
Connectivity technology	Wired
F-number (relative aperture)	2.41
Lamp power	185 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
RMS rated power	2 W
AC (power) in	Yes
Serial interface type	RS-232
Power consumption (standby)	1 W
Power consumption (typical)	233 W
Certification	RoHS
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	5 - 85 %
Placement	Ceiling

Weight and Dimensions

Weight	2300 g
