ES526/EX536/EX531/CB2800/ES526L/EX536L/DS316L
Condential
2-9

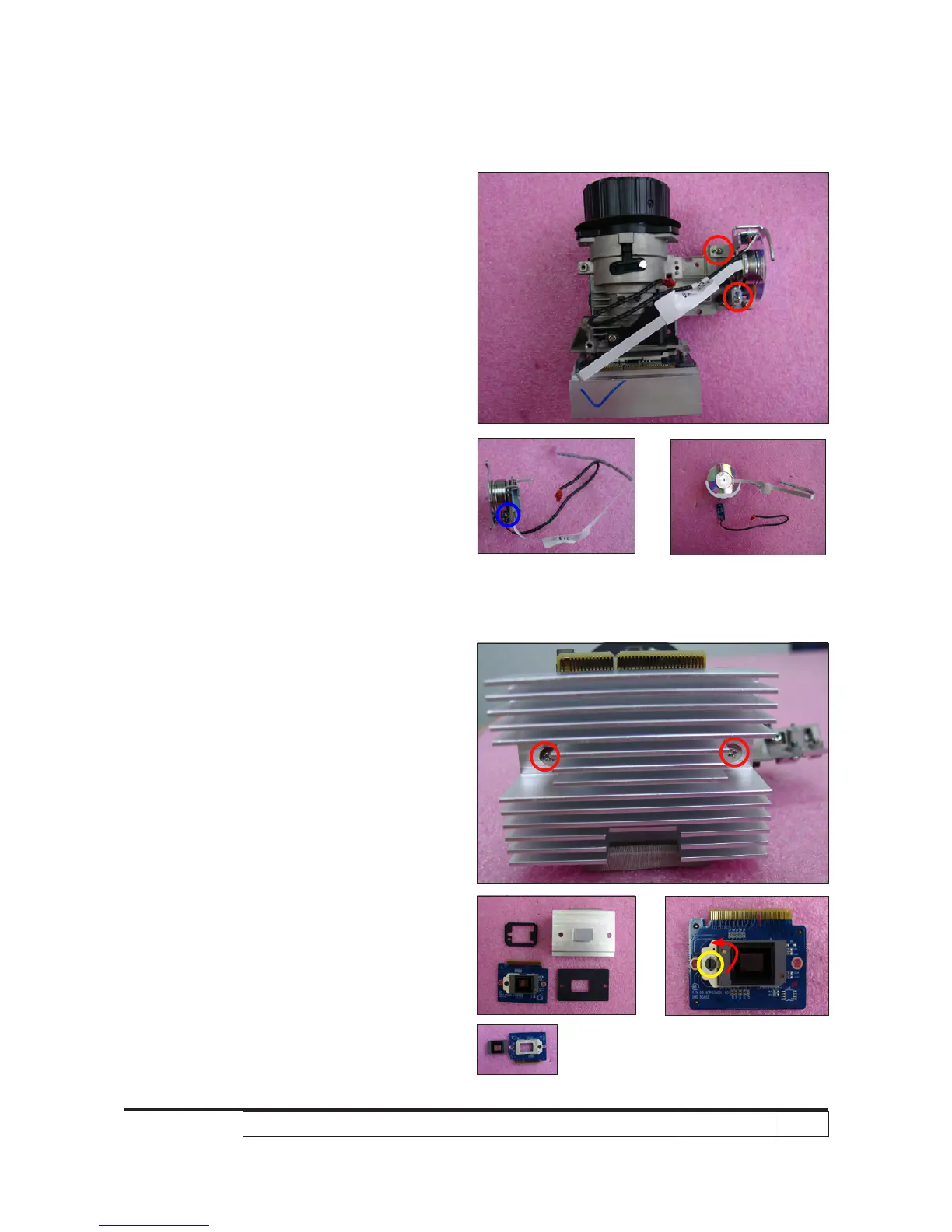

2-12 Disassemble Color
Wheel Module
1. Unscrew 2 screws (as red circle) to
disassemble the Color Wheel Module.
2. Unscrew 1 screw (as blue circle) to
disassemble the Photo Sensor Board
from the Color Wheel Module.
Note: - Avoid touching the glass parts of color
wheel.
2-13 Disassemble DMD Chip
and DMD Board
1. Unscrew 2 screws (as red circle) to
disassemble the Heat Sink and DMD
Module.
2. Counterclockwise rotate the screw (as
yellow circle) to disassemble the DMD
Board and DMD Chip.
Note: - Avoid touching the DMD Chip when you
disassemble it.
- Found that the DMD Chip has scrapes
or dirt use of a magnifying glass, you
may use an electrostatic ion gun to
clean it.
- Pay attention to the xed position when
assembling the DMD Chip.
