Optoma EX542 - Input;Output Connections

9
English
Introduction

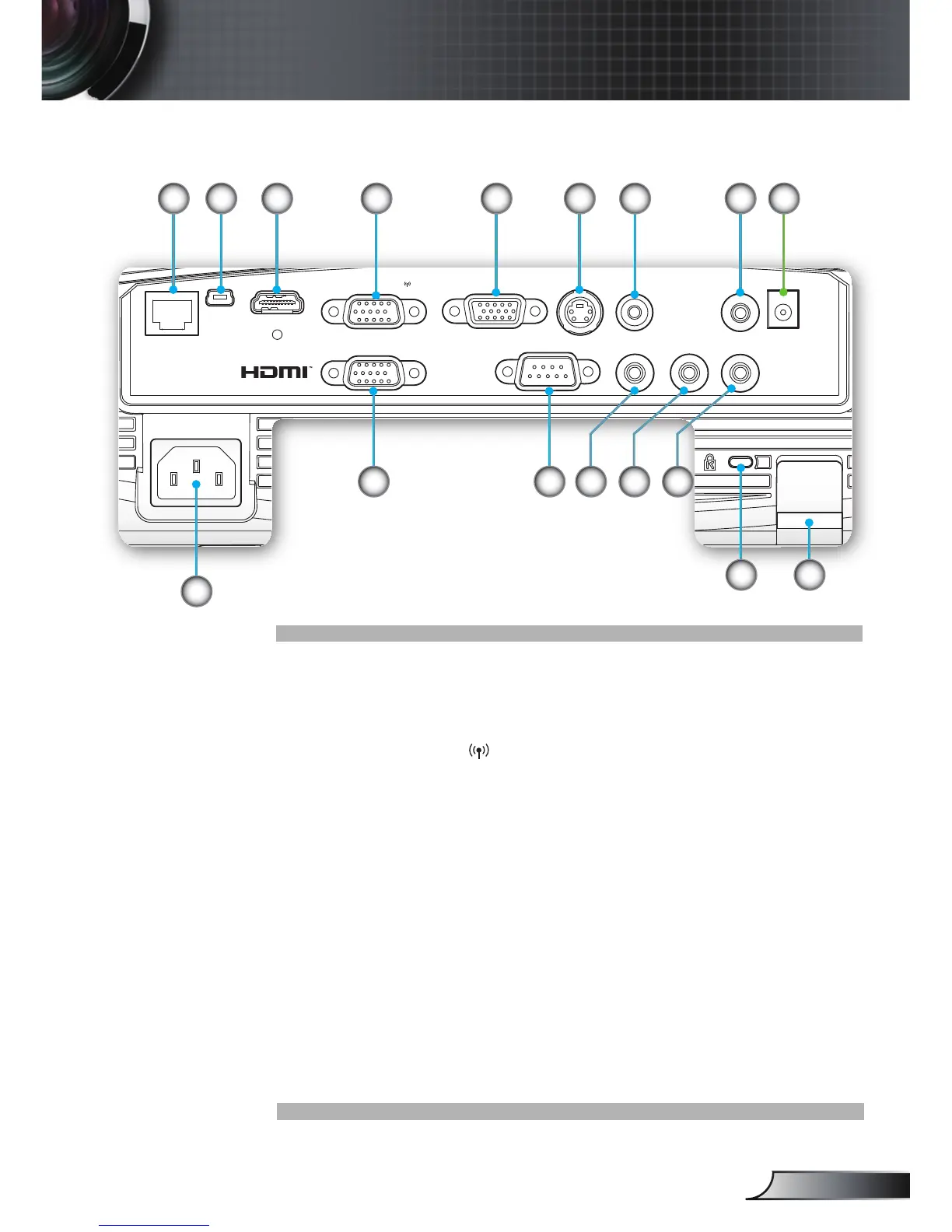

Input / Output Connections
1. RJ45 Networking Connector
2. USB Connector (Connect to PC for Remote Mouse function)
3. HDMI Connector
4. VGA1-In/YPbPr/” ” Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr/
Wireless Dongle)
5. VGA-Out Connector (Monitor Loop-through Output from
VGA1-In)
6. S-Video Input Connector
7. Composite Video Input Connector
8. Audio Output Connector (3.5mm Mini Jack)
7. Power Socket
9. VGA2-In/SCART/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/SCART/
YPbPr)
10. RS-232 Connector (9-pin)
VGA1-IN / YPbPr /
VGA2-IN / SCART / YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
5
9
87642
10 13
14 15
7
1 3 16
1211
