Install the Oracle Database Appliance X6-2-HA DE3-24C Storage Shelf Into a Rack
Chapter4 • Installing the System Into a Rack 71
2.
Open the storage shelf rail kit box and find the cage nut packets included with
the kit, and confirm if your rack uses square or round holes.
The cage nut packets include a special template for either round or square hole racks for
positioning the cage nuts.
Note - The following steps show rail kit installation with a square hole rack. The same steps
would apply for a round hole rack.

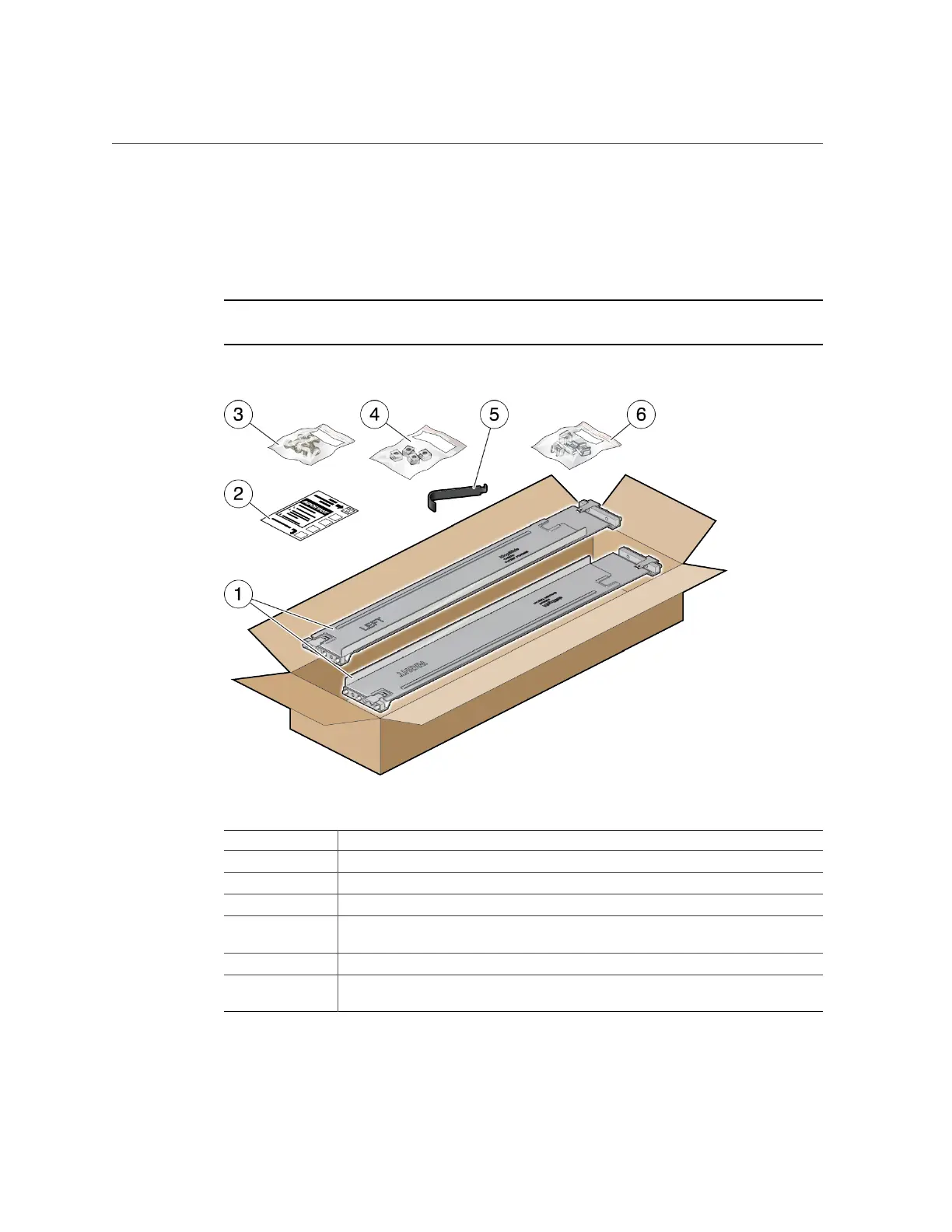

No. Description
1 Two adjustable storage shelf rails
2 Cage nut installation template
3 Six rear 10-32 7mm shipping screws (2 are spares)
4 Four round 7mm 10-32 cage nuts per set (2 are spares). Only one set is required, either square
or round.
5 Cage nut tool
6 Four square 9.5mm 10-32 cage nuts per set (2 are spares). Only one set is required, either
square or round.
3.
Attach the storage shelf rails to the rack, as follows:
To Next Page
