Server Front Panel Components

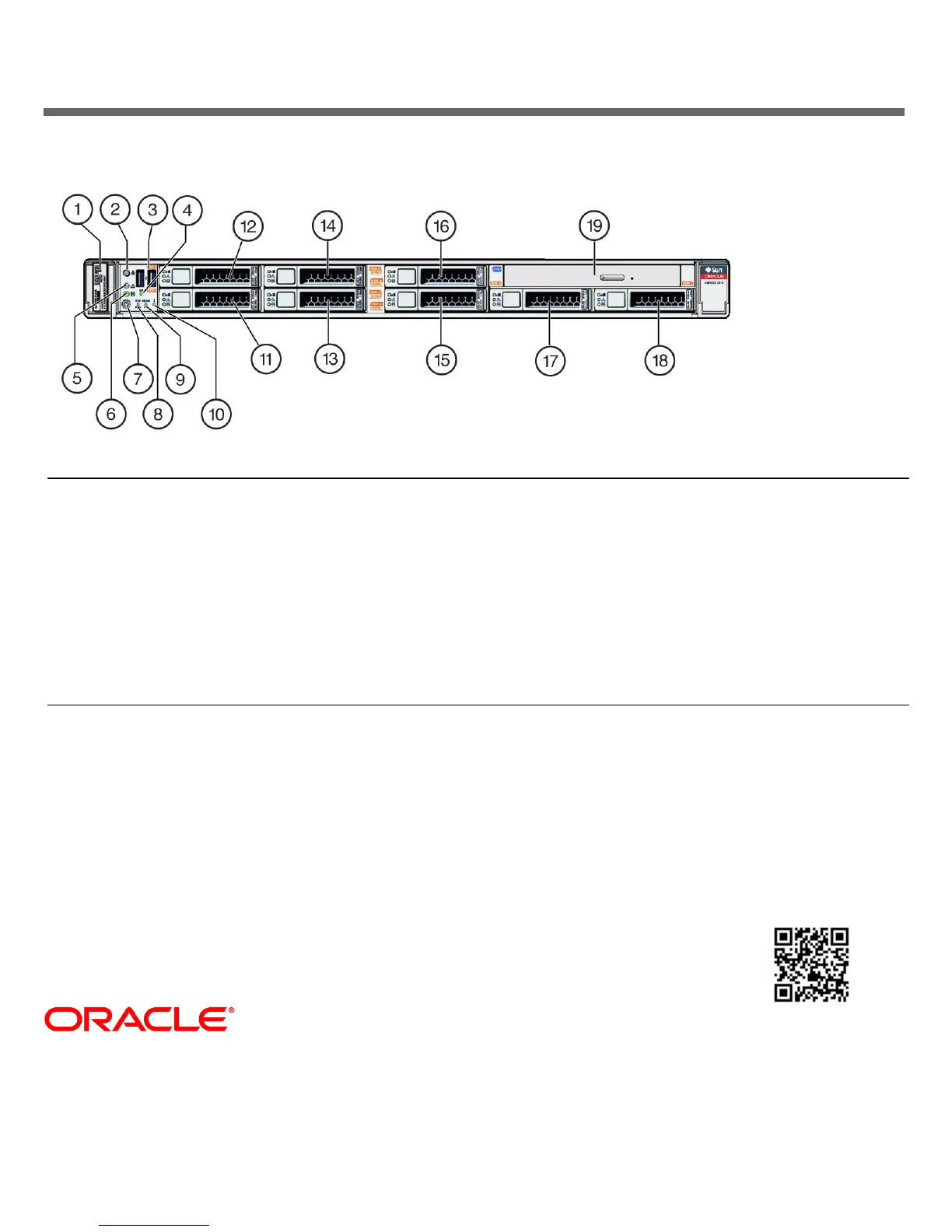

FIGURE 2 Oracle Server X5-2 Front Panel Components
Access to Oracle Support
Oracle customers can access electronic support through My Oracle Support at http://support.oracle.com.
For detailed information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or if you
are hearing impaired, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs.
Figure Leg end
1 Product Serial Number label and Radio
Frequency Identification tag
8 Service Required LED: Top: Fan Module
(amber)
15 Storage drive 4 (optional NVMe SSD)
2 Locator button/Locator LED: white 9 Service Required LED: Rear: Power
Supply (amber)
16 Storage drive 5 (optional NVMe SSD)
3 USB 2.0 connectors (2) 10 Service Required LED: Overtemp Icon:
System Over Temperature Warning
(amber)
17 Storage drive 6
4 SP OK LED: green 11 Storage drive 0 18 Storage drive 7
5 Service Required LED: amber 12 Storage drive 1 19 Optional SATA DVD drive
6 Power/OK LED: green 13 Storage drive 2 (optional NVMe SSD)
7 Power button 14 Storage drive 3 (optional NVMe SSD)
Copyright © 2014, Oracle and/or its affiliates. All rights reserved.
Copyright © 2014, Oracle et/ou ses affiliés. Tous droits réservés.
Part No.: E48313-01
Mfg No.: 7080351
September 2014

Oracle X5-2 Specifications

General

Number of Processors	2
Cores per Processor	Up to 18
Form Factor	2U Rackmount
Processor	Intel Xeon E5-2600 v3
Memory	Up to 768 GB DDR4
Power Supply	1200W
Operating System	Oracle Linux, Oracle Solaris
Network	4 x 10Gb Ethernet ports
