Oracle ZS9-2 - Front Panel Components; System Status Indicators; Operational Controls; Warning and Service Indicators

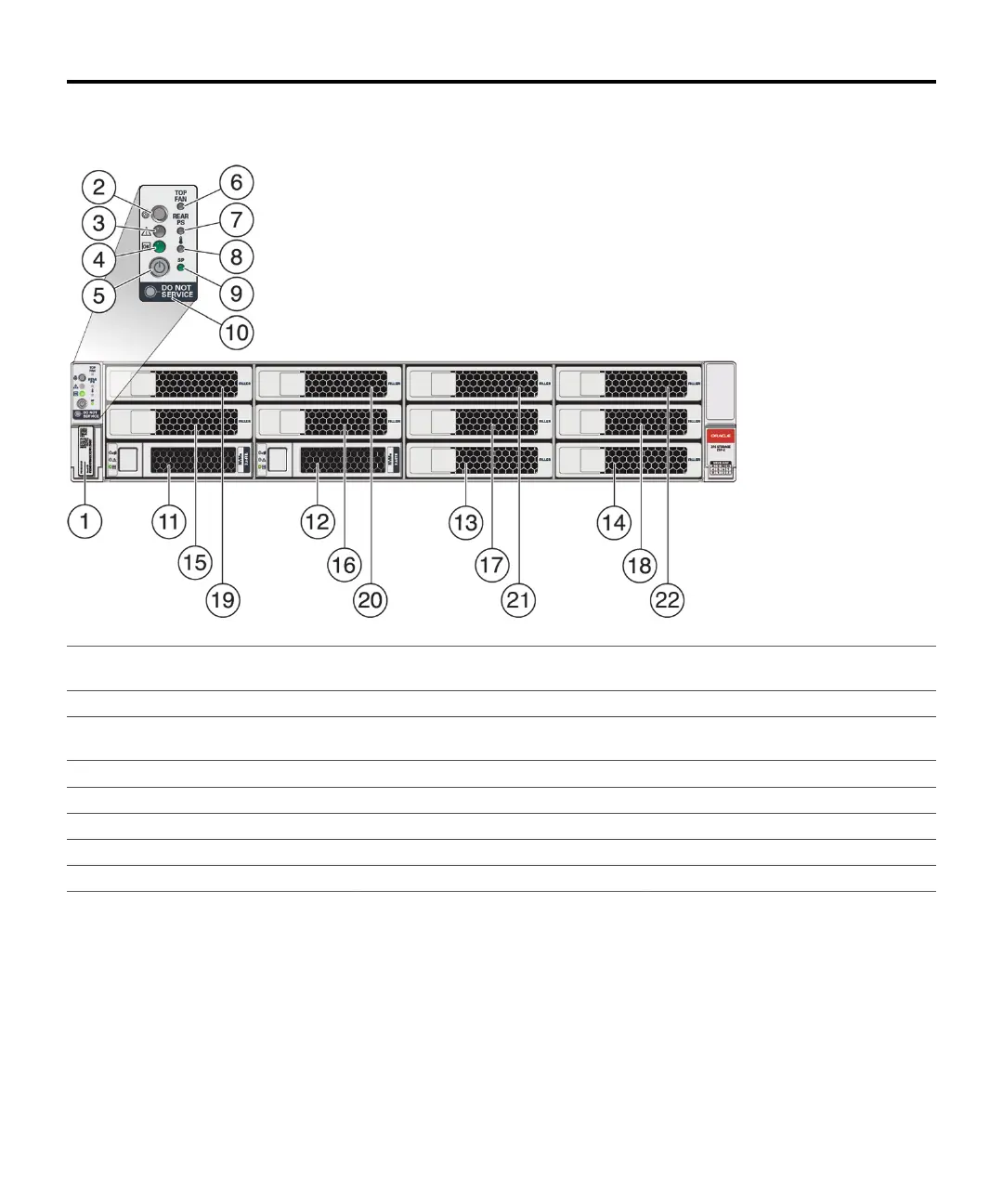

Front Panel Components
1 RFID tag 2 System status LED: Locator (white) 3 System status LED: Service Action
Required (amber)
4 System status LED: Power/OK (green) 5 Power button 6 Fan service action required (amber)
7 Power Supply (PS) service action required
(amber)
8 Over-temperature warning (amber) 9 Service Processor (SP) OK (green)
10 Do Not Service indicator 11 System disk 0 12 System disk 1
13 Filler panel 14 Filler panel 15 Filler panel
16 Filler panel 17 Filler panel 18 Filler panel
19 Filler panel 20 Filler panel 21 Filler panel
22 Filler panel
2
