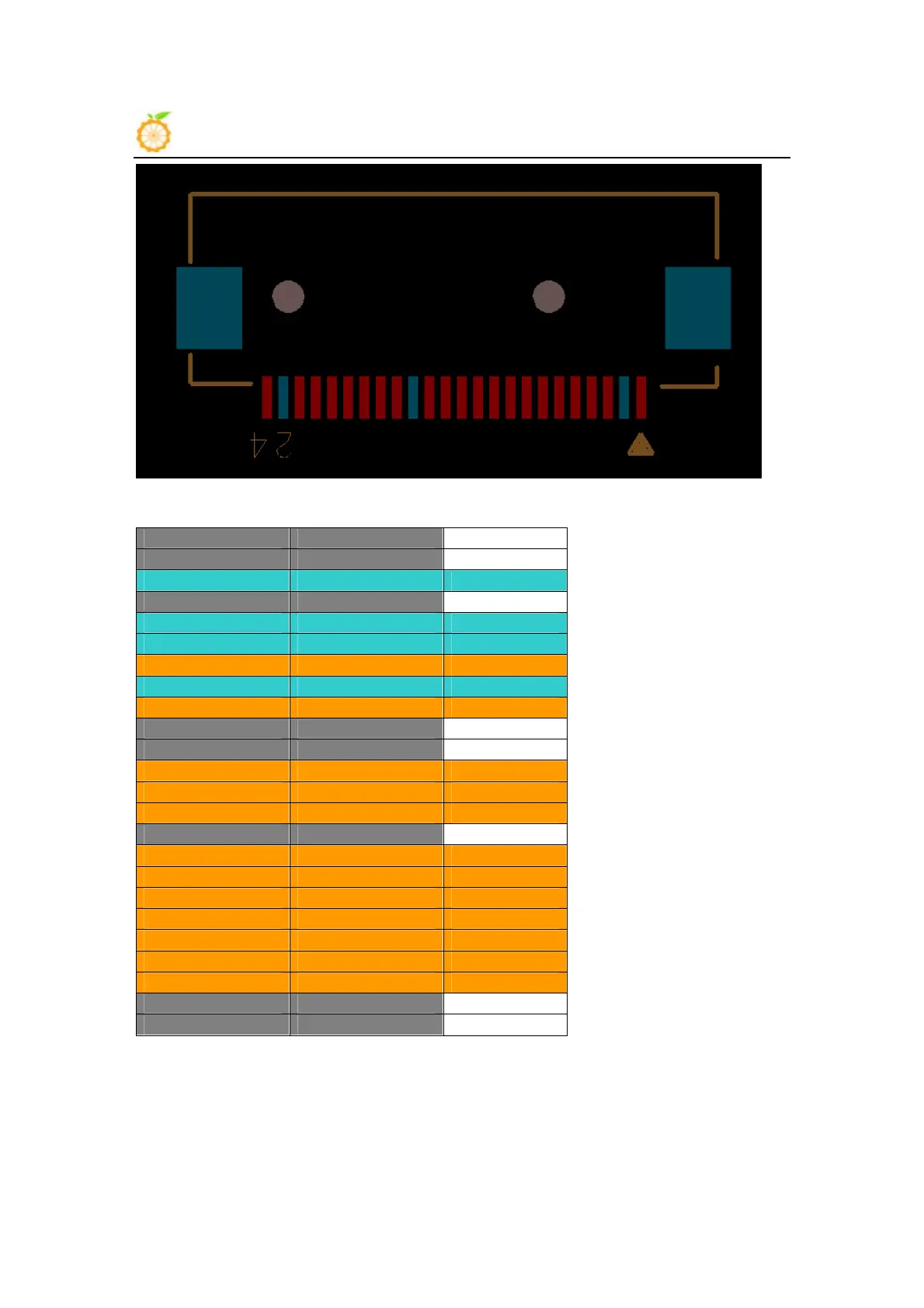

OrangePi PC-CSI
CON1-P01 NC
CON1-P02 GND
CON1-P03 TWI2-SDA PE13
CON1-P04 VCC-CSI
CON1-P05 TWI2-SCK PE12
CON1-P06 CSI-RESET# PE15
CON1-P07 CSI-VSYNC PE3
CON1-P08 CSI-STBY-EN PE15
CON1-P09 CSI-HSYNC PE2
CON1-P10 VDD1V8-CSI
CON1-P11 VCC-CSI
CON1-P12 CSI-D7 PE11
CON1-P13 CSI-MCLK PE1
CON1-P14 CSI-D6 PE10
CON1-P15 GND
CON1-P16 CSI-D5 PE9
CON1-P17 CSI-PCLK PE0
CON1-P18 CSI-D4 PE8
CON1-P19 CSI-D0 PE4
CON1-P20 CSI-D3 PE7
CON1-P21 CSI-D1 PE5
CON1-P22 CSI-D2 PE6
CON1-P23 GND
CON1-P24 AFVCC-CSI
