PANEL FUNCTIONS
SPECIFICATIONS

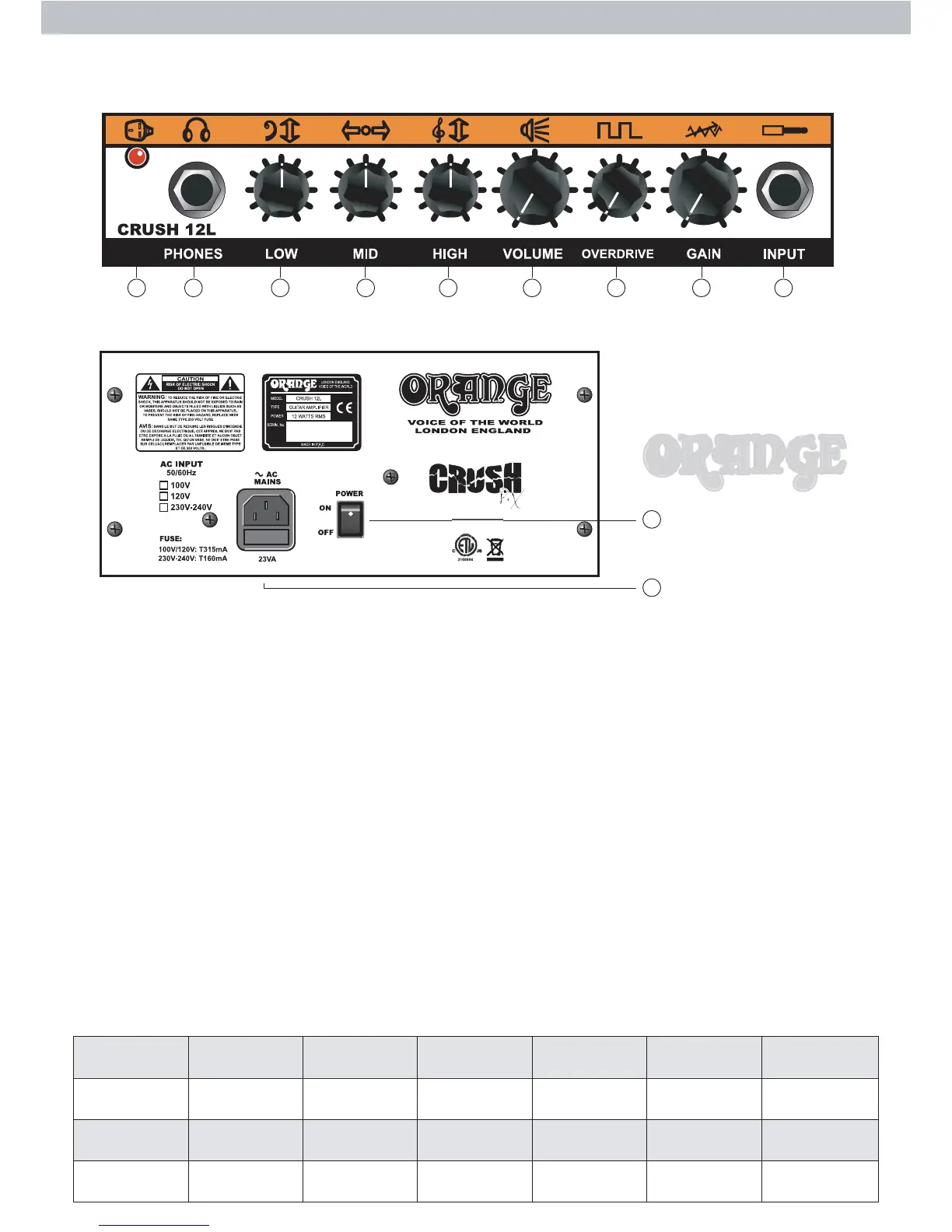

FRONT PANEL
REAR PANEL
FUNCTION DESCRIPTIONS
2- GAIN : This controls pre-gain level.
3- OVERDRIVE : This controls high gain and distortion level.
4- VOLUME : This controls the overall volume of the amplifier.
5- HIGH : Provides high frequency equalization as required.
6- MID : Provides middle frequency equalization with cut and boost.
7- LOW : Provides low frequency equalization as required.
8- HEADPHONE : For use with most stereo headphones.
9- POWER INDICATOR : LED indicates whether the power switch is ON or OFF.
10- AC MAIN POWER SWITCH : This switch turns the AC MAIN Power ON or OFF.
11- AC INLET & FUSEHOLDER : Connect the supplied standard 3-pin 'IEC' plug here.
9 8 7 6 5 4 3 2 1
10
11
OUTPUT POWER SPEAKER INPUT
INPUT SENSITIVITY
NOISE EFFECT
FOOT S/W JACK
&PUSHSWITCH
HEADPHONE
JACK LEVEL
POWER
CONSUMPTION
POWER
REQUIREMENT
DIMENSIONS
(W)X(H)X(D)
WEIGHT CABINET COLOR & FINISH
12Watts RMS
@ 10% THD, 8 ohm
200mV @ 12W
(Headphone Impe. 8 ohm)
100V,120V,230V-
240V, 50/60Hz
11.9x10.5x7 inch
302x267x178 mm
Sturdy
Particleboard
Orange
Leatherette
15mV F=1KHz,
Volumes Tone Controls at Max
1X 6.5" 1 Input -45dB N/A N/A
23VA
11 lbs.(5.2kg)
1- INPUT : Use this jack to connect your guitar to the amplifier by means of a shielded instrument cable.
CAUTION: To avoid possible damage to your hearing, do not use headphones for extended periods of time at extremely loud levels.
