OC ANT+ LEV DISPLAY22 | ORBEA ORBEA | 23 TECHNICAL MANUAL
1. OVERVIEW
The OC (Orbea Components) ANT+ LEV display is de-
signed to be used with Orbea ebikes equipped with the
MAHLE Ebikemotion® X35 system. The head unit pairs to
the system via ANT+ LEV and allows for the visualization
of the system´s information, while also enabling the rider
to change between assist levels from the unit itself. The
system´s most relevant information can thus be accessed
without using the MAHLE Ebikemotion® mobile app.
The use of the MAHLE Ebikemotion® mobile app to record
an activity, navigation and other functions is still possible
while the system is connected via ANT+ to the OC display.
Both connections may be used at the same time, allowing
the rider to enjoy all the functionalities and data visua-
lization without having to mount the smartphone on the
handlebar during the activity.
Other ANT+ sensors can also be connected to the OC
ANT+ head unit for data visualization while riding (caden-
ce, speed, heart rate, etc).
The OC ANT+ LEV display can be used on ebikes from
other brands equipped with an ANT+ ready MAHLE Ebike-
motion® X35 system.
2. X35 SYSTEM
COMPATIBILITY INFORMATION
The OC ANT+ LEV display can only be paired to Orbea
ebikes that are equipped with an ANT+ version of the X35
system.
All X35 equipped Orbea ebikes from MY2020 onwards
have ANT+ LEV connectivity from the factory. If your bicy-
cle belongs to the 2020 or following ranges, the OC ANT+
LEV display can be connected without any updates to your
system. If in doubt of what range your ebike belongs to,
consult with us or with your Orbea distributor.
COMPATIBILITY WITH RANGES
PREVIOUS TO MY2020
Some iterations of the MAHLE Ebikemotion® X35 system
can be updated to gain ANT+ LEV connectivity with the use
of an ANT+ LEV device. Depending on the specic model,
and thus on the system´s conguration on a given bicycle,
the device needed can vary:
ANT+ LEV DONGLE
For Orbea ebikes that do not use the Iwoc Trio handlebar
remote.
The ANT+ LEV dongle is installed within the bicycle´s top
tube, and connected to the Iwoc One remote and the in-
ternal battery.

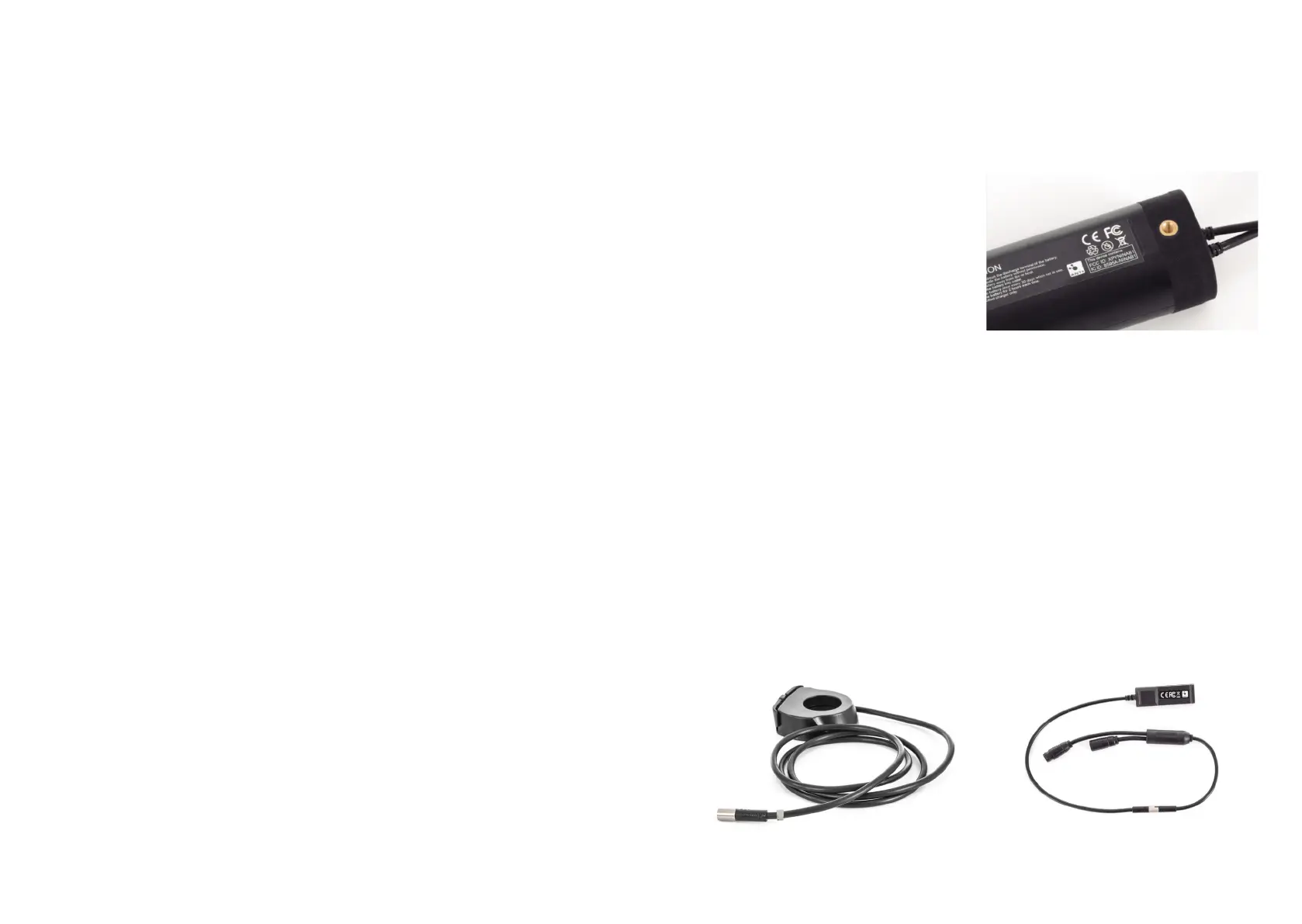

— Iwoc Trio+ — Dongle ANT+ LEV
The compatible models with this device are Orbea Gain M
and Gain D with drop road handlebars.
IWOC TRIO+ REMOTE
For Orbea ebikes that use the Iwoc Trio handlebar remote.
The Iwoc Trio handlebar remote must be replaced with the
new Iwoc Trio+. The Trio+ provides the system with ANT+
LEv connectivity.
The compatible models with this device are Orbea Gain F
(Urban), Optima E and EMX24.
— ANT+ LEV ready X35 battery.
