OC ANT+ LEV DISPLAY24 | ORBEA ORBEA | 25 TECHNICAL MANUAL

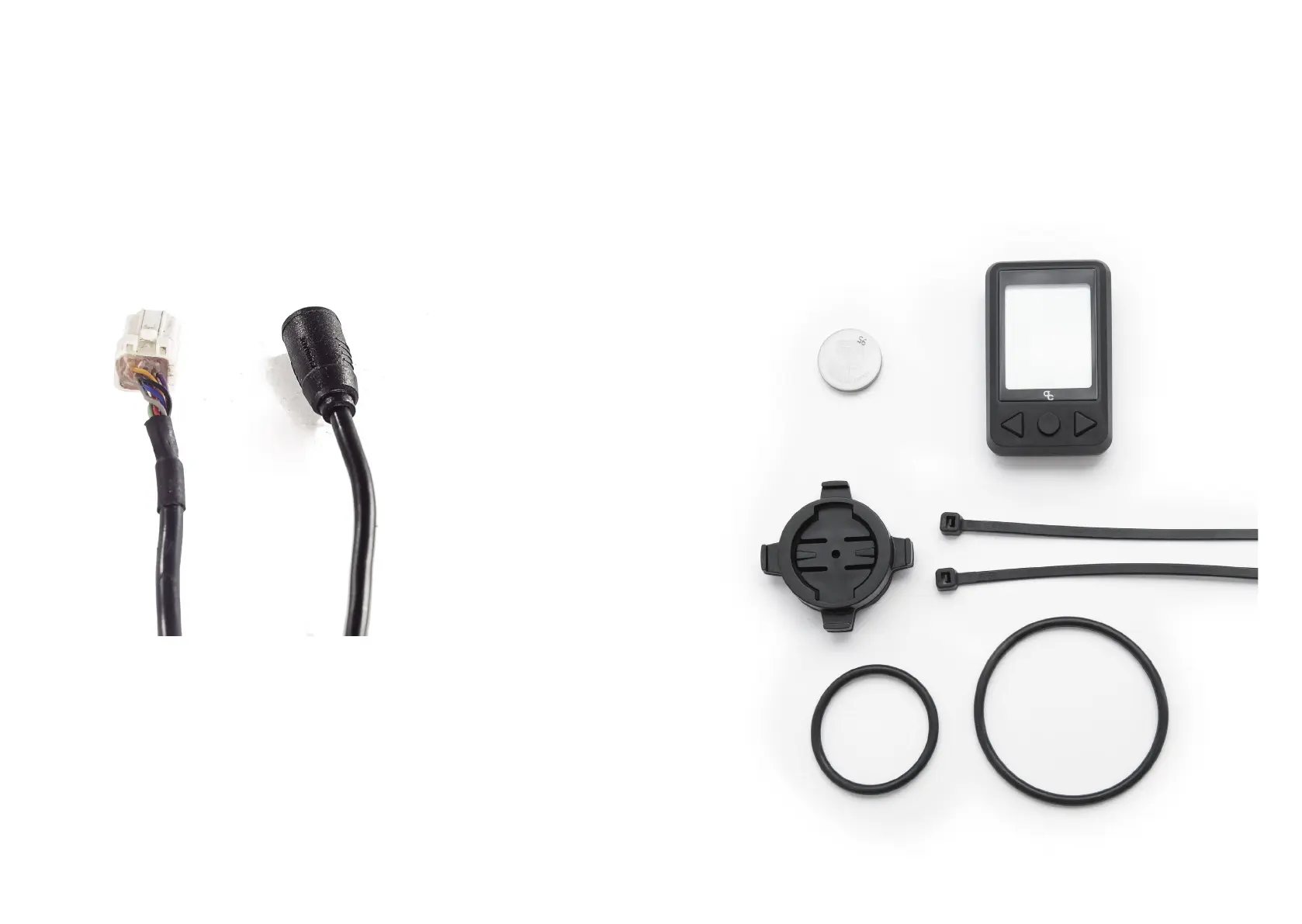

— Hirose DF63 and Cusmade C1206 connectors.
To nd out what type of connectors the X35 system on your Orbea ebike uses, remove
the plastic cover on the underside of the bottom bracket area and locate the cable that
connects the internal battery to the charging point. If the connector between these two
cables is a round Cusmade C1206, the system is compatible with the installation of the
ANT+ LEV dongle or the Iwoc Trio+ remote. If the connector is a square Hirose DF63, the
system cannot be updated to gain ANT+ LEV connectivity without replacing the complete
electric system (internal battery, PASS sensor, charging point and remotes).
If in doubt about what version of the X35 system is installed on your bicycle, contact
Orbea or your distributor.
Consult the ANT+ LEV dongle and Iwoc Trio+ installation and user manual from our web-
site .
Not all versions of the MAHLE Ebikemotion® X35 system can be updated to gain ANT+
LEV connectivity by using the ANT+ LEV dongle or the Iwoc Trio+ remote.
Only versions of the system that use Cusmade C1206 round connectors can be updated
by installing these components. Versions of the X35 system which use Hirose DF63 squa-
re connectors are not compatible with the ANT+ LEV dongle or the Iwoc Trio+ remote.
3. COMPONENTS INCLUDED
- OC ANT+ LEV head unit.
- Mounting bracket with rubber base.
- Rubber xing band.
- CR2032 battery
- Quick guide.
