OC ANT+ LEV DISPLAY26 | ORBEA ORBEA | 27 TECHNICAL MANUAL
4. TECHNICAL
SPECIFICATIONS
Head unit measurements: 60 x 38 x 15mm
Screen measurements: 26 x 33 mm (1,65”)
Weight: 24 gr. (CR2032 battery)
Water resistance: 1 m.
Connectivity: ANT+
ANT+ frequency: 2.4 GHz ANT+®
Connection range: 3 m.
Temperature of use: -10ºC to 60ºC
Battery type: CR2032 (contains perchlorate). Battery included
Battery life: Up to 100 hours aprox.
Conformity: This item complies with standard 1999/5/CE
5. WARNINGS
6. WARRANTY
- Do not submerge or high pressure wash to avoid damage to the electronic components.
- Avoid falls or direct impacts to the components.
- Do not expose to high temperatures.
The OC ANT+ LEV display is covered against manufacturing defects and non-conformity
of the materials for a 2 year period after the purchase of the device or the Orbea bicycle
it was originally purchased with.
Damages derived from incorrect use or installation, impacts and/or not following the
recommendations of use are not covered by the warranty.
In case of a problem with your device, contact your Orbea distributor. You can nd a
complete list of our distributors at www.orbea.com
7. INSTALLATION
The display can be installed either on the handlebar or the stem (if the length of the stem
allows for it). Place the mounting bracket on the stem or handlebar and secure it in place
with the rubber band included so the recess face to the front and the rear of the bicycle
To install the head unit onto the bracket, align the tabs on the back of the display with the
recess on the bracket and turn the unit 90º until it is securely xed in place.
The OC ANT+ LEv display is compatible with Garmin® head units brackets.

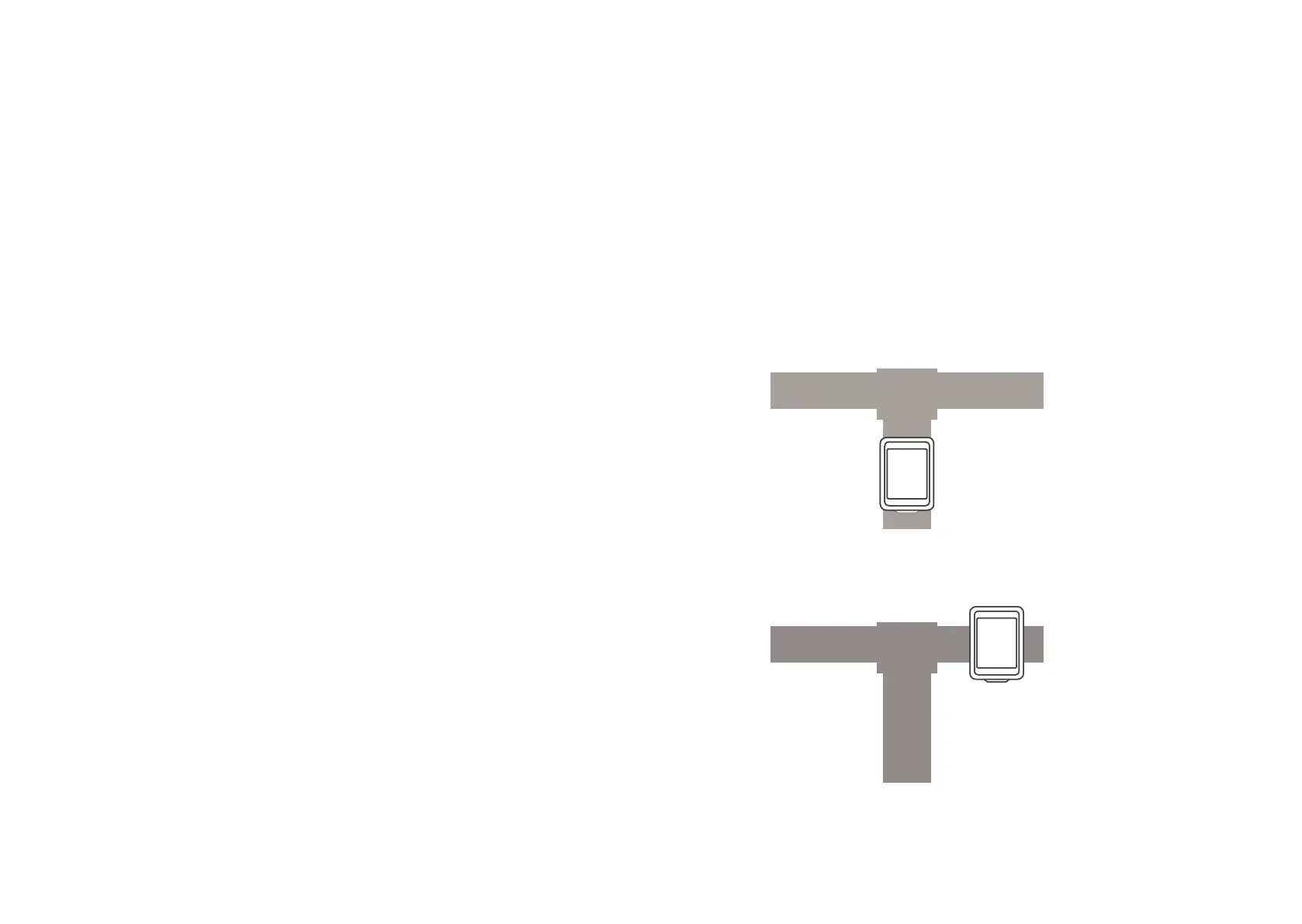

— Installation on handlebar and stem.
