TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202132 | ORBEA ORBEA | 33
EN
MATERIAL ALUMINIUM
Ø STEERER TUBE 1” 1/8
Ø HANDLEBAR 31.8mm
STEERER TUBE CLAMPING HEIGHT
35mm
FRAME
Headtube maximum external Ø 58mm
Headset bearing external Ø
52mm
INTERNAL CABLING
2 gear outers and 2 brake outers
SHIMANO DI2
Internal cabling in stem body
(with internal cabling OC handlebar)
COMPUTER HOLDER
ON FACE PLATE
Max size computer GARMIN 1030
AVAILABLE LENGHTS (L) 80, 90, 100, 110, 120, 130
TILT -8º
HEADSET SPACERS 5mm and 10mm. ORBEA ICR SPECIFIC
TOPCAP Standard round
WEIGHT 220gr (100mm)

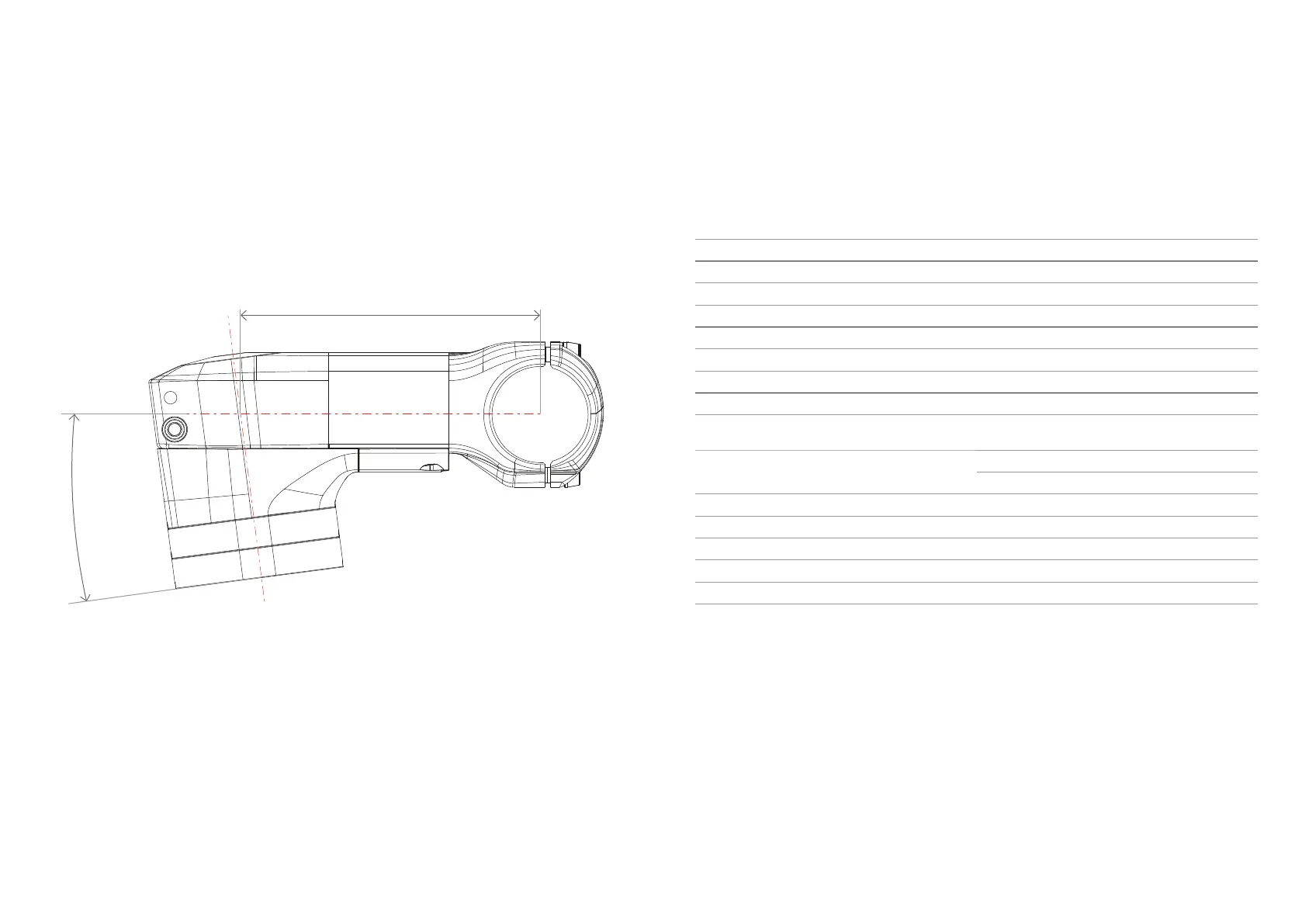

ICR01 ROAD STEM
TILT -8°
L
STEMS
ICR STEMS ASSEMBLIES
ON ORCA OMR
