CABLING
INTERNAL CABLE ROUTING THROUGH HEADSET
AND TOP BEARING ADAPTOR

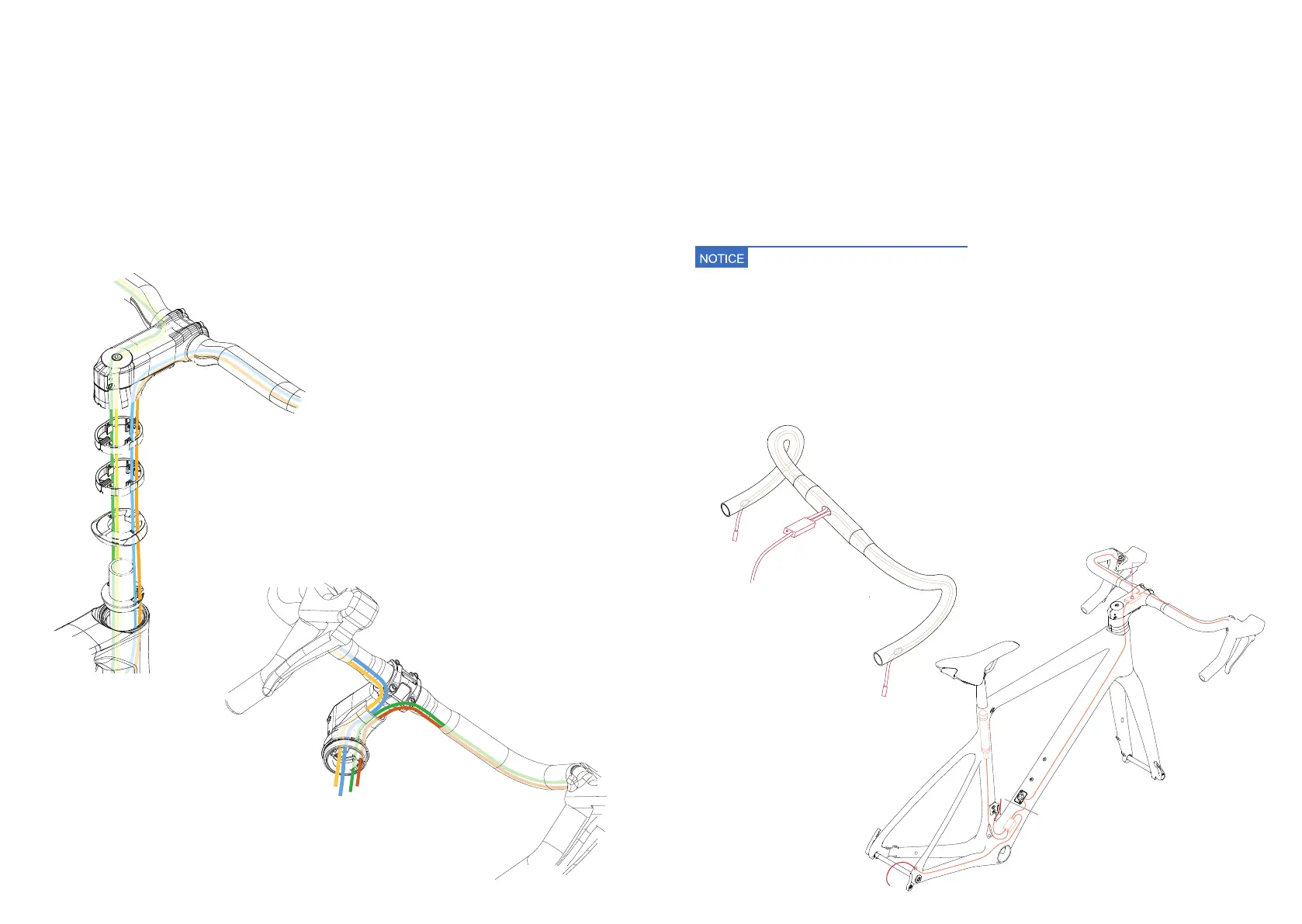

DI2 CABLE ROUTING
EW-RS910
SM-JC41
(inside stem)
To Shimano
DI2 STi lever
SM-JC41
(inside stem)
BT-DN110
EW-RS910
WITH OC1 STEM
WITH ICR01 STEM
Di2 internal cable routing in handlebars OC1 Alloy, OC2
Alloy, OC2 Carbon, OC1 AllRoad Alloy.
Housing the Shimano SM-JC41 Di2 junction
inside the stem is only possible in models
with the ICR01 stem.
In models with the OC1 road stem, the Di2
cables will be routed externally on the hand-
NGDCTCPFVJG&KLWPEVKQPYKNNDGƂZGFWP-
der the stem with the Shimano silicon band.

Orbea ORCA M30 Specifications

General

Frame Material	Carbon
Groupset	Shimano 105 R7000
Brakes	Shimano R7070 hydraulic disc
Shifters	Shimano 105 R7020
Rear Derailleur	Shimano 105 R7000 GS
Front Derailleur	Shimano 105 R7000
Rear Cogs	Shimano 105 R7000 11-30t 11-Speed
Frame	Orbea Orca OMR
Fork	Orbea Orca OMR
Tires	Vittoria Zaffiro V Rigid bead 700x25c
Crankset	Shimano 105 R7000 50x34t
Headset	FSA 1-1/2" Integrated
Stem	Orbea OC2
Seatpost	Orbea OC2
Saddle	Selle Italia Model X
