TECHNICAL MANUAL BLUE PAPER ORCA · OMR 202116 | ORBEA ORBEA | 17
EN

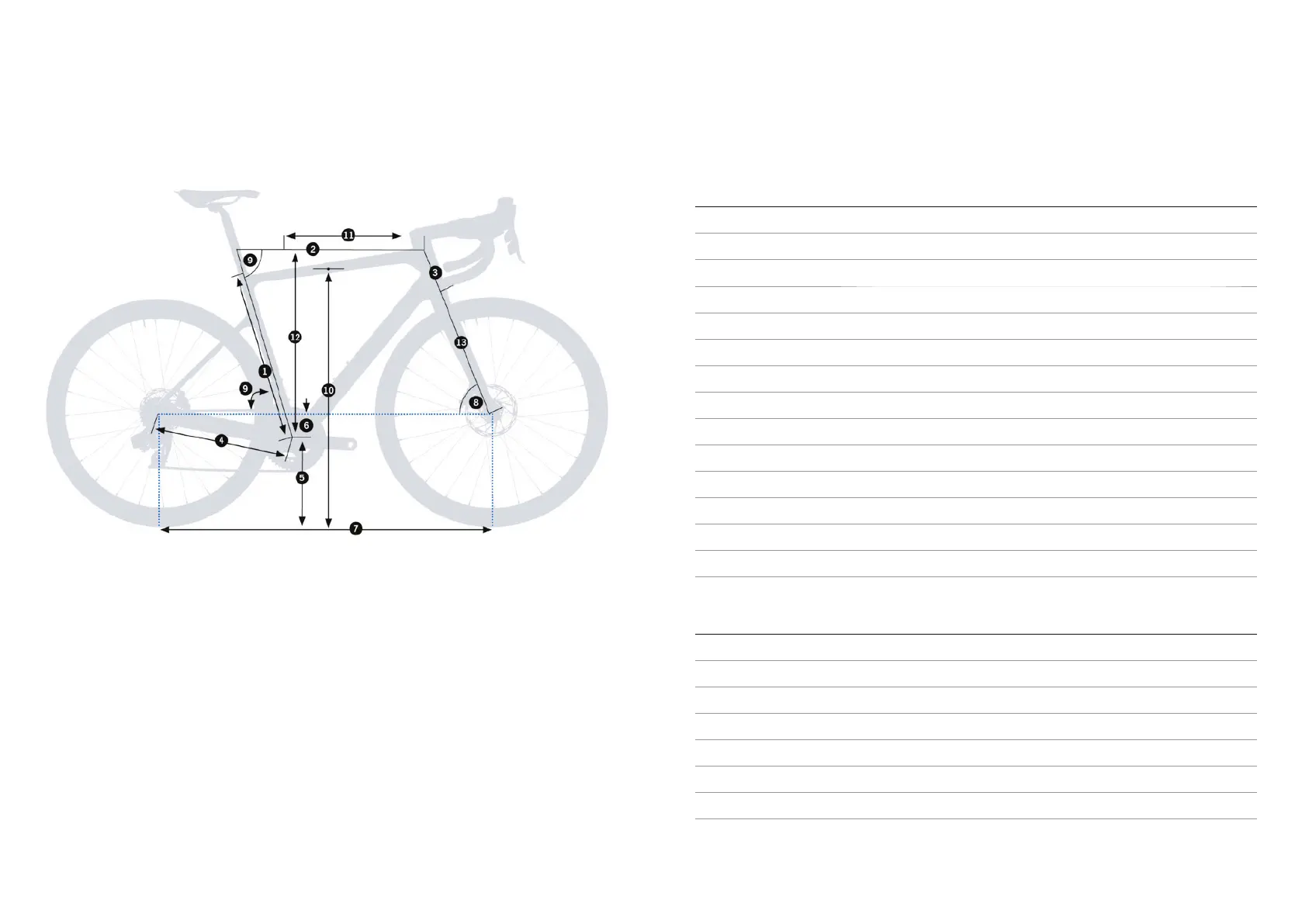

GEOMETRY AND SIZING
ORCA OMR
HEIGHT (CM) HEIGHT (IN) SIZE*
155-160 61.1”-63.0” 47
160-166 63.0”-65.4” 49
167-172 65.7”-67.7” 51
173-179 68.1”-70.5” 53
180-185 70.9”-72.8” 55
186-191 73.2”-75.2” 57
192-207 75.6”-81.5” 60
SIZES 47 49 51 53 55 57 60
1 - Seat Tube (C-T)
440 460 480 500 520 540 570
2 - Top Tube (EFF)
510 523 535 548 560 576 590
3 - Head Tube
105 113 130 148 168 186 213
4 - Chainstay
408 408 408 408 408 408 408
5 - BB Height
267 267 267 269 269 269 269
6 - BB Drop
72 72 72 70 70 70 70
7 - Wheelbase
972 976 980 981 991 1002 1016
8 - Head Angle
71º 71,5º 72,2º 72,8º 73º 73,2º 73,2º
9 - Seat Angle
74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
10 - Standover
735 747 766 787 807 825 851
11 - Reach
367 372 377 382 388 395 401
12 - Stack
513 522 540 559 579 597 623
13 - Fork Length
370 370 370 370 370 370 370
14 - Rake
48 48 48 43 43 43 43
* These sizing measurements are an approximate guide. The most effective method to choose the right size for you is to try the
bicycle at one of our authorized dealers.

Orbea ORCA M30 Specifications

General

Frame Material	Carbon
Groupset	Shimano 105 R7000
Brakes	Shimano R7070 hydraulic disc
Shifters	Shimano 105 R7020
Rear Derailleur	Shimano 105 R7000 GS
Front Derailleur	Shimano 105 R7000
Rear Cogs	Shimano 105 R7000 11-30t 11-Speed
Frame	Orbea Orca OMR
Fork	Orbea Orca OMR
Tires	Vittoria Zaffiro V Rigid bead 700x25c
Crankset	Shimano 105 R7000 50x34t
Headset	FSA 1-1/2" Integrated
Stem	Orbea OC2
Seatpost	Orbea OC2
Saddle	Selle Italia Model X
