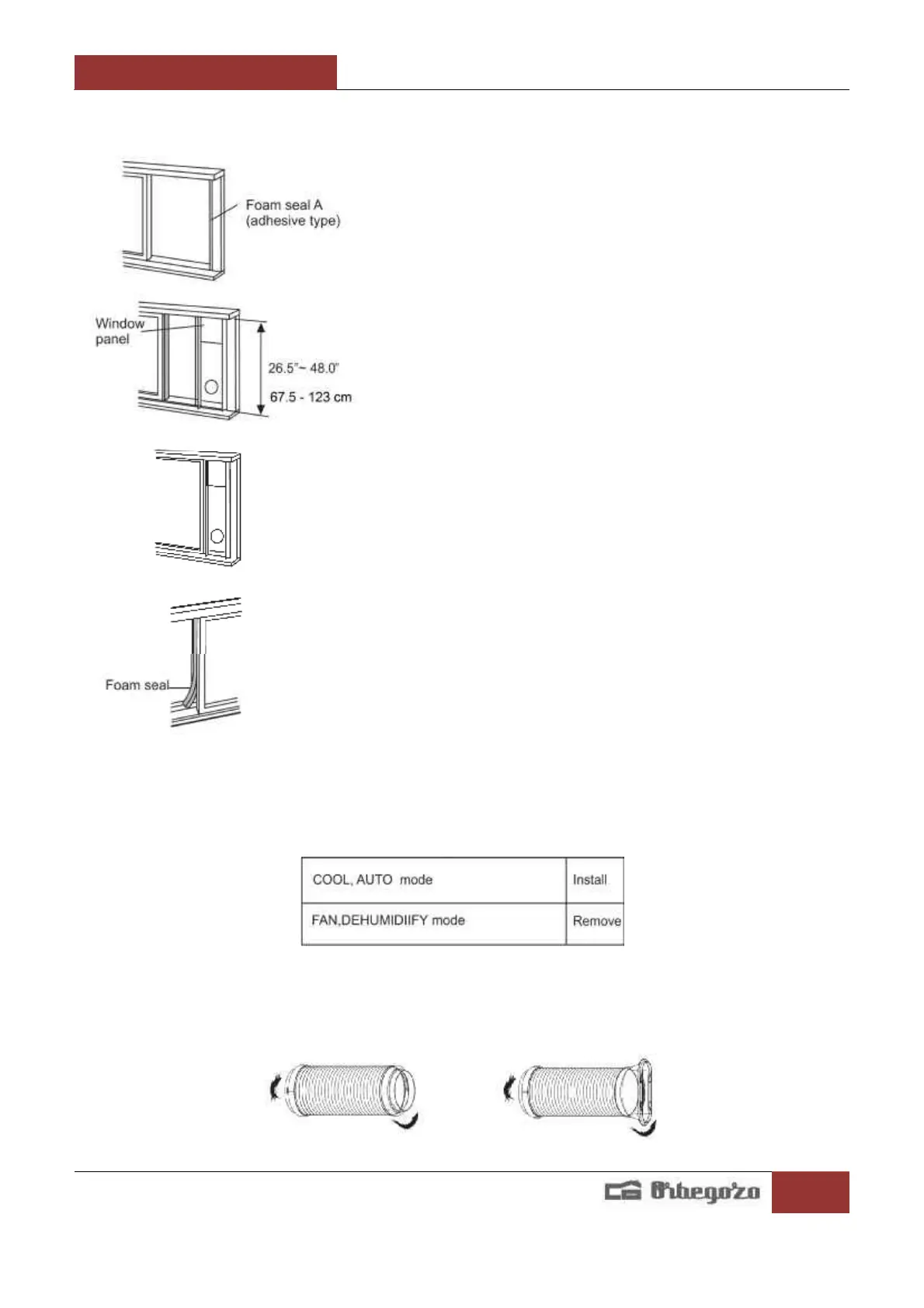

Installation in a sliding sash window
1. Cut the foam seal (adhesive type) to the proper length
and attach it to the window frame.
2. Attach the window slider kit to the window stool. Adjust
the length of the window slider kit according to the width
of window, shorten the adjustable window kit if the width
of window is less than 26.5 inches (67.5 cm). Open the
window sash and place the window slider kit on the
window stool.
3. Cut the foam seal (adhesive type) to the proper length
and attach it on the top of the window.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and seal the
open gap between the top window sash and outer
window sash.
Exhaust hose installation
The exhaust hose and adaptor must be installed or removed in accordance with the usage mode:
1. Install the window Exhaust adaptor B onto the exhaust hose as shown in the pictures. Refer
to the previous pages for window kit installation.
To Next Page
