8
TABLE 2
MINIMUM CLEARANCES REQUIRED FOR MOUNTING
Model
Distance from Sides of Unit
Back of Unit
Distance from Front of Unit
Distance from Top of Unit
Distance to Floor or Floor
Materials
(Carpeting, tile, etc.)
ALL CALORAMA/COMFORT VIEW SERIES UNITS
2" (51 mm)
0" (0 mm)
12" (304 mm)
24" (610 mm)
6,7" (170 mm)
Mounting Template:
A template is furnished in the carton with the unit (See Figure 3). The template illustrates
all of the openings and mounting holes and their correct location for EACH UNIT.
The illustration (Figure 3) gives you the required dimensional information for mounting
the unit, in the event that the template is unusable or lost. The heater has to be mounted
on the wall with the special wall mounting plate provided (See Figure 5). The template
DUE TO HIGH OUTPUT TEMPERATURES AT THE TOP OF THE UNIT,
THE UNIT SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM DRAPERIES.

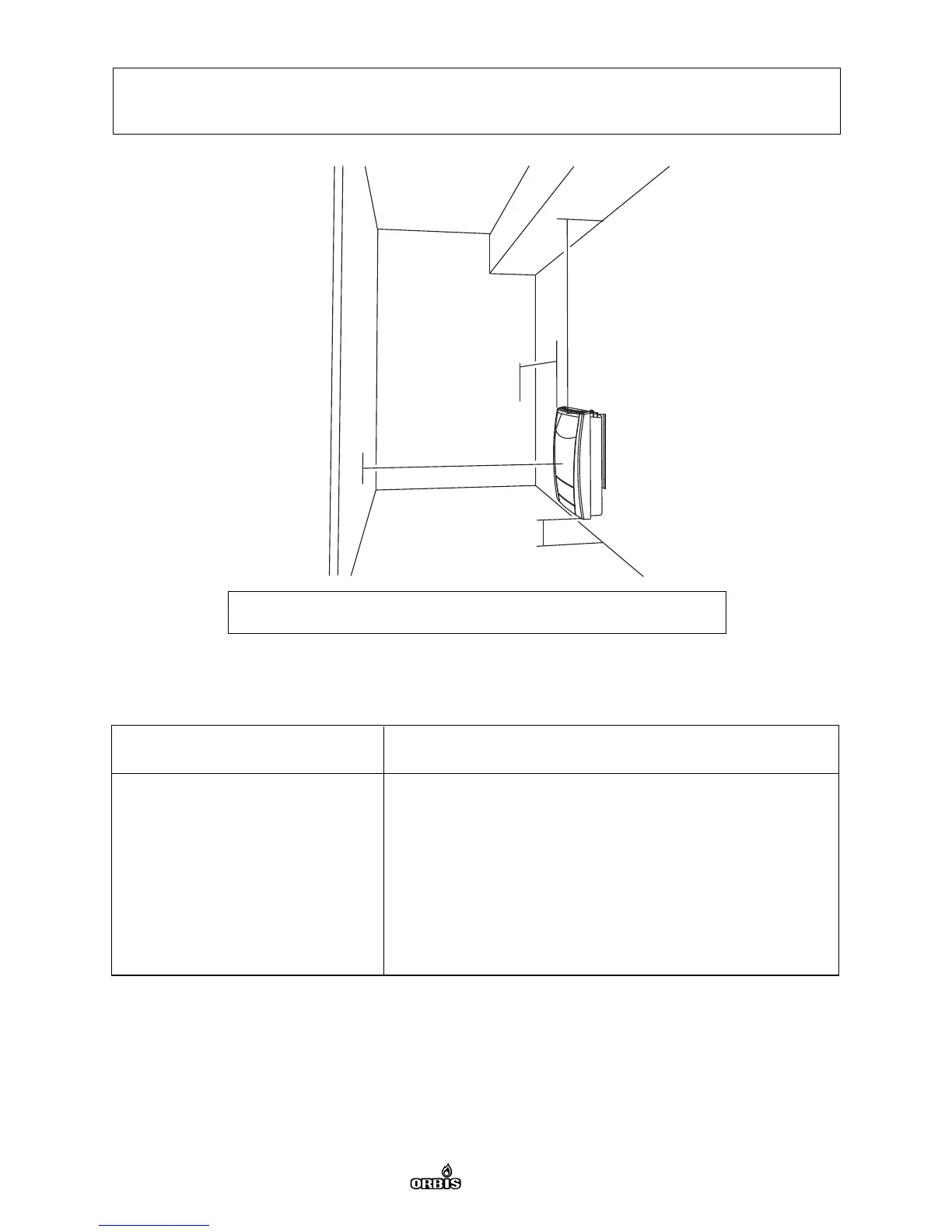

Figure 2: Clearances for Mounting the Heater Itself
6.7” (170mm)
12” (304mm)
2” (51mm)
24” (610mm)
