TECHINCAL FEATURES
Power supply As indicated on the
device
Switching capacity: 16 (10) A / 250 V
Maximum recommended loads:
Incandescent lamps: 3000 W
Uncompensated fluorescent lamps 1200 W
Compensated fluorescent lamps 1200 W 150 μF
Low voltage halogen lamps 1000 VA
Halogens (230 V) 2500 W
Low-consumption lamps 200 W
Contact type and material Changeover AgSnO
2
Power consumption: 6 VA 1 circuit (aprox.1 W)
Action type: 1B, 1S, 1T and 1U
Memory spaces: 32
Type of switchings: ON
OFF
PULSE (from 1 to 59 s)
Switching accuracy: Better than 1 second
Operating accuracy: ≤ ± 1 s/ day at 23 ºC
Power reserve: 4 years (Lithium battery)
at 23 ºC
Operating temperature: - 10 ºC to + 45 ºC
Protection category: IP 20 according to
EN 60529
Protection class: II according to EN 60335
when mounted as
intended
Pollution situation: Normal
Sealable cover

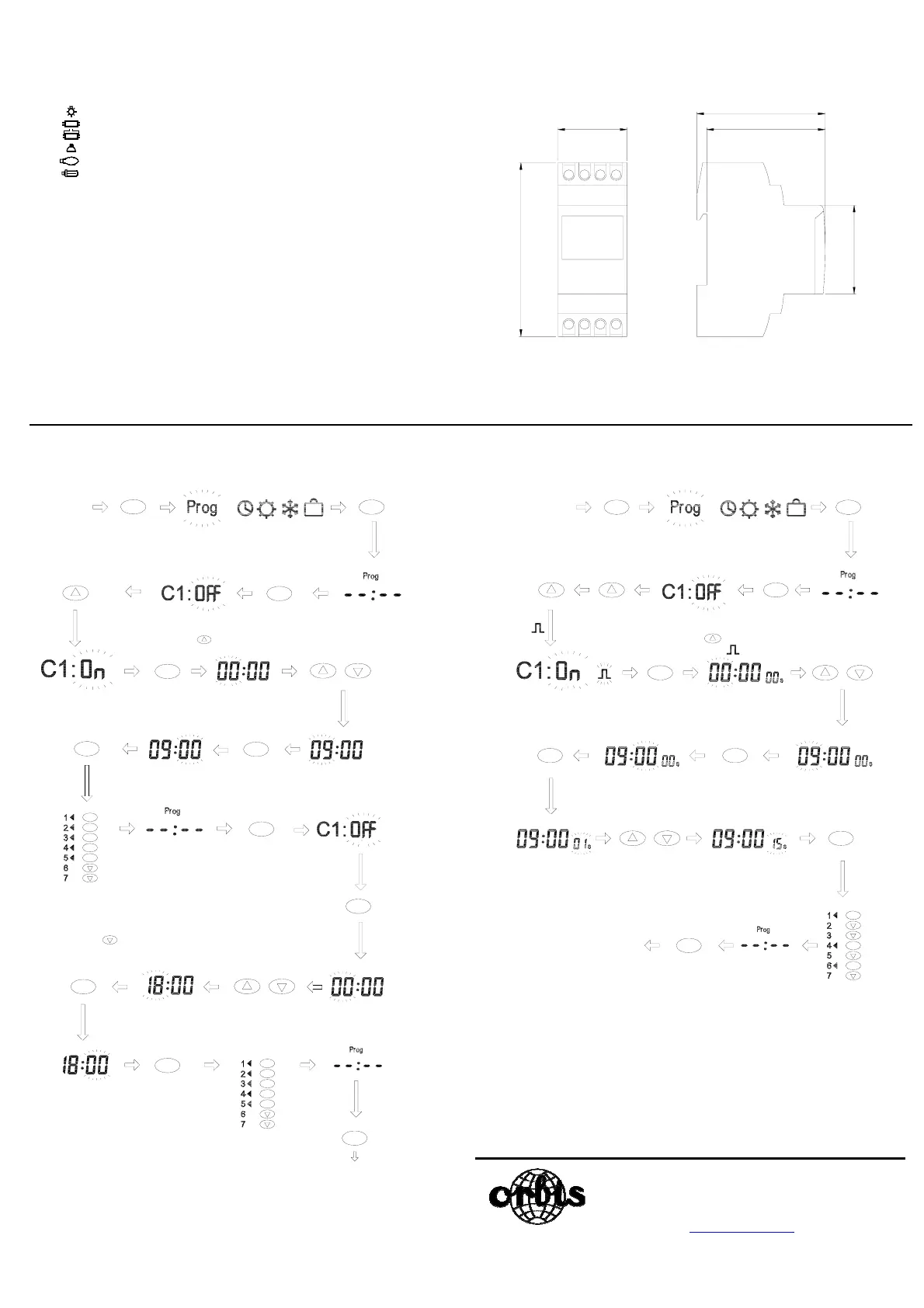

PROGRAMMING EXAMPLE
We want to connect a load from 09:00 to 18:00 from Monday to Friday.
(It is considered that there are no other programming).
DIMENSIONS
PULSE PROGRAMMING EXAMPLE
We want to connect a bell at 09:00 for 15 seconds at Monday, Thursday and
Saturday.
A016.17.52821
ORBIS TECNOLOGIA ELECTRICA, S.A.
Lérida, 61 E-28020 MADRID
Teléfono: +34 91 5672277; Fax: +34 91 5714006
E-mail: info@ orbis.es
http://www.orbis.es
60
65
45
88
35
OK
OK
OK
OK
OK
OK
OK
C
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
NORMAL
MODE
As we want to program an
activation, we press ( )
to change to ON
To program
hour
Select
desired
hour
To program
minutes
To validate
Select the desired
days of week by
pressing OK.
Not select by
pressing ( ).
To program
disconnection
Select desired
hour
To program
hour
To program
minutes
Program the days
of the week
If no more
switching has to
be programmed
NORMAL
MODE
NORMAL
MODE
Press to
see symbol
As we want to
program a pulse,
we press ( ) to
change to ON ( )
Program desired
hour
OK
OK
C
OK
OK
OK
OK
OK
OK
OK
OK
Program desired
minutes
Program pulse length in
seconds
NORMAL
MODE
Select the days
of the week
