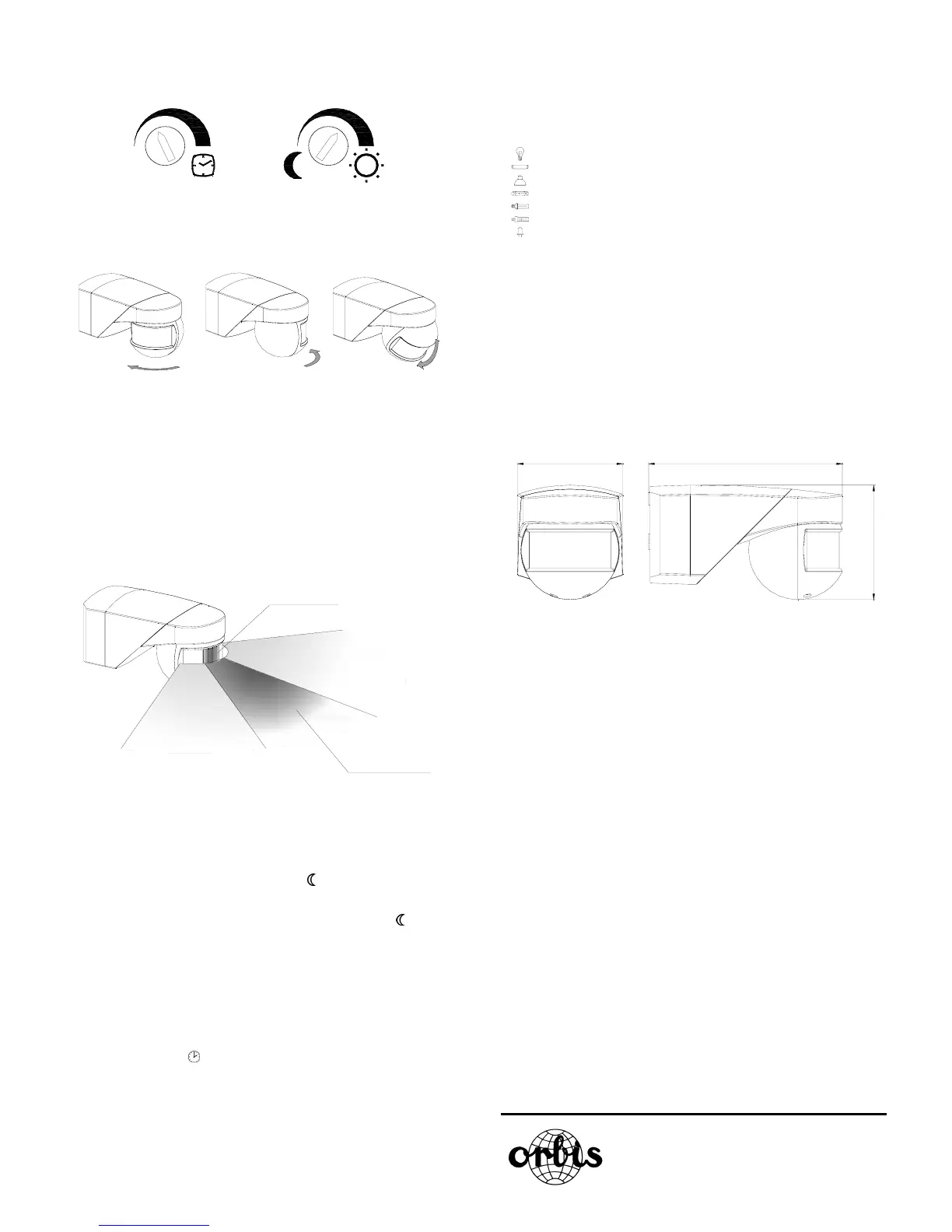

PUTTING INTO OPERATION: ADJUSTMENTS
There are two controls on the MULTIMAT sphere:
ADJUSTING THE DETECTION FIELD
The head is able to rotate horizontally by approximately 180º (do not
attempt to force rotation beyond 180º) and vertically by approximately 45º,
thus moving the detection area as shown in the figure:
The detection field can be adjusted by following these steps:
- Rotate the switch-off delay adjustment to minimum and the ambient
light level adjustment to (☼).
- Check coverage by moving within the detection field limits.
After installation and detection field adjustments, set the ambient light
level and switch-off delay as required.
The MULTIMAT is supplied with detection area limiters. Each limiter is
divided into four sectors that can be cut according to needs. A sector is
excluded by covering the corresponding part of the lens with limiter
adapted to the actual requirements.
ADJUSTING AMBIENT LIGHT LEVEL
The MULTIMAT proximity switch can be adjusted so that it only operates
when ambient light level conditions are below the selected level. By
rotating the ambient light level control to position (☼), it will react under
any lighting conditions. Setting it to position (
) will mean it only reacts
under very low ambient light level conditions.
When the ambient light level conditions are those desired for detection
operation, rotate the ambient light level control to position (
). Then
rotate it slowly to the right until the illumination comes on. When the
MULTIMAT is ready to detect (the ambient light level is below the adjusted
value), the internal LED will flash every three seconds.
For the changes made to take effect in the potentiometers in the
adjustment of the equipment, it is necessary to get out from the
detection area and wait for the installation to be turned off.
ADJUSTING THE SWITCH-OFF DELAY
By rotating the control ( ), the switch-off delay is as follows:
- Minimum switch-off delay time: 3 seconds
- Maximum switch-off delay time: 30 minutes.
This time is reset for each detection operation.
Detection sensitivity may be reduced if the temperature of the object
to be detected is close to the ambient temperature.
When the MULTIMAT delay time ends, there is a two-second period
of inactivity during which it does not detect.
OPERATING MODE
- The unit enters normal operation thirty seconds after being switched
on.
TECHNICAL SPECIFICATIONS
Power supply 230 V 50 Hz.
Breaking power
μ 10 A 230 V~ cos ϕ=1
Maximum recommended loads
Incandescent lamps 2000 W
Fluorescent tubes 1000 VA
Low voltage halogen (12 Vac) 2000 VA
Halogen (230 Vac) 2000 W
Low consumption lamps (CFL) 1000 VA
Low consumption lamps (Downlights) 900 VA
Led lamps 1000 VA
Self consumption 8.5 VA (1.5 W approx.)
Ambient lighting level range 5-30-2000 Lux.
Timer range from 3 s to 30 min. approx.
Detection angle 200º
Detection field Front: 12 metres to 20 ºC.
Lateral: 8 metres to 20 ºC.
Operating temperature -20 ºC to +40 ºC
Protection type IP 55 by EN 60529.
Protection class Class II by EN 60669
under correct installation
conditions.
DIMENSIONS
01_2012 A016.13.54464
ORBIS TECNOLOGIA ELECTRICA, S.A.
Lérida, 61 E-28020 MADRID
Telephone: +34 91 5672277; Fax: +34 91 5714006
E-mail: info@ orbis.es
http://www.orbis.es
DELAY TIME
ADJUSTMENT
AMBIENT LIGHTING
LEVEL ADJUSTMENT
BLOCKED DETECTION
FIELD
DETECTION FIELD
LIMITER
133
72
80
