1. Manual Test Stem
Pushing downward on stem tests
transmitter communication with
the receiver.
2. Rain Fall Adjustment Cap –
Range adjustable from 1/8" to 1"
(3mm to 25mm). This setting will
prevent watering when rainfall
reaches the setting.
3. Vent Ring
An adjustable ring designed to
control the rain delay duration.
4. Communication Antenna
Transmits a wireless signal (up to
200’) to the Rain/Freeze receiver.
5. Mounting Brackets
Attach to gutter or flat surface
5
ENGLISH
4
Feature Control Switch
Located on the bottom of the transmitter,
the 3 position control switch allows you to
select Rain Sensor, Rain/Freeze Sensor
and Sensor Off (See figure 2).

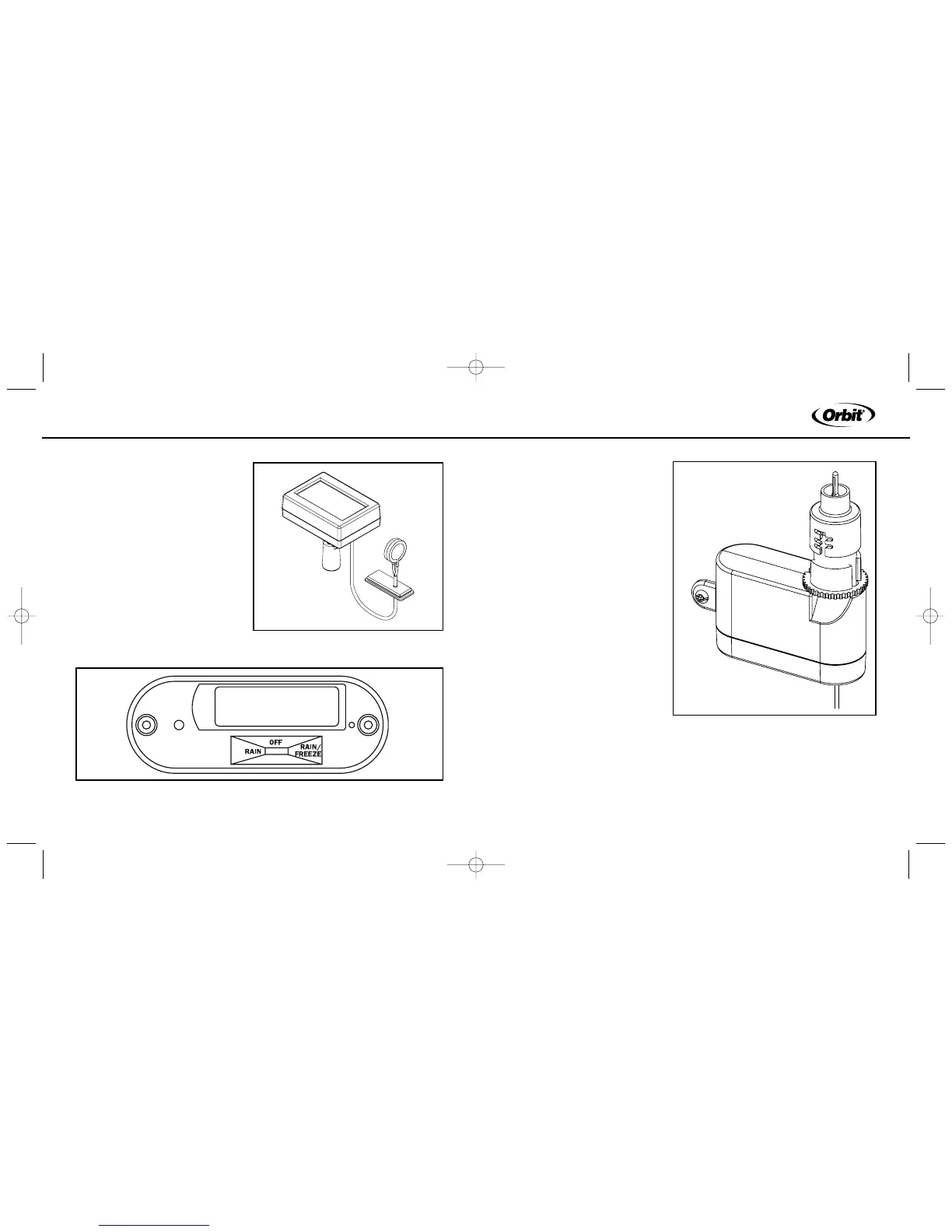

Figure 2: Bottom view of Sensor/Transmitter
Figure 1: Solar cell with rechargeable battery
